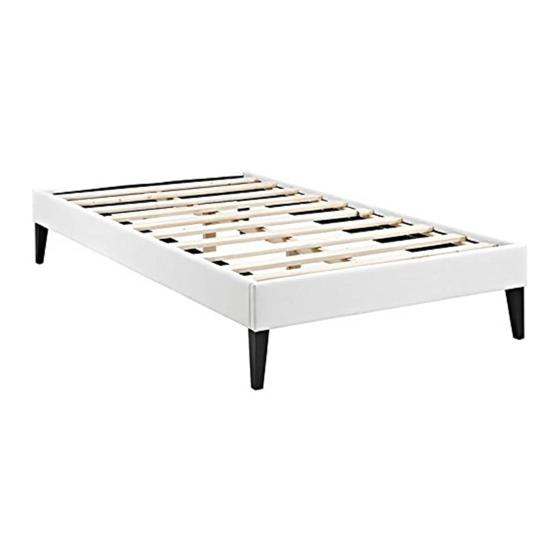

Thank you for purchasing the MOD-5347/5348/5349/5350/5351/5352 TWIN/FULL/QUEEN BED FRAME！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bed frame, we recommend that it is assembled by two adults, on a carpeted
or padded area, in the room that it is intended for. Approx assembly time: 45 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
Component:
1
Short Board
x2
Ⅰ
5
Leg
x2
Customer Service 908-368-1025︱www.modwayfurniture.com
BED FRAME
1
5
6
2
2
Long Board
Ⅱ
6
Leg
Hardware:
A
B
C
D
E
F
G
H
J
K
8
2
3
4
1
5
3
x2
Center Rail
7
Slats
x2
Bolt M8x25mm
Bolt M6x45mm
Screw M4x35mm
Flat Washer M6
Flat Washer M8
Spring Washer M8
Allen Wrench M4
Allen Wrench M5
Connect Plate
Screw M4x20mm
PHILLIPHS HEAD SCREW DRIVER
NOT PROVIDED
7
6
4
x1
Support Leg
8
Metal Corner Plate x4
x10
x16
x16
x14
x16
x16
x16
x1
x1
x4
x16
x2
Page 1 of 6
