Summary of Contents for modway MOD-5347

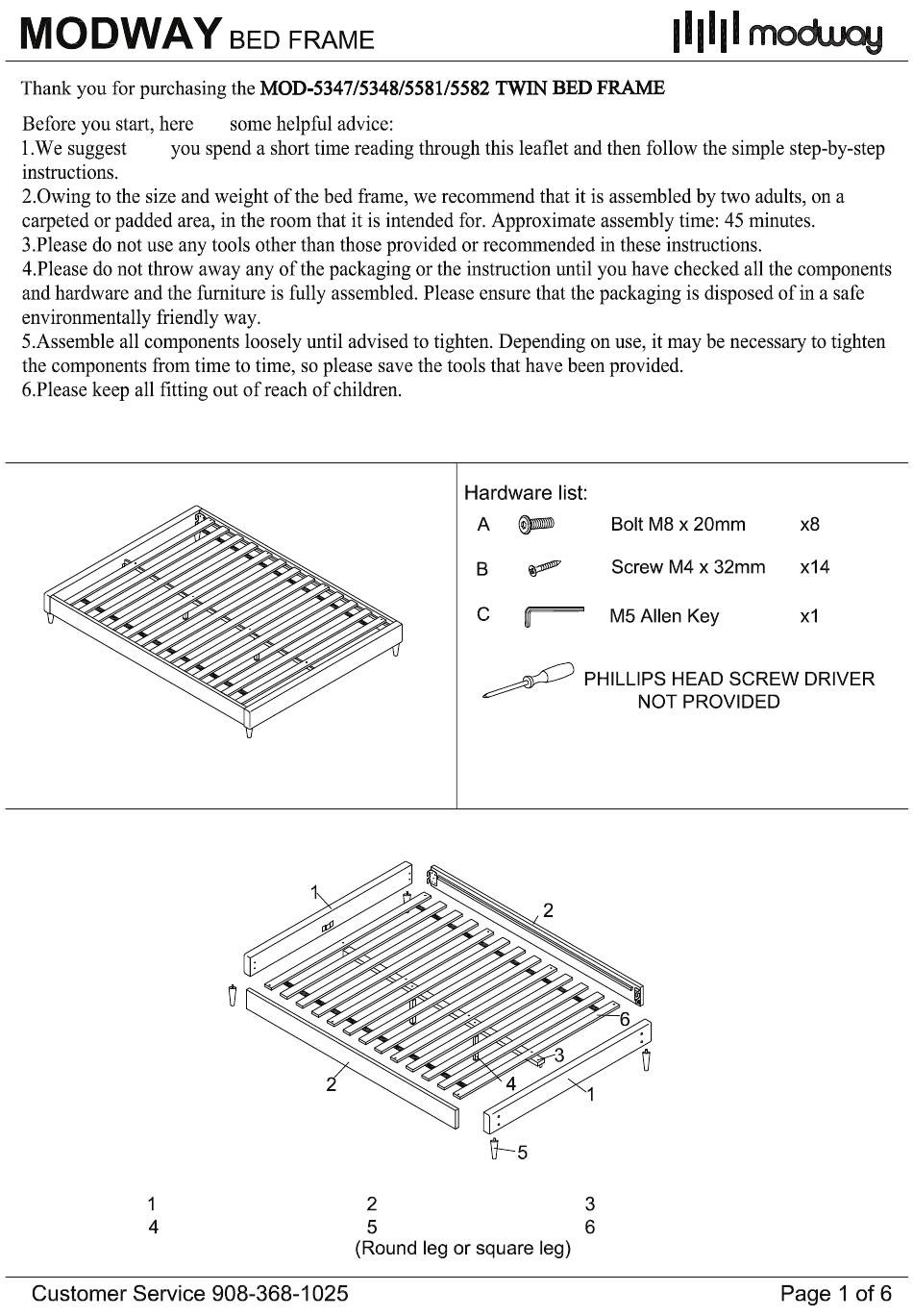

- Page 1 Components: Short Board Center Rail Long Board Support Legs x2 Legs Roll Slats WWW.MODWAY.COM...
- Page 2 Attach them by using 4 pieces of Bolt (A) as shown. Use Allen Wrench (C) to tighten the Bolts (A) clockwise until secure. Repeat the same steps for the remaining 1 piece of Long Board (2). A x 8 C x 1 WWW.MODWAY.COM...
- Page 3 Support Leg (4) to the Center Rail (3) with pre-set T-nut as shown. Tighten the Secure 2 pieces of Support leg (4) clockwise until secure. Insert Center Rail (3) to the bracket (provided) on Short Board (1) and then secure with 1 piece Screw (B) per each end.
- Page 4 Secure 4 pieces of Screw (B) into the Slat (6) on the top of Center Rail (3) as shown. Tighten the Screws (B) with Phillips Head Screw Driver (not provided). B x 4 Assembly is complete. The bed frame is ready to use now! Hardware may loosen over time. Periodically check that all connections are tight. WWW.MODWAY.COM...
- Page 5 CONNECTING BED FRAME TO HEADBOARD Reminder: All the hardware packed in the Headboard you bought. Please use only the above hardware from Headboard Hardware Package to assemble the Bed Frame and Headboard. WWW.MODWAY.COM...
- Page 6 CONNECTING BED FRAME TO HEADBOARD WWW.MODWAY.COM...
