modway MOD-6004 Quick Start Manual

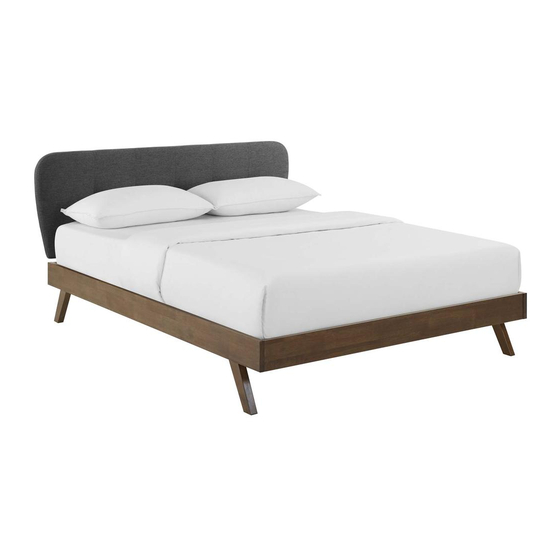

MOD - 6004 QUEEN BED
Thank you for purchasing the MODWAY BED!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.
2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save tools that have been provided.
6. Please keep all fitting out of reach of children.
Component:
A.
HEADBOARD x 1
B. x 1
HEADBOARD PANEL
C. FOOTBOARD x 1
D.
SIDE RAIL (L&R) x 2
E.
LEG x 4
F. CENTER RAIL x 1
G. CENTER SUPPORT LEG x 3
H. BED SLAT x 1
I. HEADBORAD SUPPORT x 1
Hardware:
1
2
3
4
5
6
7
8
9
10
H
F
G D
C
JCBB BOLT M8 x 16
JCBB BOLT M8 x 35
JCBB BOLT M8 x 50
JCBB BOLT M8 x 60
JCBB BOLT M8 x 70
FLAT WASHER M8
SPRING WASHER M8
WOOD SCREW M4 x 32mm
WOOD DOWEL M10 X 30mm
M5 ALLEN KEY (BALL SHAPE)
A
B
E
8 PCS
8 PCS
2 PCS
2 PCS
4 PCS
16 PCS
16 PCS
9 PC
8 PCS
1 PC
I
01 of 07
