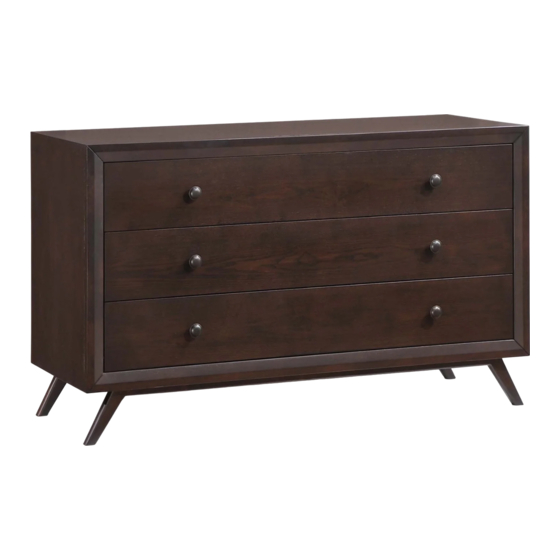

modway Tracy MOD-5241 Manual

MOD-5241
Thank you for purchasing the MODWAY DRESSER(WITH MIRROR SUPPORT) !
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the nightstand, we recommed that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time :30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe and
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
Component :
Customer Service 908-368-1025 www.modway.com
1- DRESSER
2- DRESSER LEGS
Hardware for Dresser
A
B
C
D
E
F
G
H
1
JCBC SCREW M6 X 30MM
SPRING WASHER 1/4''
M4 ALLEN KEY (BALL SHAPE)LONG
WALL SCREW M4 x 18MM
WALL SCREW M4 x 50MM
L- BRACKET
BELT
FELT PROTECTOR
x8
x8
x1
x1
x1
x2
x1
x4
2
Page 1/4
