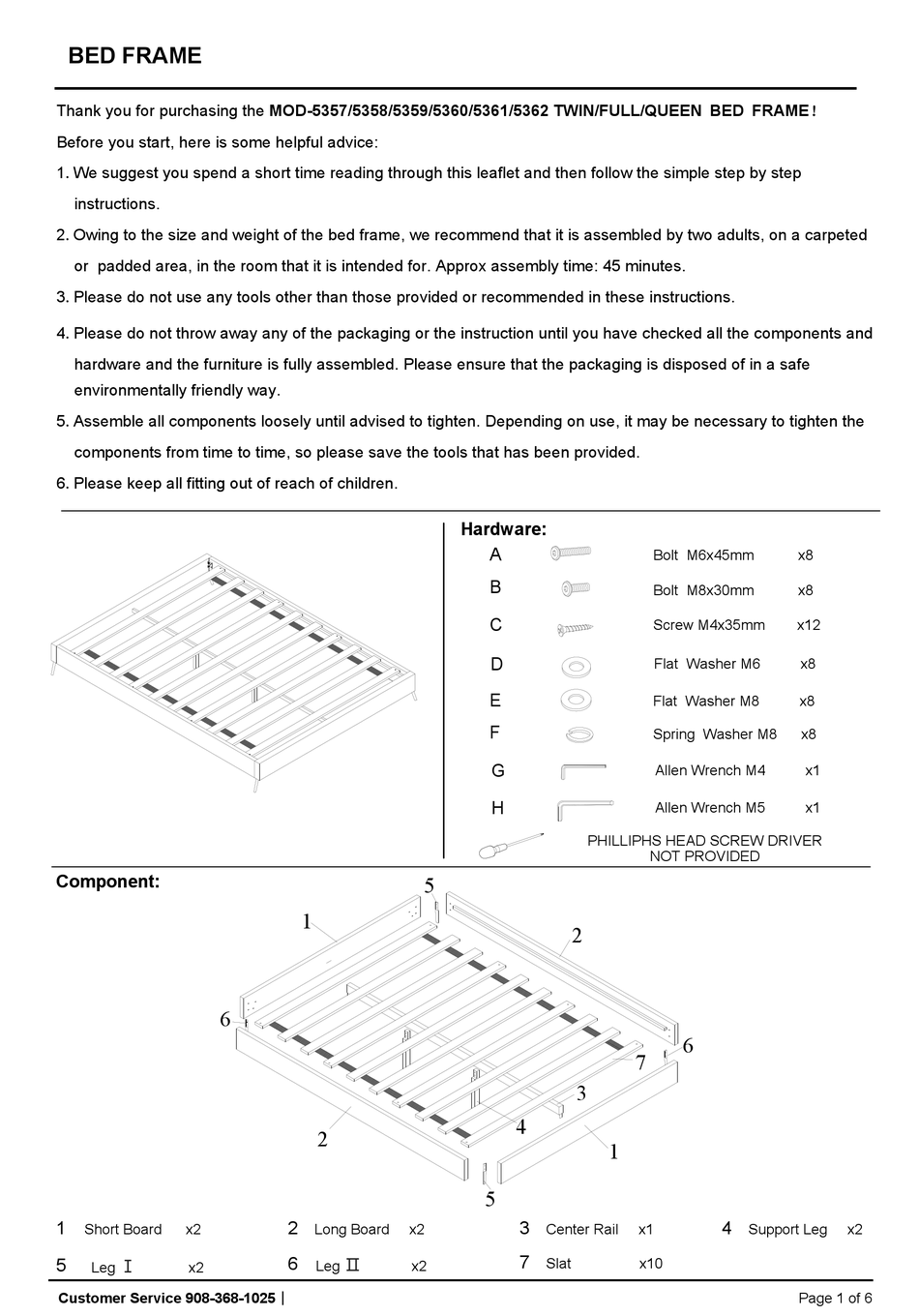

BED FRAME
Thank you for purchasing the MOD-5357/5358/5359/5360/5361/5362 TWIN/FULL/QUEEN BED FRAME！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bed frame, we recommend that it is assembled by two adults, on a carpeted
or padded area, in the room that it is intended for. Approx assembly time: 45 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
Component:
6
1
Short Board x2
5 Ⅰ
Leg
x2
Customer Service 908-368-1025︱
Hardware:
5
1
2
2
Long Board x2
Ⅱ
6
Leg x2
A
Bolt M6x45mm
B
Bolt M8x30mm
C
Screw M4x35mm
D
Flat Washer M6
E
Flat Washer M8
F
Spring Washer M8
G
Allen Wrench M4
H
Allen Wrench M5
PHILLIPHS HEAD SCREW DRIVER
NOT PROVIDED
2
7
3
4
1
5
3
Center Rail x1
7
Slat x10
x8
x8
x12
x8
x8
x8
x1
x1
6
4
Support Leg x2
Page 1 of 6
