MOD-5421/5422/5423/5424/5425/5426
Thank you for purchasing the MODWAY BED！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 45 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.

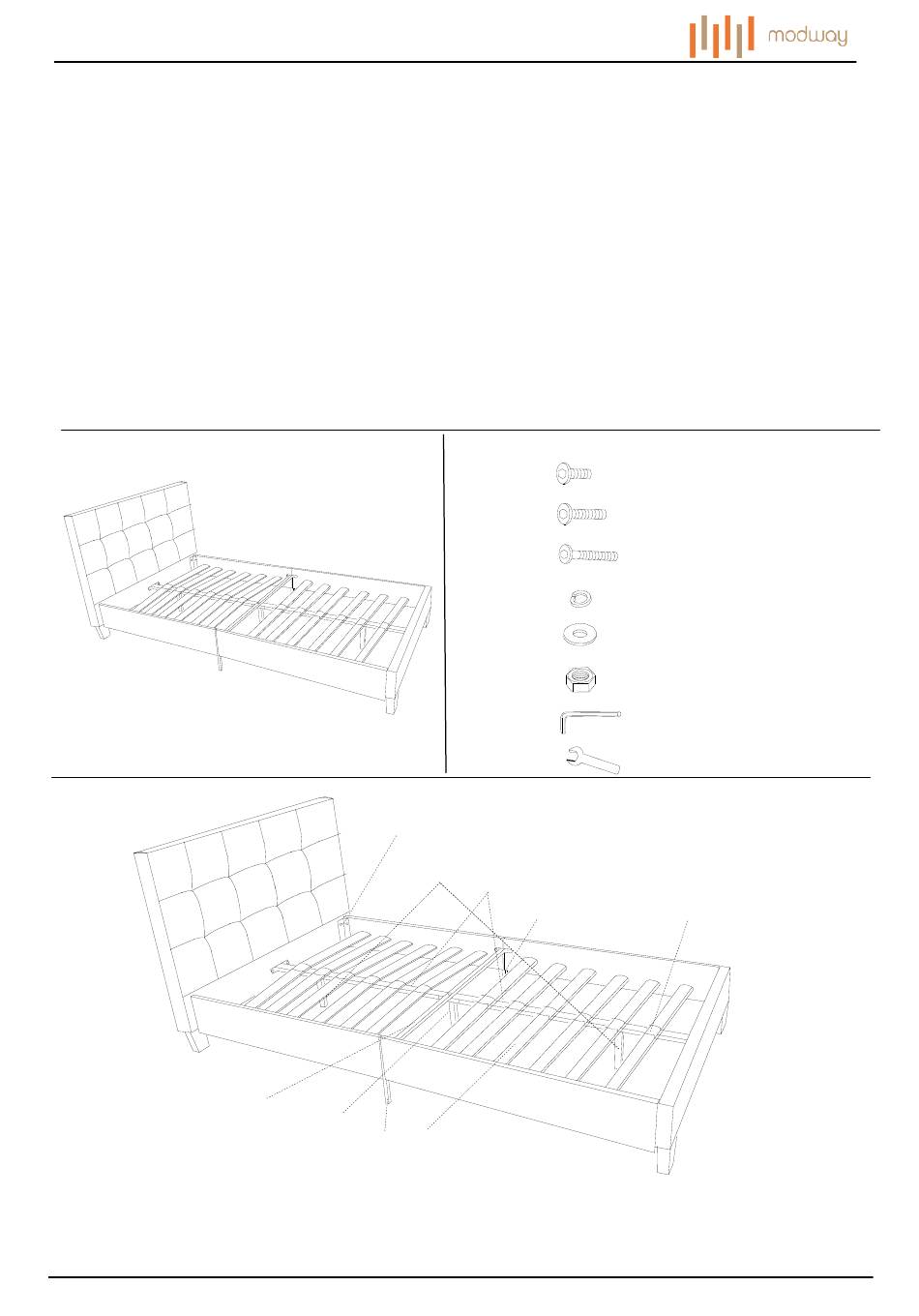

Component:
P8
P1
Headboard
x1
P5
Metal Corner
x4
P9
Leg
x2
P12
Center Support Leg
Customer Service 908-368-1025︱www.modwayfurniture.com
P5
P1
P9
P4
P3
P6
P12
P14
P10
P2
Footboard
P6
Stretcher
P10
Short Support Leg x2
P13
x1
Plastic Cover
BED
Hardware:
A
B
C
D
E
F
G
H
P11
P7
P10
P4
P3
x1
Side Rail
P7
Center Rail
x1
x12
Bolt M8x20mm
x28
Bolt M8x35mm
x12
Bolt M8x60mm
x3
Spring Washer
x8
Flat Washer
x8
Nut M8
Allen Wrench
Open Wrench
x1
P13
P3
P8
P2
P9
P4
x2
Side Rail
x2
P8
Leg
P11
Long Support Leg x2
P14
Slat
Page 1 of 6
x6
x1
x2
x2
x24
Advertisement
Related Manuals for modway MOD-5423
Summary of Contents for modway MOD-5423
- Page 1 MOD-5421/5422/5423/5424/5425/5426 Thank you for purchasing the MODWAY BED！ Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 MOD-5421/5422/5423/5424/5425/5426 STEP 1: Attach 1 piece of Leg (P8) and 1 piece of Leg (P9) into Headboard (P1) as shown. Secure by using 4 pieces of Bolt (B), 4 pieces of Spring Washer (D) and 4 pieces of Flat Washer (E). Use Allen Wrench (G) to tighten Bolts (B) clockwise until secure.
- Page 3 MOD-5421/5422/5423/5424/5425/5426 STEP 3: Connect 1 piece of Side Rail (P3) and 1 piece of Side Rail (P4) by using 1 piece of Short Support Leg (P10) as shown. Secure by using 2 pieces of Bolt (A). Use Allen Wrench (G) to tighten Bolts (A) clockwise until secure. Repeat the same steps for the remaining Side Rail (P3&P4) and Short Support Leg (P10).
- Page 4 MOD-5421/5422/5423/5424/5425/5426 STEP 5: Attach 1 piece of Long Support Leg (P11) to 1 piece of Center Rail (P7) as shown. Insert 2 pieces of Bolt (B) through the corresponding holes on Center Rail (P7) to the holes on Long Support Leg (P11). Secure by using 2 pieces of Nut (F).
- Page 5 MOD-5421/5422/5423/5424/5425/5426 STEP 7: Attach Center Support Leg (P11) to each end of Center Rail (P7) as shown. Insert 2 pieces of Bolt (C) from the holes on one side of Center Support Leg (P11) through the corresponding holes on each Center Rail (P7 to the holes on the other side of Center Support Leg (P11). Secure by using 2 pieces of Nut (F).
- Page 6 MOD-5421/5422/5423/5424/5425/5426 STEP 9: Insert 1 piece of Bolt (C) through the holes on Stretcher (P6) into the holes on Center Support Leg (P12). Use Allen Wrench (G) to tighten Bolts (C), do not fully tighten Bolts (C) at this step. Hardware &...
