Landoll Brillion CPP7 Operator's Manual

Chisel plow, 3-bar mounted
Hide thumbs Also See for Brillion CPP7:

Advertisement

Quick Links

Download this manual
'

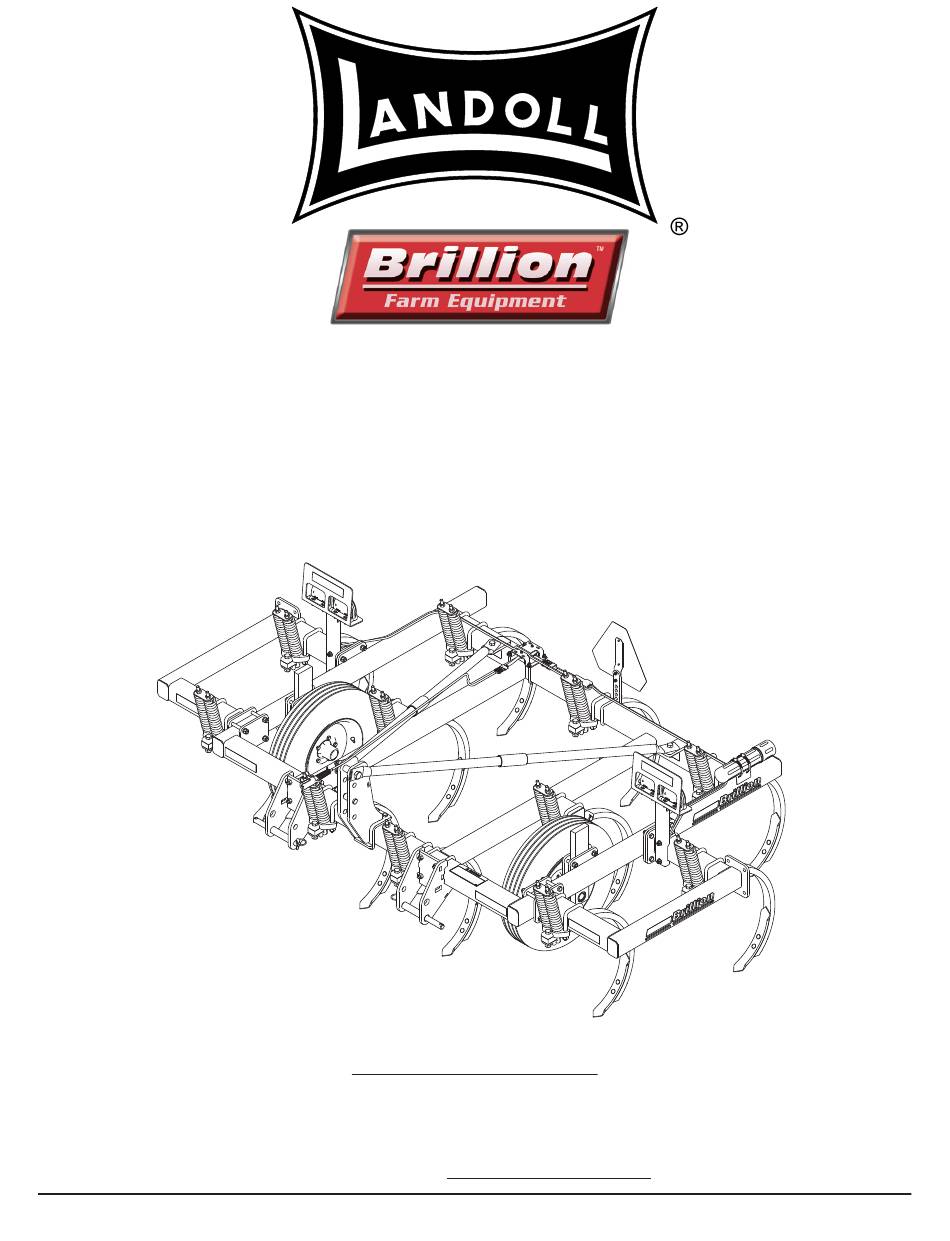

Chisel Plow, 3-Bar Mounted
Models: CPP7 thru CPP12
Operator's Manual
LANDOLL COMPANY, LLC
1900 North Street
Marysville, Kansas 66508
(785) 562-5381
800-428-5655 ~ WWW.LANDOLL.COM
7D525-2401

Advertisement

loading
Need help?

Need help?

Do you have a question about the Brillion CPP7 and is the answer not in the manual?

Questions and answers

Related Manuals for Landoll Brillion CPP7

Summary of Contents for Landoll Brillion CPP7

  • Page 1 ‘ Chisel Plow, 3-Bar Mounted Models: CPP7 thru CPP12 Operator’s Manual LANDOLL COMPANY, LLC 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM 7D525-2401...
  • Page 2 Manuals for 3-Bar Mounted, Chisel Plow Manual Number Manual Type 7D525 Operator’s Manual 7D524 Parts Manual...
  • Page 3 DANGER DO NOT operate or perform any maintenance tasks on this equipment until you have completed the following: 1. Receive proper training to operate this equipment safely. 2. Read and understand the operator’s manual. 3. Be thoroughly trained on inspection and repair procedures. Failure to comply with this warning may result in serious injury or possibly death.
  • Page 5 Table of Contents Introduction and Safety Introduction ............1-1 Description of Unit .
  • Page 6 TABLE OF CONTENTS Maintenance General Torque Specifications ........4-1 Fasteners .
  • Page 7 Failure to comply with this warning can result in warranty obligation unless each product is registered personal injury or death, damage to the within 10 days of retail purchase, using the Landoll implement or its components and inferior Company, LLC Ag Products on-line registration process.
  • Page 8 TABLE OF CONTENTS INTRODUCTION AND SAFETY Safety • Replace decals that become damaged or lost. Also, be sure that any new implement components installed during repair include decals which are assigned to NOTE them by the manufacturer. Investigation has shown that nearly 1/3 of all farm •...
  • Page 9 TABLE OF CONTENTS INTRODUCTION AND SAFETY Attaching, Detaching and Storage • Do not stand between the tractor and implement when attaching or detaching implement unless both are blocked from moving. Maintenance Safety • Do not make adjustments or lubricate the machine while it is in motion.
  • Page 10 8J310 ITEM 4 528933 ITEM 2 - 8J310 ITEM 5 528938 MEMBER ITEM 6 - 2P151 Landoll Company, LLC Marysville, Kansas FARM EQUIPMENT MANUFACTURERS www.landoll.com A S S O C I A T I O N MODEL # ITEM 9...
  • Page 11 TABLE OF CONTENTS INTRODUCTION AND SAFETY Decal Locations IPME CPP7&9 Decals Figure 1-3: Decal Locations (7 and 9 Shank Models) 7D525-2401...
  • Page 12 TABLE OF CONTENTS INTRODUCTION AND SAFETY CPP10&12 Decals Figure 1-4: Decal Locations (10 and 12 Shank Models) 7D525-2401...
  • Page 13 TABLE OF CONTENTS INTRODUCTION AND SAFETY IPME CPP11 Decals Figure 1-5: Decal Locations (11 Shank Models) 7D525-2401...
  • Page 14 TABLE OF CONTENTS INTRODUCTION AND SAFETY Table provided for general use. NOTES: 7D525-2401...
  • Page 15 Chapter 2 TABLE OF CONTENTS Assembly Main Frame Assembly CAUTION 1. Place the frame on blocks at least 36-42 inches high Do not work on or under this machine unless for the assembly of the machine. securely blocked and supported by a hoist or 2.
  • Page 16 TABLE OF CONTENTS ASSEMBLY Figure 2-1: Frame 7D525-2401...
  • Page 17 TABLE OF CONTENTS ASSEMBLY Frame Assembly Dimensions “Left” and “Right” refer to directions seen as if standing behind the machine and facing in the direction of forward travel. 43-7/16" CPP7,9,11 2-1/8" Ref 61-7/16" CPP10,12 1-1/16" Upper Hitch Bracket Frame LH Lower RH Lower 15-1/16"...
  • Page 18 TABLE OF CONTENTS ASSEMBLY Tractor Category Upper Hitch Lower Hitch Lower Hitch Shank Length Pin Position Pin Position Pin Orient CAT 2 Free Link View AA 26" Shank CAT 2 Free Link View AA 32" Shank CAT 2 Quick Coupler View BB 26"...
  • Page 19 TABLE OF CONTENTS ASSEMBLY View AA View BB View CC Figure 2-4: Lower Hitch Orientation 7D525-2401...
  • Page 20 TABLE OF CONTENTS ASSEMBLY Frame Extensions, 1FT Install a 1 FT Frame Extensions on each 4-Hole Plate on the outer tubes of the Frame with 5/8-11 X 2 Bolts, Lock Washers and Nuts. Figure 2-5: 1FT Frame Extensions 7D525-2401...
  • Page 21 TABLE OF CONTENTS ASSEMBLY Frame Extensions, 2FT Install a 2 FT Frame Extensions on each 4-Hole Plate on the outer tubes of the Frame with 5/8-11 x 2 Bolts, Lock Washers and Nuts. Secure the front of the Extension by placing a 4-Hole Plate on the inside of the Frame Tube.
  • Page 22 TABLE OF CONTENTS ASSEMBLY Shank Installation Attach the Shank Assemblies to the frame in the locations indicated in Figures 2-7 through 2-12. Shank Assemblies are shipped with all the necessary hardware to mount the shanks to the frame. CPP 7 Shank L.H.
  • Page 23 TABLE OF CONTENTS ASSEMBLY L.H. and R.H. refer to CPP 9 Shank Left and Right Hand Twisted Shovel Installation. Figure 2-8: CPP9 Shank and Shovel Locations 7D525-2401...
  • Page 24 TABLE OF CONTENTS ASSEMBLY CPP 10 Shank L.H. and R.H. refer to Left and Right Hand Twisted Shovel Installation. Figure 2-9: CPP10 Shank and Shovel Locations 2-10 7D525-2401...
  • Page 25 TABLE OF CONTENTS ASSEMBLY CPP 11 Shank L.H. and R.H. refer to Left and Right Hand Twisted Shovel Installation. Figure 2-10: CPP11 Shank and Shovel Locations 7D525-2401 2-11...
  • Page 26 TABLE OF CONTENTS ASSEMBLY CPP 12 Shank L.H. and R.H. refer to Left and Right Hand Twisted Shovel Installation. Figure 2-11: CPP12 Shank and Shovel Locations 2-12 7D525-2401...
  • Page 27 TABLE OF CONTENTS ASSEMBLY Spring Clamp Shank Assembly Rigid Clamp Shank Assembly Remove the 3/4-10 U-Bolts, Lock Washers and Nuts. Remove the front 3/4-10 x 7-1/2 Bolt, Lock Washer and Place Shank Assembly Clamp under the frame and Nut and loosen the 5/8-11 Nuts so that they are flush with re-insert the U-Bolts over the top of the frame and through the end of the Bolt.
  • Page 28 TABLE OF CONTENTS ASSEMBLY Point Installation When replacing or reversing points, change all points at the same time so that they will have the same operating depth. If some shanks have worn points, or points of a different design, the chisel plow will not operate efficiently.
  • Page 29 TABLE OF CONTENTS ASSEMBLY Gauge Wheels Kits - Optional Place Gauge Wheel Arm between the bar stock that is welded to the 4-Hole Plate on the inside of the outer Frame Tube. Attach Gage Wheel to frame with 4-Hole Plate, 5/8-11 x 3 Bolts, Lock Washers and Nuts. See Figure 2-17.
  • Page 30 TABLE OF CONTENTS ASSEMBLY LED Warning Lights Installation NOTE All models similar. Refer to Figure 2-18 for bracket and light placement. 1. Attach the 2 (two) Light Brackets to the rear frame using the 1/2-13 U-Bolts and Nuts. On the 11FT Models the Light Brackets are attached the 2 (two) foot extensions.
  • Page 31 TABLE OF CONTENTS ASSEMBLY 17" (7,9,11 Shank) Amber Lamp Amber Lamp Lamp Lamp Bracket Module Light Light Bracket Bracket Bracket 4" 5" 5" (11 Shank) (11 Shank) Back View 11 Shank Machine Shown Lamp Lamp Amber Amber Module Lamp Lamp Bracket Light Bracket...
  • Page 32 TABLE OF CONTENTS ASSEMBLY Figure 2-19: 7FT and 9FT LED Warning Lights Layout 2-18 7D525-2401...
  • Page 33 TABLE OF CONTENTS ASSEMBLY Figure 2-20: 10FT and 12FT LED Warning Lights Layout 7D525-2401 2-19...
  • Page 34 TABLE OF CONTENTS ASSEMBLY Figure 2-21: 11FT LED Warning Lights Layout 2-20 7D525-2401...
  • Page 35 This chapter will cover the basic operation and CAT 2 and 3 Free Link or 2, 3 and 3N Quick Coupler procedures for the Landoll Brillion Chisel Plow. Be sure to 3- PT Hitches. Before attaching the Chisel Plow, prepare...
  • Page 36 TABLE OF CONTENTS OPERATION Attaching to 3-PT Hitch Field Operation 1. Carefully back the tractor into place. 1. Lower the Chisel Plow to the ground and pull it a few feet at the approximate desired depth. 2. Attach the Chisel Plow to the tractor. 2.
  • Page 37 TABLE OF CONTENTS OPERATION Transport • Check all tires for proper inflation, and that lug nuts are properly torque. See "Tires" on 1. Check and follow all federal, state, and local page 4-2. requirements before transporting the Chisel Plow. • Verify that all warning lights, SMV sign, 2.
  • Page 38 TABLE OF CONTENTS OPERATION Table provided for general use. NOTES: 7D525-2401...
  • Page 39 Chapter 4 TABLE OF CONTENTS Maintenance General Torque Specifications (rev. 4/97) This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition).
  • Page 40 TABLE OF CONTENTS MAINTENANCE Fasteners Before operating your Brillion machine, check all hardware for tightness. Use the Tightening Torque Table as a guide. See "General Torque Specifications" on page 4-1. After a few hours of use, check entire machine and tighten any loose nuts or bolts.
  • Page 41 TABLE OF CONTENTS MAINTENANCE Warning Lamps Storage 1. The service life of the Chisel Plow will be extended by When plugging in the 7-Pin Warning Lamp Connector: proper off-season storage practices. Prior to storing 1. Make sure the Tractor has a good clean Receptacle, the unit, complete the following procedures: free of dirt and corrosion.
  • Page 42 TABLE OF CONTENTS MAINTENANCE Table provided for general use. NOTES: 7D525-2401...
  • Page 43 Chapter 5 TABLE OF CONTENTS Specifications Product Attributes CPP 7 CPP 9 Approximate Weight 604 lbs. (272 kg) 636 lbs. (286 kg) Working Width 7 ft. 0 in. (2.1 m) 9 ft. 0 in. (2.7 m) Transport Width 7 ft. 6 in. (2.25 m) 8 ft.
  • Page 44 TABLE OF CONTENTS SPECIFICATIONS Product Attributes CPP 10 CPP 11 Approximate Weight 723 lbs. (325 kg) 779 lbs. (351 kg) Working Width 10 ft. 0 in. (3.0 m) 11 ft. 0 in. (3.4 m) Transport Width 10 ft. 6 in. (3.15 m) 11 ft.
  • Page 45 TABLE OF CONTENTS SPECIFICATIONS Product Attributes CPP 12 Approximate Weight 755 lbs. (340 kg) Working Width 12 ft. 0 in. (3.6 m) Transport Width 11 ft. 11 in. (3.6 m) Transport Height 4 ft. 8 in. (1.4 m) Overall Length 8 ft.
  • Page 46 TABLE OF CONTENTS SPECIFICATIONS Table provided for general use. NOTES: 7D525-2401...
  • Page 47 Document Control Revision Log: Date Form # Improvement(s): Description and Comments 07/2001 7D525-0701 New Release 11/2013 7D525-1113 Updated to Landoll Format. Added LED Warning Lights 01/2024 7D525-2401 Revised Landoll Template, Updated Shank Dimension Drawings, Specs *Revised Form Format “Year/Date”...
  • Page 48 Equipment from Landoll Company, LLC is built to exacting standards ensured by ISO 9001 registration at all Landoll manufacturing facilities. Chisel Plow, 3-Bar Mounted Models: CPP7 thru CPP12 Operator’s Manual Re-Order Part Number 7D525 LANDOLL COMPANY, LLC 1900 North Street...
