- Page 1 Kit Instructions 7360 (R6) Short Tri-Light Pole 7360-K061 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
-
Page 3: Revision Record
Revision Record Issue Date Remarks Sep 2019 First Issue... -
Page 4: Kit Contents

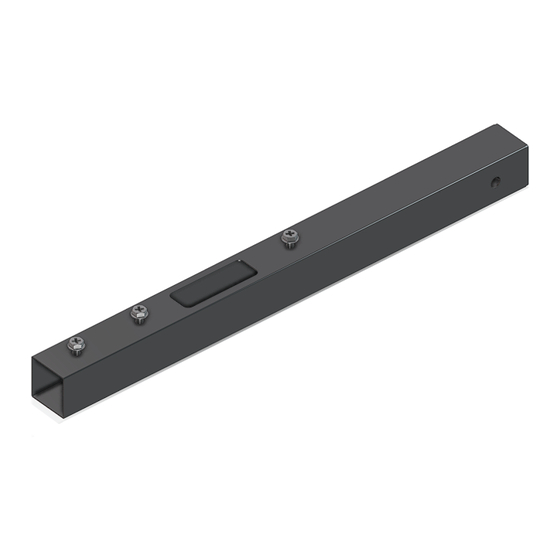

7360 (R6) Short Tri-Light Pole The 7360 (R6) Short Tri-Light Pole holds the Secondary Display of the SelfServ Checkout unit. This publication provides procedures for installing an R6 Short Tri-Light Pole to an NCR FastLane SelfServ™ Checkout (7360) unit. Kit Contents Part Number... -
Page 5: Installation Procedure
7360 (R6) Short Tri-Light Pole Installation Procedure To install the R6 Short Tri-Light Pole, follow these steps: 1. Remove the existing Tri–Light/Lane Light Pole, if necessary. For more information, refer to Removing Tri–Light/Lane Light Pole on page 5. 2. Loosen the star–shaped washer around the keylock assembly. 3. - Page 6 7360 (R6) Short Tri-Light Pole 4. Insert the Secondary Display cables through the opening in the side of the pole. 5. Route the cables coming out of the unit so they align with the grooves and carefully insert the pole into the tower.
- Page 7 6. Route the Secondary Display cables out of the hole on the back of the pole. 7. Secure the pole to the tower using three (3) screws. 8. Install the Secondary Display. For more information, refer to NCR FastLane SelfServ™ Checkout (7360) Hardware Service Guide (B005-000-2378).
- Page 8 Removing Tri–Light/Lane Light Pole To remove the Tri–Light/Lane Light Pole, follow these steps: Note: To remove the Tri–Light/Lane Light Assembly, refer to NCR FastLane SelfServ™ Checkout (7360) Hardware Service Guide (B005–0000–2378). 1. Insert key in lock on the back of tower and then turn counterclockwise to unlock the terminal.
- Page 9 7360 (R6) Short Tri-Light Pole 3. Remove the Scanner/Scale to access the screws that secure the Tri–Light/Lane Light Pole. 4. Remove the two (2) screws securing the Tri–Light/Lane Light Pole to the tower. 5. Remove the cables out of the Tri–Light/Lane Light Pole. 6.
