- Page 1 Kit Instructions Attendant Checkstand 7360-K710/K711/K713/K728/K729/K731 Issue C...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Revision Record Issue Date Remarks Sep 2016 First issue. Jun 2017 Updated IP PDF template. Oct 2017 Updated Kit image with the following color variants: • 7360-K713 (Beige) • 7360-K731 (Beige)

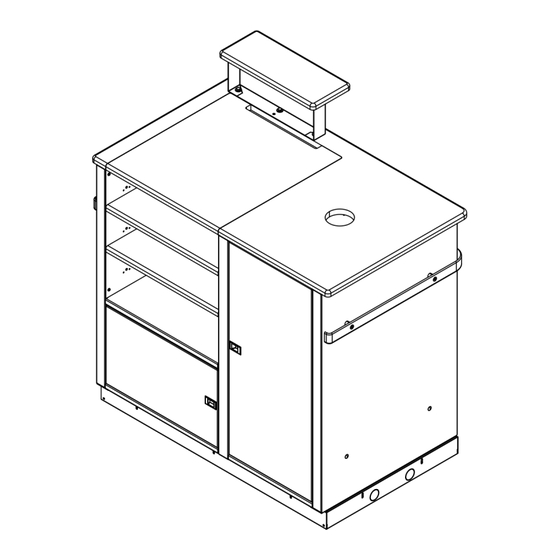

- Page 4 Attendant Checkstand The kit contains a Remote Attendant Station Checkstand for the NCR FastLane SelfServ™ Checkout 7360. The Attendant Checkstand may be Full Size (Standard) or Compact.
- Page 5 7360-K710/K711/K713/K728/K729/K731 Attendant Checkstand Installation Procedure 1. Move the Attendant Checkstand to the installation location. 2. Level the Attendant Checkstand. a. Drop all of the leveling feet until they touch the floor. b. Place a level left–to-right on the Checkstand. c. Adjust the leveling feet to obtain a level left–to–right reading.
- Page 6 7360-K710/K711/K713/K728/K729/K731 Attendant Checkstand 3. Attach the skirt around the bottom of the Attendant Checkstand. Note: The side skirt panels of the Attendant Checkstand must be installed before the front or back skirt panels. The illustration below uses the Full Size Attendant Checkstand as an example.
