- Page 1 Kit Instructions Basket Shelf 7360-K500 Issue C...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Revision Record Issue Date Remarks Sep 2016 First issue. Jun 2017 Updated IP PDF template. May 2021 Updated Kit Contents.

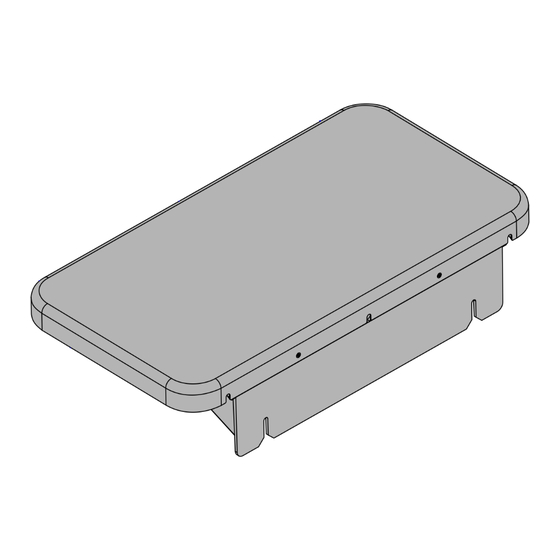

- Page 4 Basket Shelf This kit contains the components to add a Basket Shelf to the NCR FastLane SelfServ™ Checkout 7360. Kit Contents Part Number Description 497-0518754 7360-K500 Input Shelf Kit 497-0528037 Input Shelf Frame 009-0006599 Screw, Hex, M6 x 12 MC Comb (5 pcs)
- Page 5 7360-K500 Basket Shelf Installation Procedure 1. Insert four (4) screws into the side of the Core as an alignment guide. Leave at least ¼ inch of the screw threads visible. 2. Align the Basket Shelf over the alignment screws and then slide the Shelf down onto...
- Page 6 7360-K500 Basket Shelf 3. Insert one (1) screw into the middle of the Basket Shelf, as shown in the image below. 4. Tighten all five (5) screws to secure the Basket Shelf to the unit.
