- Page 1 WTP-9H66 Industrial Panel PC USER’S MANUAL OCT 26 2023 V1.0 Copyright©,2023. All rights reserved All other brand names are registered trademarks of their respective owners. The information contained in this document is subject to change without notice...
- Page 2 Version Change History Date Version Description Remark 2023/6/14 First release...
- Page 3 Acknowledgments Intel® Core processor is registered trademarks of Intel® Corporation. IBM, PC/AT, PS/2 are trademarks of International Business Machines Corporation. ® ® Microsoft Windows is a registered trademark of Microsoft Corporation. RTL is a trademark of Realtek Semi-Conductor Co., Ltd. ...
- Page 4 FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses and can radiate radio frequency energy.
- Page 5 Safety Instructions Intended use The WTP-9H66 is intended to serve as an industrial monitor which is designed for general purpose for industrial environment. Intended User profile The equipment is intended for infant or adults by profession Health care professionals. Greeting & Setup Thank you for purchasing the WTP-9H66 unit.
- Page 6 contact a service technician for repairs. Continual use of the unit may result cause a fire or electric shock. Also, do not repair the unit on your own. Having two or more people transporting the display unit is recommended. In addition, when installing the unit by suspending it also requires two or more people.
- Page 7 If the unit is not going to be in use for an extended period of time, remember to disconnect the unit. 10. The industrial panel PC unit uses voltage between 100-240VAC. Connect the unit to a power source with the same numerical value as shown.
- Page 8 Operating principle A Industrial Panel PC has four main components: the arithmetic logic unit (ALU), the control unit, the memory, and the input and output devices (collectively termed I/O). These parts are interconnected by buses, often made of groups of wires. The control unit, ALU, and registers are collectively known as ...
- Page 9 Servicing, Repairing, Maintenance & Safety Checks If the unit is not functioning properly, observe the performance level of the display closely to determine what type of servicing is needed. Do not attempt to repair the industrial panel PC unit on your own.
- Page 10 EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if...
- Page 11 C) Caution: This adapter Sinpro SPU61A-107 is a forming part of the industrial device Contact information: Wincomm Corporation 3F, No.14, Prosperity Road II, Science-Based Industrial Park, Hsinchu, Taiwan 300, R.O.C TEL: (886) 3 5780000 E-Mail: Sales_support@wincomm.com.tw...
-
Page 12: Table Of Contents
Table of Contents Acknowledgments ............iii FCC Class B ..............iv Safety Instructions ............v Introduction ............1 Product Description ............1 Package list ..............2 Features ................3 Specifications ..............4 Getting Started ............ 8 System Set Up ............... 8 Dimension 9H66-15 ............. -
Page 13: Introduction

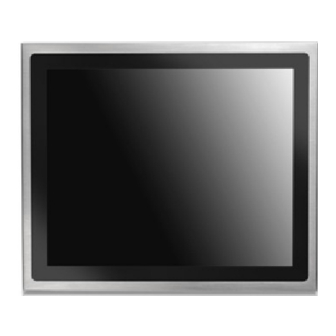

Introduction Product Description The WTP-9H66 Industrial Panel PC is based on Intel Alder Lake-P MCP processors , it accommodates 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 2 x SATA3 and up to 64GB DDR4 2X260-pin SODIMM. -
Page 14: Package List
Package list Before you begin installing your Industrial Station, please make sure that the following items have been shipped: The WTP-9H66 Industrial Panel PC unit User's manual, chipset drivers Power Adapter x 1 (type/model: LSU120A-108) Power cord –US type, or other type in UK, EU…etc. -
Page 15: Features
Stainless panel PC Full Flat Resistive or P-Cap Touch CE, FCC, VCCI Class B Certified Full Flat Design Easy Clean & IP66 Front Wide Range DC Input Optional WLAN with External Antenna WTP-9H66 User’s manual... -
Page 16: Specifications
Gen2(Type-C, Support DP1.4a display ,Power output 5V/3A) COM - RS232//RS422/RS485 x2 Rear I/O LAN – 2 x Intel® I225LM (Support AMT/vPro) Audio – Realtek ALC897 HD, High Definition Audio., 3 watts power amplifier TPM2.0 TPM2.0(on board IC) WTP-9H66 User’s manual... - Page 17 1920x1080 Full HD Contrast Ratio 1000:1 Pixel Pitch (um) 248.25 (H)×248.25(V) Luminance (cd/m2) 170°(H) Viewing Angle 160°(V) Display Type 23.8 Max. Resolution 1920x1080 Full HD Contrast Ratio 3000:1 Pixel Pitch (um) 274.5 (H)×274.5(V) Luminance (cd/m2) 178°(H) Viewing Angle 178°(V) WTP-9H66 User’s manual...
- Page 18 Storage, Transportation: -20°C to 60°C (-4°F ~140°F) Operating: 15g/0.53 oz, 11 ms, half sine wave Vibration Non-operating: 50g/1.76 oz, 11 ms, half sine wave Operating: 5 ~ 17 Hz , Amplitude：0.117 ~ 500Hz , Shock Acceleration：1.0G Non-operating:10~55Hz/0.15g, 55~500Hz/2.0g WTP-9H66 User’s manual...
- Page 19 Controller with USB interface, 5V Hardness >=7H Light Transmission >=86% Life Time 100M times Res touch Type Full flat resistive touch panel Interface Controller with USB interface, 5V Hardness ≧3H Light Transmission 80% ± 5% Life Time 35M times WTP-9H66 User’s manual...
-
Page 20: Getting Started
“F11” key, go into BIOS quick boot menu, select “USB-CD ROM”, WAIT FOR 20 SECONDS, then press enter, system OS will boot up from USB-CD/DVD drive directly. Notice: The installation is only to be carried out by manufacturer trained and authorized personnel. WTP-9H66 User’s manual... -
Page 21: Dimension 9H66-15
Dimension 9H66-15 Dimension 9H66-19 WTP-9H66 User’s manual... -
Page 22: Dimension 9H66-22
Dimension 9H66-22 Dimension 9H66-24 WTP-9H66 User’s manual... -
Page 23: System View
System View Front View WTP-9H66 User’s manual... - Page 24 I/O parts WTP-9H66 User’s manual...
-
Page 25: Disconnect Device
Unplug the power cord from the power adapter jack to disconnect the device. Turn off the system: Turning off WTP-9H66 properly is important for system reliability. 1. On the start menu, click “Shut down” and select “OK” WTP-9H66 User’s manual... -
Page 26: Bios Setup
<PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit. When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices. WTP-9H66 User’s manual... - Page 27 Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 1998-9999 Months: 1-12 Days: Dependent on month Range of Years may vary. System Time Set the Time. Use Tab to switch between Time elements. WTP-9H66 User’s manual...
- Page 28 Intel SpeedStep Technology Allows more than two frequency ranges to be supported. Intel Turbo Boost Technology Intel Turbo Boost Technology enables the processor to run above its base operating frequency when the operating system requests the highest performance state. WTP-9H66 User’s manual...
- Page 29 If [Power On] is selected, the system will start to boot up when the power recovers. Storage Configuration Configure Storage devices. SATA Controllers(s) Enables/disable the SATA controllers. SATA Mode Selection WTP-9H66 User’s manual...
- Page 30 Suspend to RAM It is recommended to select auto for ACPI S3 power saving. PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN. RTC Alarm Power On WTP-9H66 User’s manual...
- Page 31 TCG_2: Support new TCG2 protocol and event format for Win10 or later Physical Presence Spec Version Select to Tell O.S. to support PPI Spec Version 1.2 or 1.3. Note some HCK tests might not support 1.3. TPM 2.0 InterfaceType WTP-9H66 User’s manual...
- Page 32 TPM 2.0 devices if not found, TPM 1.2 devices will be enumerated Instant Flash Save UEFI files in your USB storage device and run Instant Flash to update your UEFI. Please note that your USB storage device must be FAT32/16/12 file system. WTP-9H66 User’s manual...
- Page 33 H/W Monitor CPU_FAN1 Setting Quiet Fan Function Control CHA_FAN1 Setting Quiet Fan Function Control Case Open Feature Enable or disable the feature of Case Open. WTP-9H66 User’s manual...
- Page 34 Key(PK) is enrolled and the System is in User mode. The mode change requires platform reset Secure Boot Mode Secure Boot mode options: Standard or Custom. In Custom mode, Secure Boot Policy variables can be configured by a WTP-9H66 User’s manual...
- Page 35 Key Management Enables expert users to modify Secure Boot Policy variables without full authentication Intel(R) Platform Trust Technology Enabled/Disabled Intel PTT function, Enabled: Enable Intel PTT in ME, Disabled: Disable Intel PTT in ME, Use discrete TPM Module. WTP-9H66 User’s manual...
- Page 36 Boot From Onboard LAN Boot From Onboard LAN Setup Prompt Timeout Configure the number of seconds to wait for the UEFI setup utility. Bootup Num-Lock Select whether Num Lock should be turned on or off when the WTP-9H66 User’s manual...
- Page 37 Full Screen Logo Enable to display the boot logo or disable to show normal POST messages WTP-9H66 User’s manual...
- Page 38 F7 key can be used for this operation. Load UEFI Defaults Load UEFI Default values for all the setup questions. F9 key can be used for this operation. Launch EFI Shell from filesystem device Copy shellx64.efi to the root directory to launch EFI Shell. WTP-9H66 User’s manual...
-
Page 39: Appendix
Appendix A. Jumper settings and Connectors WTP-9H66 User’s manual... - Page 40 WTP-9H66 User’s manual...
