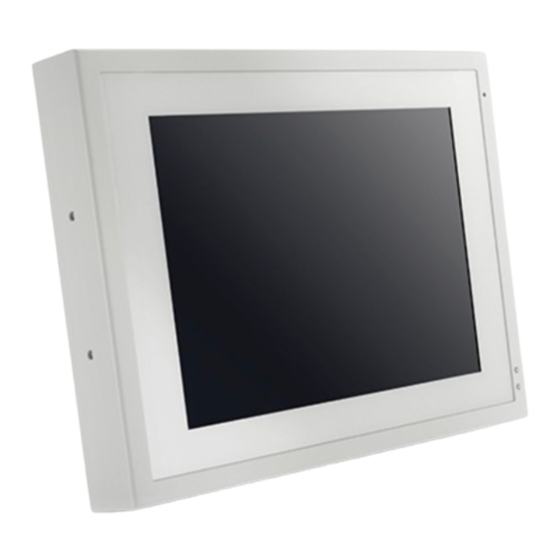

WTP-8B66-15O
User's Manual
Version V1.0
Copyright © 2016, ALL RIGHTS RESERVED.
All other brand names are registered trademarks of their respective owner

Advertisement

Table of Contents
loading

Related Manuals for Wincomm WTP-8B66-15O

Summary of Contents for Wincomm WTP-8B66-15O

  • Page 1 WTP-8B66-15O User’s Manual Version V1.0 Copyright © 2016, ALL RIGHTS RESERVED. All other brand names are registered trademarks of their respective owner...
  • Page 2 Copyright Notice Copyright © 2015 All Rights Reserved. Printed in Taiwan. The information contained in this document is subject to change without any notices. Acknowledgments Greeting & Setup Thank you for purchasing theWTP-8B66-15O-15O Panel PC. We wish that this unit will be durable and reliable in providing your needs.
  • Page 3 tangled with the unit. Do not overload the AC outlets or extension cords. Electrical shocks or fires may occur from overloading. Do not touch the power source during a thunderstorm. If your hands are wet, do not touch the plug. Use your thumb and index finger, grip firmly on the power cord to disconnect from the electrical socket.
  • Page 4 A liquid was spilled on the unit or objects have fallen into the unit. The unit is soaked with liquids. iii. The unit is dropped or damaged. If smoke or strange odor is flowing out of the open frame unit. If the power cord or plug is damaged.
  • Page 5 Version Change History Date Version Description Remark 2016/07/28 Draft First release 2016/08/29 V1.0 Final release...

  • Page 6: Table Of Contents

    How to Use This Manual ............ 3 System Overview ............. 4 System View ............... 9 Setting up the System............10 Installing System Software ..........10 Installing the Drivers............10 BIOS Setup Information ......... 12 Appendix .............. 20 Jumper settings and Connectors ..20 Visor Assemble Instruction ......

  • Page 7: How To Use This Manual

    How to Use This Manual This manual is written for the system integrator, PC technician and knowledgeable PC end user. It describes how to configure yourWTP-8B66-15O Panel PC to meet various operating requirements. The user’s manual is divided into three chapters, with each chapter addressing a basic concept and operation of the server board. Chapter 1: System Overview - presents what you have inside the box and gives you an overview of the product specifications and basic system architecture for theWTP-8B66-15O Panel PC.

  • Page 8: System Overview

    System Overview System Intel® Atom E3845 processor 10W Graphic Intel® HD Graphics Intel I210-IT Gigabit Ethernet x 2 Memory Dual Channel, two DDR3 SODIMM socket support up to 8GB DDR3L-1333 Serial ATA SATA II controller (3.0Gb/sec) Port x 2 Serial port External RS232/RS422/RS485 x 1(Set BIOS, RS485 auto flow), RS232 x 1 Internal RS232 x 1 RS232 (Jumper 5V, 12V) x1...
  • Page 9 Display Brand Civue Resolution (pixel) XGA (1024 x 768 pixels) Active Area (mm) 304.1 (H) x 228.1(V) (15.0”diagonal) Outline Dimensions (mm) 326.5 x 253.5 x 11.528 Pixel Pitch (mm) 297x297 Display Mode Normally white View Angle (H/V) 80/70 Brightness (cd/m2) 1000 Contrast Ratio 700:1...
  • Page 10 Water drip / pouring wet Drag Medium risk of false touch Placement Angle of elevation 60∘~ 90∘ UI Design UI icon spacing & edge > 6mm Gloves special glove for PCT only Point Touch Point Accuracy +/- 5mm. (Note) *Note: the touch point accuracy around edge about 1.5cm = +/- 15mm(max) Storage 128GB 2.5"...
  • Page 11 Wireless or WIFI and BT kit (2 ant) Waterproof COM cable, cable length is 2 meters Waterproof USB cable, cable length is 2 meters Waterproof LAN cable, cable length is 2 meters Packing list WTP-8B66-15O DVD-Title for driver and manual Power adapter Power cord Shelter case...
  • Page 12 ± axis) 21-40.99 lb 32 in. Orientation Y and (9.53-18.59kg) (0.813 ： ± ± ± Z axes Customization: 1. Barcode reader 2. IP67 Configurations: WTP-8B66-15O, CPU E3845, Wide temp 2G RAM, wide temp128G SSD, 4 USB, 2 COM, 1 LAN...

  • Page 13: System View

    System View WTP-8B66-15O Outline Drawing...

  • Page 14: Setting Up The System

    Setting up the System The following is a summary of the steps in setting up the system for use. CAUTION: Make sure that power to the system and each of the devices to be connected is switched OFF before plugging in the connectors. Make any required external connections such as the keyboard, and mouse.
  • Page 15 Follow the sequence below to install the drivers: Step 1 – Install Intel® INF Driver Step 2 – Install Intel® VGA Driver Step 3 – Install Intel® LAN Driver Step 4 – Install Audio Driver Step 1 – Install Intel® INF Driver 1.

  • Page 16: Bios Setup Information

    BIOS Setup Information BIOS Introduction The AMI BIOS (Basic Input / Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also adds virus and password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.
  • Page 17 Advanced Launch OpROM Support Launch PXE OpROM Enables or disables Boot Option for Legacy Network Devices. Launch Storage OpROM Enables or disables Boot Option for Legacy Mass Storage Devices with Option ROM. PCI Subsystem Settings PCI ROM Priority In Case of multiple Option ROMs (Legacy and EFI Compatible), specifies what PCI Option ROM to launch. PCI Latency Timer Value to be programmed into PCI Latency Timer Register.
  • Page 18 Set the ASPM Level: Force L0 – Force all links to L0 State : AUTO – BIOS auto configure : DISABLE – Disables ASPM. Extended Synch If ENABLED allows generation of Extended Synchronization patterns. ACPI Settings Enables ACPI Auto Conf Enables or Disables BIOS ACPI Auto Configuration.
  • Page 19 Selects DVMT/FIXED Mode Memory size used by Internal Graphics Device. IGD – Boot Type Select the Video Device which will be activated during POST. This has no effect if external graphics present. LCD Panel Type Select LCD panel used by Internal Graphics Device by selecting the appropriate setup item. Panel Scaling Select the LCD panel scaling option used by the Internal Graphics Device.
  • Page 20 Set Parameters of Serial Port 1 (COM C). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COM D). Serial Port 3 Configuration Set Parameters of Serial Port 3 (COM E). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COM F). Serial Port Console Redirection Serial Port Console Redirection.
  • Page 21 Boot Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup Numlock State Selects the keyboard NumLock state. Quiet Boot Allows you to determine whether to display the AMI Logo at system startup. Disabled displays normal POST message.
  • Page 22 Enables or disables the security chip. It is recommended that you use this function with the Administrator/User password.
  • Page 23 Save & Exit Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving the changes.

  • Page 24: Appendix

    Appendix A. Jumper settings and Connectors...
  • Page 25 JP5 – Backlight Type Selection Description Jumper Setting Analog Inverter 1-2 (for 10”) PWM Inverter 2-3(for 12’’/15”) JP6 – Backlight control level Selection Description Jumper Setting OPEN (default) +3.3V JP7 – Touch Panel Type Selection Description Jumper Setting 3M type 1-2, 3-4 (default) ELO type 5-6,7-8...
  • Page 26 JP9 – Sensor Selection Description Jumper Setting No Panel Sensor No MB Sensor Reserved JP10 – CMOS Clear Description Jumper Setting Normal Open 1-2 (default) CMOS Clear JP11 – SATA / SATADOM Selection Description Jumper Setting SATA 2-3(default) SATA JP12 – COM3 Power Selection Description Jumper Setting +5VS...
  • Page 27 Description JP13 JP14 No support (default) Open Open Support *Support Y cable only. JP15 –Panel Resolution Selection JP15 jumper setting Panel Color Depth Resolution 800x600 6bit 1024x768 6bit 1024x768 8bit 1280x768 6bit 1280x800 6bit 1280x960 6bit 1280x1024 8bit 1366x768 6bit 1366x768 8bit 1440x900...
  • Page 28 1.1 Connector Definition PJ5 /PJ6 – HDD Power Connector Pin # Signal Description +12VS +5VS PJ8 – Power Jack Pin # Signal Description DC In DC In PJ9 – Power Input Connector Pin # Signal Description DC In DC In...
  • Page 29 J5 – LCD Inverter Wafer Header Pin # Signal Description +12VS +12VS Backlight Control Backlight Enable J6, J54, J56 – Internal USB 2.0 Pin Header Pin # Signal Description +5VSB +5VSB Data - Data +...
  • Page 30 J9 – LVDS Interface Pin # Signal Description Pin # Signal Description Ground A_TXD3+ B_TXD3+ A_TXD3- B_TXD3- A_CLK+ B_CLK+ A_CLK- B_CLK- A_TXD2+ B_TXD2+ A_TXD2- B_TXD2- A_TXD1+ B_TXD1+ A_TXD1- B_TXD1- A_TXD0+ B_TXD0+ A_TXD0- B_TXD0- +LVDS PWR +LVDS PWR +LVDS PWR +LVDS PWR...
  • Page 31 J10 – Resistance Touch Screen Interface Signal Description Pin # 8-wire 4-wire 5-wire UL(X+) UL(X+) UL(X+) UR(Y+) UR(Y+) UR(Y+) PROBE LR(X-) LR(X-) LR(X-) LL(Y-) LL(Y-) LL(Y-) X+_DRIVE Y+_DRIVE X-_DRIVE Y-_DRIVE J13 / J19 – Mini PCI Express Socket J14 –P-CAP Touch screen interface* Pin # Signal Description +5VSB...

  • Page 32: Gnd

    J15 –TPM / ID-394 Pin # Signal Description Pin # Signal Description +3.3VSB SUS_STAT# SMB DATA SMB CLK Debug CLK CLKRUN# LPC Frame# +5VSB LPC AD3 +3.3VS LPC AD2 SERIRQ LPC AD1 PLT reset# LPC AD0 J16 – For JTAG Pin # Signal Description Pin #...
  • Page 33 J21 – BIOS Socket J22 – Battery Socket J24 – Standard SATA / SATA DOM Interface Pin # Signal Description Ground Ground Ground / +5VS...
  • Page 34 J25 – Standard SATA Interface Pin # Signal Description Ground Ground Ground J26 – PS2 KB/MS Pin # Signal Description KBDATA MSDATA Ground +5VSB KBCLK MSCLK J27 – MB Heater Connector Pin # Signal Description +12VSB J28 – Power / HDD LED...
  • Page 35 Pin # Signal Description PWR_LED# +3.3VSB +3.3VSB SATA_LED# J29 – Heater Error / Heating LEDs Pin # Signal Description +3.3V HEATER_LED# ERROR_LED# J30, J31, J32, J33 – Panel Heater Connector Pin # Signal Description +12VSB J34, J38 – RIGHT / LEFT CH for Speaker. Signal Description Pin # J34 (RIGHT CH)

  • Page 36: Gnd

    232_CTS# 232_SOUT 232_RI# 232_DTR# +5VS J36 – Internal COM3 Serial Port Pin # Signal Description Pin # Signal Description 232_DSR# 232_DCD# 232_RTS# 232_SIN 232_CTS# 232_SOUT 232_RI# 232_DTR# +5VS/+12VS J37 – Light Sensor Connect Pin # Signal Description +3.3V Ground SCL1 SDA1 J39 –...

  • Page 37: Gnd

    J40 – External USB 3.0 Port J41 / J42 –External RJ45 Ethernet Port Activity/Link LED Status Description No Link Blinking Data Activity Link Speed LED Status Description 10 Mbps Green 100 Mbps Orange 1 Gbps J43 – Power Switch connect Pin # Signal Description Power ON...
  • Page 38 J47 – External DVI-I Connector J48 / J49 – External Audio Phone Jack Audio Jack Signal Description Line Out (stereo) Green Microphone (stereo) Pink J50 – Reset Button Pin # Signal Description SYS_RESET# J51 – Reset connector Pin # Signal Description SYS_RESET# J52 –...
  • Page 39 TX D- DATA- TX D+ DATA+ RX D+ RX D- J53 – External COM2 Serial Connector Pin # Signal Description Pin # Signal Description J54/J55*/J56/J57* – Internal USB 2.0 Pin Header Pin # Signal Description +5VSB +5VSB Data - Data + *J55/J57 reserve for Mini PCIE x1 share.
  • Page 40 J58 – External PoE Slot (Option) Pin # Signal Description LAN0_MDI0_P LAN0_MDI0_N LAN0_MDI1_P LAN0_MDI1_N LAN0_MDI2_P LAN0_MDI2_N LAN0_MDI3_P LAN0_MDI3_N J60/J61/J62 – Internal USB 2.0 Pin Header Pin # Signal Description +5VSB +5VSB Data - Data + *Co-lay with external USB port (J44, J45 and J46).
  • Page 41 J63 – Internal COM2 Pin Header Pin # Signal Description Pin # Signal Description 232_DSR# 232_DCD# 232_RTS# 232_SIN 232_CTS# 232_SOUT 232_RI# 232_DTR# +5VS/+12VS *Co-lay with external COM2 port (J52). J64 – Internal COM1 Pin Header Signal Description Pin # RS-232 RS-422 RS-485 TX D-...

  • Page 42: Visor Assemble Instruction

    Visor Assemble Instruction Step 1. Please check out the following parts before assembly. Item Quantity Visor _ Top Visor _ Right Visor _ Left Screws M3 Screw M4(On the PC)
  • Page 43 Step 2. Please remove M4 screws from the unit (both sides of unit). Step 3. Assemble visor_right(Part No : 420G5WTP8B6615) with M4 screws Step 4. Assemble visor_left(Part No : 420G5WTP8B6616) with M4 screws...
  • Page 44 Step 5. Assemble visor top(Part No : 420G5WTP8B6614) with M3 screws...
