- Page 1 WMP-153 Medical Panel PC USER’S MANUAL P/N: 205G000WMP1530, V1.0 Copyright© ,2015. All rights reserved All other brand names are registered trademarks of their respective owners. The information contained in this document is subject to change without notice...
- Page 2 Version Change History Date Version Description Remark 2015/6/25 First release James WMP-153 User’s manual...
- Page 3 Intel is a trademark or registered trademark of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Winbond is a registered trademark of Winbond Electronics Corporation. All other product names or trademarks are properties of their respective owners. WMP-153 User’s manual...
- Page 4 To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth. Do not modify this equipment without authorization of the manufacturer. WMP-153 User’s manual...
- Page 5 Safety Instructions Intended use The WMP-153 is intended to serve as a medical monitor which is designed for general purpose for hospital environment and for diagnosis. It could be used for Surgical, Radiology, PACS (Picture Archiving Communication Systems), LIS (Lab Information Systems) and Electronic Medical Record purpose.
- Page 6 If your hands are wet, do not touch the plug. Use your thumb and index finger, grip firmly on the power cord to disconnect from the electrical socket. By pulling the power cord, may result in damaging it. WMP-153 User’s manual...
- Page 7 Unless proper ventilation is present, do not place unit in an enclosed area; such as a built-in shelf. Keep a minimum distance of 10 cm between the display unit and wall. WMP-153 User’s manual...
- Page 8 (f) When the functions of the unit are dysfunctional. When replacement parts are needed for the medical panel PC unit, make sure service technicians use replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original viii WMP-153 User’s manual...
- Page 9 The mark on electrical and electronic products only applies to the current European Union Member States. WMP-153 User’s manual...
- Page 10 IEC 60601-1-1. The unit is for exclusive interconnection with IEC 60601-1 certified equipment in the patient environment and IEC 60XXX certified equipment outside of the patient environment. If in doubt, consult the technical services department or your local representative. WMP-153 User’s manual...
- Page 11 C) Caution: This adapter Sinpro HPU101-105 is a forming part of the medical device Contact information: 3F, No.14, Prosperity Road II, Science-Based Industrial Park, Hsinchu, Taiwan 300, R.O.C TEL: (886) 3 5780000 E-Mail: Sales@wincomm.com.tw WMP-153 User’s manual...
-
Page 12: Table Of Contents
A. Jumper settings and Connectors ..... 30 B. L type Stand (optional kit) ...... 32 C. Battery Pack Specifications ..... 33 D. How to disable battery when system hang up -WMP-153 ..........34 E. Scrap Computer Recycling ...... 35 WMP-153 User’s manual... -
Page 13: Introduction

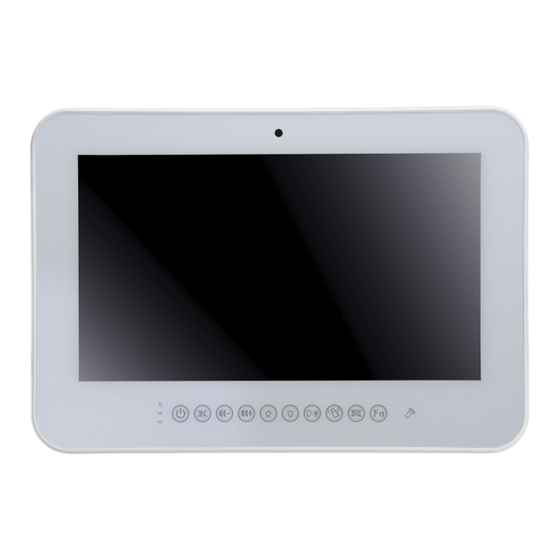

The WMP-153 includes all the features of a powerful computer into a slim and attractive chassis. The WMP-153 has a 15.6” high brightness TFT display with 1366 x 768 resolutions. The WMP-153 is compact, Giga LAN and selectable WLAN network compatible PC with full safety and medical approval and features to control a dedicated system with a wide variety of applications. -
Page 14: Package List
Before you begin installing your Medical Station, please make sure that the following items have been shipped: The WMP-153 Medical Panel PC unit One DVD containing user's manual, chipset drivers Power Adapter x 1 (Mf:Sinpro, type/model: HPU101-105) ... -
Page 15: Features
Two mini PCI-e expansion (One full and one half) HDD Anti-vibration mechanism Fanless solution Anti-bacteria (MRSA) plastic housing Built-in Battery backup function (option) Support PCI-E x 1 (option) Support isolated module by different configuration (optional order configuration) WMP-153 User’s manual... -
Page 16: Specifications
LED backlight LCD 1366 x 768 Max. Resolution 500 : 1 (Typ) Contrast Ratio 252 (per one triad) × 252 Pixel Pitch (um) Luminance (cd/m2) 400 (TYP) 170°(H) Viewing Angle 160°(V) Operating 0°C~ 40°C (32°F~104°F) Temperature Brightness Control WMP-153 User’s manual... - Page 17 Amplitude：0.117 ~ 500Hz , Shock Acceleration：1.0G Non-operating:10~55Hz/0.15g, 55~500Hz/2.0g Operational: up to 3000 m (9842 feet) Altitudes Shipping: up to 12192 m (40000 feet) 700 – 1060 hPa (Operation) 186 – 1060 hPa (Storage) Pressure 186 – 1060 hPa (Transportation) WMP-153 User’s manual...
-
Page 18: Guidance And Manufacturer's Declaration - Electromagnetic Emissions
Guidance and manufacturer’s declaration – electromagnetic emissions The model WMP-153 is intended for use in the electromagnetic environment specified below. The customer or the user of the model WMP-153 should assure that it is used in such an environment. Electromagnetic environment – Emissions test Compliance... -
Page 19: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
The model WMP-153 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model WMP-153 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment... - Page 20 5 cycles for 5 cycles mains interruptions, it 61000-4-11 is recommended that the model WMP-153 70 % UT 70 % UT be powered from an (30 % dip in (30 % dip in uninterruptible power supply or a battery.
-
Page 21: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
Guidance and manufacturer’s declaration – electromagnetic immunity The model WMP-153 is intended for use in the electromagnetic environment specified below. The customer or the user of the model WMP-153 should assure that it is used in such an environment. Immunity Electromagnetic environment –... - Page 22 If the measured field strength in the location in which the model WMP-153 is used exceeds the applicable RF compliance level above, the model WMP-153 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the model WMP-153.
-
Page 23: Cleaning/Disinfecting
2. Prepare agent per manufacturer’s instructions or hospital protocol. Cautions: Do not immerse or rinse the WMP-153 and its peripherals. If you accidentally spill liquid on the device, disconnect the unit from the power source. Contact your Biomed regarding the continued safety of the unit before placing it back in operation. -
Page 24: Getting Started
USB-CD/DVD drive, turn on computer power, keep on pressing “F11” key, go into BIOS quick boot menu, select “USB-CD ROM”, WAIT FOR 20 SECONDS, then press enter, system OS will boot up from USB-CD/DVD drive directly. WMP-153 User’s manual... -
Page 25: Dimension
Dimension WMP-153 (VESA Mount Screw type: M4) WMP-153 User’s manual... -
Page 26: System View
1-1. Up. HDD: Yellow 1-2 Down. Battery: LED 1 LED 2 (Charge/Discharge/Low) (Batt present/ not present) In charge blinking Discharge Full charge Low battery blinking blinking No battery 2. Power (with LED status indicator: ON: Green, OFF: dark) WMP-153 User’s manual... - Page 27 Keep on contacting 5 seconds to active b. keep contacting 5 seconds to release c. auto release after 60 seconds 10. Dis-Webcam: Webcam hotkey disable function 11. Fn: Function key (with LED status indicator: ON: Green, OFF: dark) I/O parts (WMP-153) WMP-153 User’s manual...
- Page 28 WMP-153 User’s manual...
-
Page 29: Disconnect Device
Disconnect Device Unplug the power cord from the power adapter jack to disconnect the device. WMP-153 User’s manual... -
Page 30: Bios Setup
<PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit. When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices. WMP-153 User’s manual... - Page 31 This section provides information on the BIOS information, and Battery information System Date Set the system date. Use the <Tab> key to switch between data elements. System Time Set the system time. Use the <Tab> key to switch between time elements. WMP-153 User’s manual...
- Page 32 Sleep State). This option may be not effective with some OS. ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SISPEND button is pressed. F81216 Super IO Configuration Serial Port 1 Configuration Serial Port Enable or Disable Serial Port (COM). Function WMP-153 User’s manual...
- Page 33 Enable or disable System wake on alarm event. Select FixedTime, System will wake on the hr::min::sec specified. Select DynamicTime , System will wake on the current time + Increase minute(s). CPU Configuration Socket 0 CPU Information Socket specific CPU Information. WMP-153 User’s manual...
- Page 34 1~10 seconds mean press hold time. Locked Status Hold Time Number of minutes to keep lock status. 0 means lock always. 1~100 minutes mean lock hold time. Power key Enable / Disable power key. Mute key Enable / Disable Mute key. WMP-153 User’s manual...
- Page 35 Show / hide hidden items. Info Report Configuration Post Report Post Repost Support Enabled / Disabled. Info Error Message Info Error Message Support Enabled / Disabled. Summary Screen Summary Screen Support Enabled / Disabled. USB Configuration USB Support USB Support Parameters. WMP-153 User’s manual...
- Page 36 USB devices are connected. DISABLE option will keep USB devices available only for EFI applications XHCI Hand-off Enable / Disable XHCI Controller Legacy support. USB Mass Storage Driver Support Enable/Disable USB Mass Storage Driver Support. WMP-153 User’s manual...
- Page 37 Disabled = Azalia will be unconditionally disabled. Enable = Azalia will be unconditionally Enabled. Auto = Azalia will be enabled if present disabled otherwise. Restore AC Power Loss Select AC power state when power is re-applied after a power failure. WMP-153 User’s manual...
- Page 38 Security Administrator Password Set Administrator Password. User Password Set user Password. P0：TOSHIBA MQ01 HDD Security Configuration for selected drive. WMP-153 User’s manual...
- Page 39 Selects the keyboard NumLock state. PXE Boot PXE Network Boot Enable / Disable. OS Selection OS Selection. Quiet Boot Enable or disables Quiet Boot option. Boot Option #1 Sets the system boot order. Boot Option #2 Sets the system boot order. WMP-153 User’s manual...
- Page 40 Reset system setup without saving the changes. Save Changes Save the changes done so far to any of setup options. Discard Changes Discard the changes done so far to any of setup options. Restore Defaults Restore/load default values for all the setup options. WMP-153 User’s manual...
- Page 41 Launch EFI Shell From filesystem device Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices. Reset System with ME disable ModeMEUD000 ME will runs into the temporary disable mode, Ignore if ME Ignition FWMEUD001. WMP-153 User’s manual...
-
Page 42: Appendix
A. Jumper settings and Connectors This appendix gives the definitions and shows the positions of jumpers, headers and connectors. All of the configuration jumpers on WMP-153 are in the proper position. Note: Some of jumpers or connectors will be removed base on system configuration. - Page 43 Description Jumper Setting +5VS (for 17"/19"/21.5”) 1-2,3-4 (default) +3.3VS (for 10"/12"/15") 5-6,7-8 JP5 – Panel Type Selection GPIO3 JP5(1-2) short JP5(1-2) open GPIO2 JP5(3-4) short JP5(3-4) open GPIO1 JP5(5-6) short JP5(5-6) open GPIO0 JP5(7-8) short JP5(7-8) open WMP-153 User’s manual...
-
Page 44: L Type Stand (Optional Kit)
JP6 – CMOS Clear Description Jumper Setting Normal Open 1-2 (default) CMOS Clear JP8,JP9 – Support Y cable with DVI+VGA Description Jumper Setting Description Open DVI+VGA Short DVI+VGA JP10 – COM4 Power Selection Description Jumper Setting +5VS 2-3(default) +12VS WMP-153 User’s manual... - Page 45 Connector Definition PJ1 /PJ2 – HDD Power Connector Pin # Signal Description +12VS Ground Ground +5VS PJ4 – Power Jack Connector Pin # Signal Description DC In DC In Ground Ground Ground J1 – LCD Inverter Interface Pin1 WMP-153 User’s manual...
- Page 46 Symbol Symbol Symbol Symbol Symbol Symbol VREFDQ DQ27 DQS4 DQ31 DQ38 CKE0 DQ34 DQ39 DQ35 DQS0# DQ44 DQ40 DQS0 NF/A14 DQ45 DQ41 DQS5# DQS5 DQ42 DQ12 DQ46 DQ43 DQ13 DQ47 DQS1# DQ48 DQ52 DQS1 DQ49 RESET# DQ53 WMP-153 User’s manual...
- Page 47 +LCD (+5V/ +3.3V) +LCD (+5V/ +3.3V) +LCD (+5V/ +3.3V) Ground Ground Ground Ground A_RxIn0- B_RxIn0- A_RxIn0+ B_RxIn0+ Ground Ground A_RxIn1- B_RxIn1- A_RxIn1+ B_RxIn1+ Ground Ground A_RxIn2- B_RxIn2- A_RxIn2+ B_RxIn2+ Ground Ground A_CKIN- B_CKIN- A_CKIN+ B_CKIN+ Ground Ground WMP-153 User’s manual...
- Page 48 J5 – Res Touch Panel Interface Signal Description Pin # 8-wire 4-wire 5-wire UL(X+) UL(X+) UL(X+) UR(Y+) UR(Y+) UR(Y+) PROBE LR(X-) LR(X-) LR(X-) LL(Y-) LL(Y-) LL(Y-) X+_DRIVE Y+_DRIVE X-_DRIVE Y-_DRIVE J6 / J12 – Mini PCI Express Socket WMP-153 User’s manual...
- Page 49 +3.3VSB PERp0 +1.5VS SMB_CLK PETn0 SMB_DATA PETp0 USB_D- USB_D+ +3.3VSB +3.3VSB Reserved Reserved CL_CLK Reserved CL_ DATA +1.5VS Controller Link RST# Reserved +3.3VSB J7 – BIOS Socket Pin # Signal Description Pin # Signal Description SCLK HOLD# WMP-153 User’s manual...
- Page 50 Pin # Signal Description +5VSB +5VSB Data - Data + Ground Ground J9/J14/J15 – Internal USB 2.0 Pin Header (co-layout) Pin1 Pin # Signal Description +5VSB +5VSB Data - Data + Ground Ground J16– Power / HDD LED WMP-153 User’s manual...
- Page 51 RDY# J18 –TPM / ID-394 Pin # Signal Description Pin # Signal Description LPC AD0 PLT reset# LPC AD1 SERIRQ LPC AD2 +3.3VS LPC AD3 +5VSB LPC Frame# CLKRUN# Debug CLK SMB CLK SMB DATA SUS_STAT# +3.3VSB WMP-153 User’s manual...
- Page 52 APPENDIX J19 / J21 – Standard SATA Interface Pin # Signal Description Ground Ground Ground J23 – PS2 KB/MS Pin # Signal Description KBDATA MSDATA Ground +5VSB KBCLK MSCLK WMP-153 User’s manual...
- Page 53 J24 – EC Reset Pin # Signal Description EC_RESET# J25 – Battery Socket Pin # Signal Description RTC +3.3V J27 – GPIO Connect Pin # Signal Description Pin # Signal Description GEN_GPO1 GEN_GPI1 GEN_GPO2 GEN_GPI2 GEN_GPO3 GEN_GPI3 GEN_GPO4 GEN_GPI4 WMP-153 User’s manual...
- Page 54 APPENDIX J28 –CAP Front Bezel Button Light Sensor Connect Pin # Signal Description +5VSB +3.3VSB KP_SCL KP_SDA PWR_LED# KP_P_LED SATA_LED# J29 –Light Sensor Connect Pin # Signal Description +5VSB +3.3VSB KP_SCL KP_SDA PWR_LED# KP_P_LED SATA_LED# WMP-153 User’s manual...
- Page 55 232_DCD# 232_DSR# 232_SIN 232_RTS# 232_SOUT 232_CTS# 232_DTR# 232_RI# +5VS / +12VS J31 – Internal COM4 TTL Pin # Signal Description Pin # Signal Description DCD# DSR# RTS# SOUT CTS# DTR# +5VS J32 – External USB 3.0 Port WMP-153 User’s manual...
- Page 56 J33, J42 – RIGHT / LEFT CH for Speaker Signal Description Pin # J33 (RIGHT CH) J42 (LEFT CH) ROUT+ LOUT+ ROUT- LOUT- J34 –External RJ45 Ethernet Port Pin # Signal Description Data0+ Data0- Data1+ Data2+ Data2- Data1- Data3+ Data3- WMP-153 User’s manual...
- Page 57 Pin # Signal Description Power ON J36,J37,J38 – External USB 2.0 Port Pin # Signal Description USB_D- USB_D+ J39 – External DVI-I Connector Pin # Signal Description Pin # Signal Description DVI Data2- DVI Data2+ DVI SCL WMP-153 User’s manual...
- Page 58 J40 / J41 – External Audio Phone Jack Pin # Signal Description Line Out (stereo) Green Microphone (stereo) Pink J43 – Internal COM3 Serial Port Pin # Signal Description Pin # Signal Description 232_DCD# 232_DSR# 232_SIN 232_RTS# 232_SOUT 232_CTS# 232_DTR# 232_RI# +5VS WMP-153 User’s manual...
- Page 59 Pin # Signal Description SYS_RESET# J45 – Reset connector Pin # Signal Description SYS_RESET# J46 – External COM2 Connector Pin # Signal Description Pin # Signal Description 232_DCD 232_SIN 232_SOUT 232_DTR 232_DSR 232_RTS 232_CTS 232_RI Not Used WMP-153 User’s manual...
- Page 60 Transmit Data - Transmit Data - Receive Data Transmit Data + Transmit Data + Transmit Data Receive Data + Data Terminal Ready Receive Data - Ground Data Set Ready Request to Send Clear to Send Ring Indicator WMP-153 User’s manual...
- Page 61 Similar color as WMP series 10 degree tilt down and 30 degree tilt up solution 5,000 times hinge life cycle Specifications: Weight Capacity: Max 10kgs Monitor Mounting Holes VESA 75*75mm or 100*100mm Application using Desktop stand WMP-153 User’s manual...
-
Page 62: Battery Pack Specifications
Discharge Protection UVP/OCP Charge Protection OVP/OTP Self-discharge Rate 10uA ~800 uA Dimensions 133 x 47 x 21mm Weight 240g max. Ambient Temperature 0°C ~ +40°C Storage Temperature -20°C ~ +60°C Energy 28.08Wh Backup 53 W/ 40 min WMP-153 User’s manual... -
Page 63: How To Disable Battery When System Hang Up -Wmp-153
2. Remove AC power cord, then the battery LED will on. 3. Press volume up key 10 seconds, then all LED will turn on and turn off 4. Plug in AC power cord again, press power button then you can power on system. WMP-153 User’s manual... -
Page 64: Scrap Computer Recycling
For the computers that are no longer useful or work well, please contact with worldwide distributors for recycling. The worldwide distributors show on the following website: http://www.wincomm.com.tw/contact.aspx Note: Follow the national requirement to dispose unit WMP-153 User’s manual...
