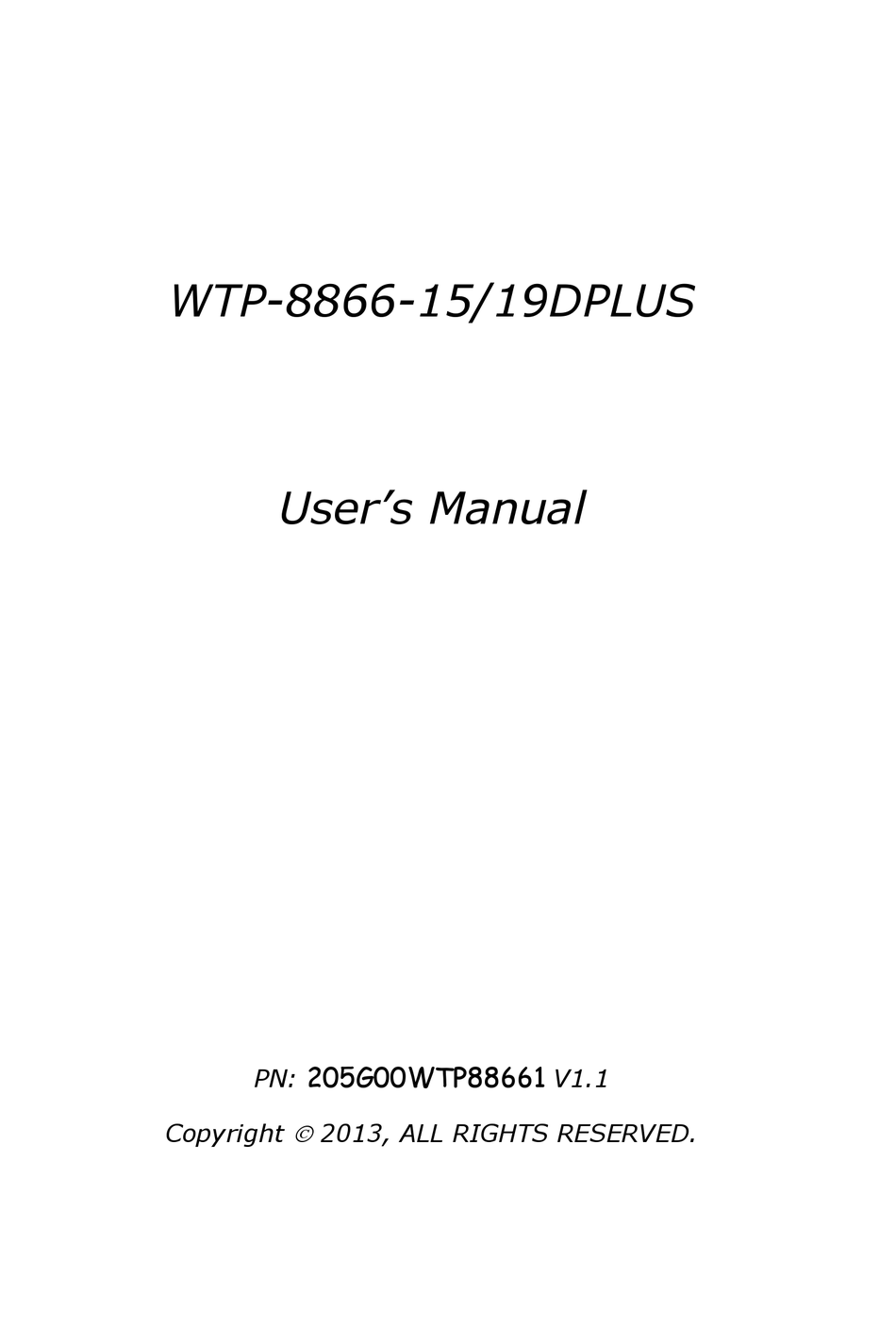

WTP-8866-15/19DPLUS
User's Manual
205G00WTP88661
PN:
V1.1
Copyright
2013, ALL RIGHTS RESERVED.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTP-8866-15 and is the answer not in the manual?

Questions and answers

Related Manuals for Wincomm WTP-8866-15

Summary of Contents for Wincomm WTP-8866-15

  • Page 1 WTP-8866-15/19DPLUS User’s Manual 205G00WTP88661 V1.1  Copyright 2013, ALL RIGHTS RESERVED.
  • Page 2 Greeting & Setup Thank you for purchasing the WTP-8866-15/19DPLUS Panel PC. We wish that this unit will be durable and reliable in providing your needs. Please follow the instructions below to ensure the unit continues to have high performance Unpacking After opening the carton, there will be a unit with an accessory box.
  • Page 3 cause a fire or electric shock. Also, do not repair the unit on your own. 3. Before suspending the unit, make sure the material used for suspension is sturdy and stable. If not properly suspended, the display unit may fall and cause serious injury to people standing nearby as well as to the unit itself.
  • Page 4 time, remember to disconnect the unit. 9. Connect the unit to a power source with the same numerical value as spec. label shown. Please use only the power cord provided by the dealer to ensure safety and EMC compliance. Various Factors of Environment 1.
  • Page 5 (d) If the power cord or plug is damaged. (e) When the functions of the unit are dysfunctional. 4. When part replacement is needed. Make sure service technician uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts.
  • Page 6 Version Change History Date Version Description Remark 2013/10/21 V1.0 First release 2014/3/10 V1.1 Power spec. modify...

  • Page 7: Table Of Contents

    Table of Contents System Overview(WTP-8866-15D PLUS) ........8 System View ....................12 System Overview (WTP-8866-19D PLUS) ........13 System View ....................17 BIOS Setup Information ..............22 2.1 Main Menu ....................23 2.2 Advanced Menu ..................24 2.3 PCI Subsystem Setting ................26 2.4 Advanced BIOS Feature Setup ..............

  • Page 8: System Overview(Wtp-8866-15D Plus)

    System Overview(WTP-8866-15D PLUS) System AMD Fusion processor T40N Chipset AMD A55E Graphic AMD Radeon HD6320 Audio Realtek ALC662, HD CODEC Realtek 8111E x 2 Memory DDR3 1066 MHz (max 4G) SATA 1 x SATA II (Max. Data Transfer Rate 300 MB/s) BIOS Brand: AMI Flash ROM size: 16M...
  • Page 9 Touch Screen AMT 28115 resistive touch screen Resistive Characteristics ( 5 wire) Model name AMT 28115 Touch Resolution 4096x4096 Stylus use possible No Limitation, can use any stylus beyond finger Glove use possible Any type glove Light transmittance 80+-3% Hardness Response time 20 ms Front Panel...
  • Page 10 USB 2.0 x 3 (one is accessible behind front bezel, 2 at rear sides) RJ-45 x 1 (Gigabit Ethernet) and PoE power input Audio Line-out x 1, with 3.5mm phone jack connector Power Power DC-In connector x 1 Power Input DC12V Power Adapter AC 90 ~ 264V / 47 ~ 63 Hz / DC output 12V,...
  • Page 11 1. WTP-8866-15D PLUS 2. CD-Title for driver and manual 3. Power adapter 4. Power cord 5. Options Regulatory FCC-A, CE (EMC)

  • Page 12: System View

    System View...

  • Page 13: System Overview (Wtp-8866-19D Plus)

    System Overview (WTP-8866-19D PLUS) System AMD Fusion processor T40N Chipset AMD A55E Graphic AMD Radeon HD6320 Audio Realtek ALC662, HD CODEC Realtek 8111E x 2 Memory DDR3 1066 MHz (max 4G) SATA 1 x SATA II (Max. Data Transfer Rate 300 MB/s) BIOS Brand: AMI Flash ROM size: 16M...
  • Page 14 Power Consumption 26.71 W (W)(typ) Interface 2ch LVDS Supply Voltage (V) Backlight CCFL Outline Dimensions (mm) 396.0 x 324.0 x 18.5 Weight (g) 2400 (Typ) Touch Screen Model name AD-2511 Type 5 wire RES Glove Any type glove Stylus No Limitation, can use any stylus Interface Light Transmission 80±...
  • Page 15 Mini-PCIe 52 pin card-edge type x 1 support half/full size (for WLAN module) External water/dust resistant I/O (rear side) USB 2.0 x 3 (one is accessible behind front bezel, 2 at rear sides) RJ-45 x 1 (Gigabit Ethernet) and PoE power input Audio Line-out x 1, with 3.5mm phone jack connector Power...
  • Page 16 WTP-8866-19DPLUS+Wall Mount net weight: 12 KG WTP-8866-19DPLUS+Wall Mount gross weight: 13.5 KG Packing list 6. WTP-8866-19DPLUS 7. CD-Title for driver and manual 8. Power adapter 9. Power cord 10. Options Regulatory FCC-A, CE (EMC)

  • Page 17: System View

    System View...

  • Page 18: Setting Up The System

    Setting up the System The following is a summary of the steps in setting up the system for use. CAUTION: Make sure that power to the system and each of the devices to be connected is switched OFF before plugging in the connectors. Make any required external connections such as the keyboard, and mouse.

  • Page 19: Installing System Software

    Panel PC. Installing software requires an installed HDD. Software can be loaded in the WTP-8866-15/19DPLUS Panel PC using any of below methods: Method 1: Use the Ethernet You can use the Ethernet port to download software from the...
  • Page 20 Then you can use the external CD-ROM to transmit the software to the HDD that has been pre-installed in the WTP-8866-15/19DPLUS Panel PC...

  • Page 21: Installing The Drivers

    Installing the Drivers After installing your system software, you will be able to set up the LAN, VGA, Audio and USB functions. All drivers are stored in a CD disc, which can be found in your accessory pack. The various drivers and utilities in the disc have their own text files that help users install the drivers and understand their functions.

  • Page 22: Bios Setup Information

    BIOS Setup Information This chapter introduces BIOS setup information. Power on or reboot the system board, when screen appears message as “Press DEL to enter SETUP.” Press <DEL> to run BIOS SETUP Utility. Note: The BIOS configuration for reference only, it may subject to change without prior notice.

  • Page 23: Main Menu

    2.1 Main Menu Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Main Advanced Chipset Boot Security Save & Exit Main Choose the system default BIOS Information language BIOS Vendor American Megatrends Core Version 4.6.4.1 Compliancy UEFI 2.1 Project Version 0ABVQ 0.14 x64 Model Name...

  • Page 24: Advanced Menu

    2.2 Advanced Menu This section allows you to configure CPU and other system devices for basic operation through the following sub-menus. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Main Advanced Chipset Boot Security Save & Exit Advanced Enable or Disable Boot Option for Legacy Network Devices...

  • Page 26: Pci Subsystem Setting

    2.3 PCI Subsystem Setting Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced In case of multiple Option PCI Bus Driver Version V 2.04.00 ROMs (Legacy and EFI Compatible) , specifies what PCI Option ROM to launch . PCI Option ROM Handling PCI ROM Priority [Legacy ROM]...
  • Page 27 Choices: Disabled, Enabled.

  • Page 28: Advanced Bios Feature Setup

    2.4 Advanced BIOS Feature Setup Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Enables or Disables PCI PCI Express Device Register Settings Express Device Relaxed Relaxed Ordering [Disabled] Ordering. Extended Tag [Disabled] No Snoop [Enabled] Maximum Payload [Auto] Maximum Read Request [Auto]...

  • Page 29: Acpi Settings

    □ ASPM Support Choices: Disabled, Enabled. 2.5 ACPI Settings Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Enables or Disables BIOS ACPI Settings ACPI Auto Configuration . Enable ACPI Auto Configuration [Disabled] ACPI Sleep State [S3 (Suspend to RAM)] Lock Legacy Resources [Disabled] S3 Video Repost...
  • Page 30 Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Disabled for Windows XP CPU Configuration Limit CPUID Maximum [Disabled] PSS Support [Enabled] PSTATE Adjustment [PState 0] PPC Adjustment [PState 0] NX Mode [Enabled] SVM Mode [Enabled] C6 Mode [Auto] Node 0 Information : Select Screen...
  • Page 31 It is the option to enable “C6 mode” is added to the BIOS setup. 2.7 AMD G-T56N Processor Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Node0 : AMD G-T56N Processor Dual Core Running @ 1670 MHz 1350mV Max Speed : 1650 MHZ Intended Speed : 1650MHZ Min Speed : 825 MHZ Microcode Patch Level : 5000101...

  • Page 32: Sata Port0

    2.8 IDE Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced IDE Configuration SATA Port0 Not Present SATA Port1 Not Present SATA Port2 Not Present SATA Port3 Not Present SATA Port4 Not Present SATA Port5 Not Present : Select Screen : Select Item Enter : Select...

  • Page 33: Legacy Usb Support

    2.9 USB Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Enables Legacy USB support . USB Configuration AUTO option disables legacy support if no USB devices are USB Devices: connected. DISABLE option will 1 Keyboard, 1 Mouse Keep USB devices available Only for EFI applications .

  • Page 34: Watch Dog Timer

    □ Device power-up delay This setting determines the maximum time for USB device will take before reporting to the controller. 2.10 Super IO Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Set Parameters of Serial Port Super IO Configuration 0 (COMA) Super IO Chip...

  • Page 35: Serial Port 0 Configuration

    2.11 Serial Port 0 Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Enable or Disable Serial Port Serial Port 0 Configuration (COM) Serial Port [Enabled] Device Settings IO=3F8h; IRQ=4; : Select Screen : Select Item Enter : Select +/- : Change Opt .

  • Page 36: Serial Port

    2.12 Serial Port1 Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Enable or Disable Serial Port Serial Port 1 Configuration (COM) Serial Port [Enabled] Device Settings IO=2F8h; IRQ=3; Device Mode [Serial Port Functi…] : Select Screen : Select Item Enter : Select +/- : Change Opt .

  • Page 37: Parallel Port Configuration

    2.13 Parallel Port Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Enable or Disable Parallel Parallel Port Configuration Port (LPT/LPTE) Parallel Port [Enabled] Device Settings IO=378h; IRQ=7 ; Device Mode [Printer Mode] : Select Screen : Select Item Enter : Select +/- : Change Opt .

  • Page 38: Pc Health Status

    2.14 Pc Health Status Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Pc Health Status CPU Temperature : +50 C SYSTEM Temperature : +39 C CPU FAN Speed : 8035 RPM System FAN Speed : N/A VCORE : +1.36 V +12 V...

  • Page 39: Serial Port 1 Configuration

    2.15 Serial Super IO Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Set Parameters of Serial Port 1 Serial Super IO Configuration (COMC) Super IO Chip Fintek F81216 Serial Port 1 Configuration Serial Port 2 Configuration Serial Port 3 Configuration Serial Port 4 Configuration : Select Screen...
  • Page 40 □ Serial Port1 Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Enable or Disable Serial Port Serial Port 1 Configuration (COM) Serial Port [Enabled] Device Settings IO=3E8h; IRQ=5; : Select Screen : Select Item Enter : Select +/- : Change Opt .
  • Page 41 □ Serial Port2 Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Enable or Disable Serial Port Serial Port 2 Configuration (COM) Serial Port [Enabled] Device Settings IO=2E8h; IRQ=5; : Select Screen : Select Item Enter : Select +/- : Change Opt .
  • Page 42 □ Serial Port3 Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Enable or Disable Serial Port Serial Port 3 Configuration (COM) Serial Port [Enabled] Device Settings IO=2A0h; IRQ=5; : Select Screen : Select Item Enter : Select +/- : Change Opt .
  • Page 43 □ Serial Port4 Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Advanced Enable or Disable Serial Port Serial Port 4 Configuration (COM) Serial Port [Enabled] Device Settings IO=2E0h; IRQ=5; : Select Screen : Select Item Enter : Select +/- : Change Opt .

  • Page 44: Wake On Ring

    2.16 Chipset Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Main Advanced Chipset Boot Security Save & Exit Advanced Advanced [Disabled] Wake On Ring Wake On Ring help [Enabled] Wake On Lan : Select Screen : Select Item Enter : Select +/- : Change Opt .

  • Page 45: North Bridge Configuration

    2.17 North Bridge Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Main Advanced Chipset Boot Security Save & Exit Chipset North Bridge North Bridge Parameters North Bridge LVDS Config Select South Bridge : Select Screen : Select Item Enter : Select +/- : Change Opt .
  • Page 46 2.18 North Bridge Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Chipset North Bridge Configuration Select Primary Video Device Primary Video Device [IGD Video] That BIOS will use for output. NB GPP Core Config [GPP_CORE_x4x4] Port 4 Control [Disabled] Port 5 Control [Disabled]...
  • Page 47 Choices: Disabled, Enabled. □ IOMMU Mode Choices: Disabled, Enabled. □ Memory Clock It shows how fast this information gets distributed to the GPU □ Memory Clear Choices: Disabled, Enabled. 2.19 GFX Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Chipset PCIe speed power policy GFX Configuration...

  • Page 48: Memory Configuration

    2.20 Memory Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Chipset Enabled Integrated Graphics Memory Configuration controller Integrated Graphics [Auto] Bank Interleaving [Enabled] : Select Screen : Select Item Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults...
  • Page 49 2.21 Node 0 Information Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Chipset Node 0 Information Starting Address : 0 KB Ending Address : 4177979 KB Dimm0 : Not Present Dimm1 : size=4096 MB, speed=1333MHz : Select Screen : Select Item Enter : Select +/- : Change Opt .
  • Page 50 2.22 SB Specify INT15 options for LVDS Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Chipset Specify INT15 options for LVDS NB PCIE Connect Type (Display DP0 Output Mode [DP-LVDS] device) DP1 Output Mode [Single Link DVI-D] : Select Screen : Select Item Enter : Select...
  • Page 51 2.23 SB Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Chipset Options for SATA Configuration SB CIM Version : 1.1.1.1 SB SATA Configuration SB USB Configuration SB GPP Port Configuration SB HD Azalia Configuration : Select Screen : Select Item Enter : Select +/- : Change Opt .

  • Page 52: Sata Configuration

    2.24 SATA Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Chipset OnChip SATA Channel [Enabled] Enable or Disable Serial ATA OnChip SATA Type [Native IDE] OnChip IDE mode [Legacy mode] SATA IDE Combined Mode [Enabled] Combined Mode Option [SATA as primary] SATA ESP on PORT0 [Disabled]...
  • Page 53 Choices: Disabled, Enabled □ SATA ESP on PORT1 Choices: Disabled, Enabled □ SATA ESP on PORT2 Choices: Disabled, Enabled □ SATA ESP on PORT3 Choices: Disabled, Enabled □ SATA ESP on PORT4 Choices: Disabled, Enabled □ SATA ESP on PORT5 Choices: Disabled, Enabled □...

  • Page 54: Usb Port

    2.25 USB Port Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Chipset USB Port 0 [Enabled] Enable or Disable USB PORT 0 USB Port 1 [Enabled] USB Port 2 [Enabled] USB Port 3 [Enabled] USB Port 4 [Enabled] USB Port 5 [Enabled]...
  • Page 55 Choices: Disabled, Enabled □ USB Port 3 Choices: Disabled, Enabled □ USB Port 4 Choices: Disabled, Enabled □ USB Port 5 Choices: Disabled, Enabled □ USB Port 6 Choices: Disabled, Enabled □ USB Port 7 Choices: Disabled, Enabled □ USB Port 8 Choices: Disabled, Enabled □...
  • Page 56 2.26 SB GPP Function Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Chipset Enable or Disable SB GPP SB GPP Function [Enabled] Function GPP Port Link Configuration [1:1:1:1 mode] : Select Screen : Select Item Enter : Select +/- : Change Opt .
  • Page 57 2.27 Azalia Device Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Chipset Enable or Disabled HD Audio HD Audio Azalia Device [Audio] Azalia Device : Select Screen : Select Item Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults...

  • Page 58: Boot Configuration

    2.28 Boot Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Main Advanced Chipset Boot Security Save & Exit Boot Number of seconds to wait for Boot Configuration setup activation key. Setup Prompt Timeout 65535(0xFFFF) means indefinite Bootup NumLock State [On] waiting.
  • Page 59 □ Option ROM Messages Set display mode for option ROM. □ Interrupt 19 Capture Enable: Allow option ROMs to trap into 19. Choices: Disabled, Enabled.

  • Page 60: Password Description

    2.29 Password Description Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Main Advanced Chipset Boot Security Save & Exit Security Set Administrator Password Password Description If ONLY the Administrator’s password is set , then this only limits access to Setup and is only asked for when entering Setup If ONLY the User’s password is set, then this is a power on password and must be entered to...

  • Page 61: Save Changes And Exit

    2.30 Save Changes and Exit Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc . Main Advanced Chipset Boot Security Save & Exit Save & Exit Restore/Load Default values Save Changes and Exit For all the setup options. Discard Changes and Exit Save Changes and Reset Discard Changes and Reset Save Options...

  • Page 62: Wake Up On Lan Function

    B. Wake UP on LAN Function Please make sure the AC power is ON before use the function. 1. Boot into OS (windows XP). 2. In start menu control panel System device manager Network adapters double click Marvell Yukon 88E8071 Advance Wake from Shutdown Item select Wake on Magic packet from power off state.
