- Page 1 WMP-17F Medical Panel PC USER’S MANUAL V1.0 Copyright© ,2016. All rights reserved All other brand names are registered trademarks of their respective owners. The information contained in this document is subject to change without notice.
- Page 2 Version Change History Date Version Description Remark 2016/11/2 First release James WMP-17F User’s manual...
- Page 3 Intel is a trademark or registered trademark of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Winbond is a registered trademark of Winbond Electronics Corporation. All other product names or trademarks are properties of their respective owners. WMP-17F User’s manual...
- Page 4 To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth. Do not modify this equipment without authorization of the manufacturer. WMP-17F User’s manual...
-
Page 5: Safety Instructions
Safety Instructions Intended use The WMP-17F is intended to serve as a medical monitor which is designed for general purpose for hospital environment. It shall not be used for life-supporting system. Intended User profile The equipment is intended for infant or adults by profession Health care professionals. - Page 6 If your hands are wet, do not touch the plug. Use your thumb and index finger, grip firmly on the power cord to disconnect from the electrical socket. By pulling the power cord, may result in damaging it. WMP-17F User’s manual...
- Page 7 Unless proper ventilation is present, do not place unit in an enclosed area; such as a built-in shelf. Keep a minimum distance of 10 cm between the display unit and wall. WMP-17F User’s manual...
- Page 8 AC outlet. 2. Turn on the computer. Servicing, Repairing, Maintenance & Safety Checks If the unit is not functioning properly, observe the performance level of the display closely to determine what type of servicing is needed. viii WMP-17F User’s manual...
- Page 9 If unauthorized parts are used it may result in starting a fire, electrical shock and/or other dangers. ISO 7000-0434 : Caution, consult ACCOMPANYING DOCUMENTS. ISO 7000-1641 : Follow operating instructions or Consult instructions for use. IEC 60417 -5009 : STAND-BY. IEC 60417-5031 : Direct current. WMP-17F User’s manual...
- Page 10 The mark on electrical and electronic products only applies to the current European Union Member States. WMP-17F User’s manual...
- Page 11 IEC 60601-1-1. The unit is for exclusive interconnection with IEC 60601-1 certified equipment in the patient environment and IEC 60XXX certified equipment outside of the patient environment. If in doubt, consult the technical services department or your local representative. WMP-17F User’s manual...
- Page 12 B) Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country. C) Caution: This adapter Sinpro HPU101-105 is a forming part of the medical device WMP-17F User’s manual...
-
Page 13: Contact Information
Contact information: Wincomm Corporation 3F, No.14, Prosperity Road II, Science-Based Industrial Park, Hsinchu, Taiwan 300, R.O.C TEL: (886) 3 5780000 E-Mail: Sales@wincomm.com.tw xiii WMP-17F User’s manual... -
Page 14: Table Of Contents
A. Jumper settings and Connectors ..... 32 B. VESA Mounting (optional kit) ....55 C. Battery Pack Specifications (optional kit) .. 57 D. How to disable battery when system hang up on WMP-17F ..........58 E. Scrap Computer Recycling ...... 59 WMP-17F User’s manual... -
Page 15: Introduction
The WMP-17F includes all the features of a powerful computer into a slim and attractive chassis. The WMP-17F has a 17” high brightness TFT display with 1280 x 1024 resolution. Integrating with high brightness LCD is easier to analyze DICOM image. -
Page 16: Package List
Package list Before you begin installing your Medical Station, please make sure that the following items have been shipped: The WMP-17F Medical Panel PC unit User's manual, chipset drivers Power Adapter x 1 (Mf:Sinpro, type/model: HPU101-105) Power cord – Hospital grade used (US type), or other type in UK, EU…etc. -
Page 17: Features
Two mini PCI-e expansion (One full size and one half size) HDD Anti-vibration mechanism Supports PCI-E x 16 (option) Tempered glass as option USB/LAN/COM isolated module by different configuration (optional order configuration) Optional battery pack, and desktop stand WMP-17F User’s manual... -
Page 18: Specifications
ISO-RS232 *1 + ISO-RS232/422/485 * 1 USB 3.0 port *4, ISO USB2.0 * 1 DC-in w/ lock function *1 Gigabit LAN RJ-45 Connectors *2 ISO giga-LAN *1 DP x 1 + DVI x 1 Sound: Line-in *1 Line-out *1 2W Speaker *2 WMP-17F User’s manual... - Page 19 Front Bezel PET bezel with resistive touch screen Color Medical-white Mounting / Holder VESA 75/100mm Construction 3mm ABS + PC TYPE Plastic housing Dimension (WxHxD) 420mmx 360mm x 83 mm 6.5kg (w/o power adapter) Net Weight Packing Filler WMP-17F User’s manual...
-
Page 20: Guidance And Manufacturer's Declaration - Electromagnetic Emissions
Guidance and manufacturer’s declaration – electromagnetic emissions The model WMP-17F is intended for use in the electromagnetic environment specified below. The customer or the user of the model WMP-17F should assure that it is used in such an environment. Electromagnetic environment – Emissions test Compliance guidance WMP-17F User’s manual... - Page 21 The model WMP-17F is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model WMP-17F can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment...
-
Page 22: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
Guidance and manufacturer’s declaration – electromagnetic immunity The model WMP-17F is intended for use in the electromagnetic environment specified below. The customer or the user of the model WMP-17F should assure that it is used in such an environment. Immunity test IEC 60601 Compliance Electromagnetic environment –... -
Page 23: Immunity
Guidance and manufacturer’s declaration – electromagnetic immunity The model WMP-17F is intended for use in the electromagnetic environment specified below. The customer or the user of the model WMP-17F should assure that it is used in such an environment. Immunity Electromagnetic environment –... - Page 24 If the measured field strength in the location in which the model WMP-17F is used exceeds the applicable RF compliance level above, the model WMP-17F should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the model WMP-17F.
-
Page 25: Cleaning/Disinfecting
2. Operate with manufacturer’s instructions or hospital protocol. Cautions: Do not immerse or rinse the WMP-17F and its peripherals. If you accidentally spill liquid on the device, disconnect the unit from the power source. Contact your Biomed regarding the continued safety of the unit before placing it back in operation. -
Page 26: Getting Started
“F11” key, go into BIOS quick boot menu, select “USB-CD ROM”, WAIT FOR 20 SECONDS, then press enter, system OS will boot up from USB-CD/DVD drive directly. Notice: The installation is only to be carried out by manufacturer trained and authorized personnel. WMP-17F User’s manual... -
Page 27: Dimension
Dimension WMP-17F User’s manual... -
Page 28: System View

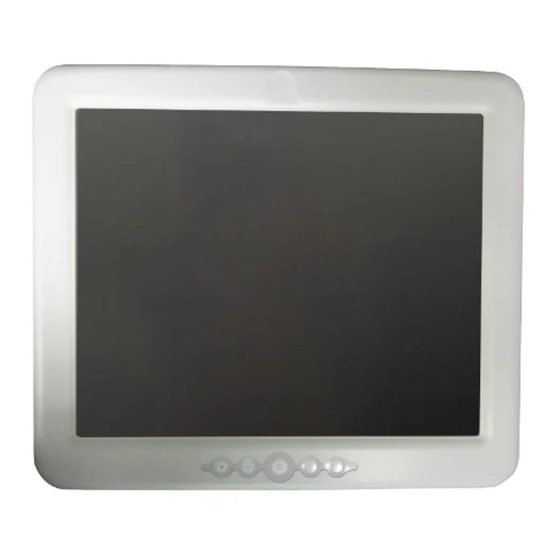

System View Front View Webcam (optional) Control button at front panel From left to right: 1. Brightness down 2. Brightness up 3. Power 4. Volume down 5. Volume up WMP-17F User’s manual... - Page 29 Rear View VESA 75/100 WMP-17F User’s manual...
- Page 30 I/O parts (WMP-17F-STD) I/O parts (WMP-17F-ISO) WMP-17F User’s manual...
-
Page 31: Disconnect Device
Disconnect Device Unplug the power cord from the power adapter jack to disconnect the device. WMP-17F User’s manual... -
Page 32: Bios Setup
<PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit. When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices. WMP-17F User’s manual... - Page 33 This section provides information on the BIOS information, Memory information, and Battery information System Date Set the system date. Use the <Tab> key to switch between data elements. System Time Set the system time. Use the <Tab> key to switch between time elements. WMP-17F User’s manual...
- Page 34 Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. AMT Configuration Intel AMT Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. WMP-17F User’s manual...
-
Page 35: Serial Port Configuration
CPU TEMPERATURE BOUNDARY 1 CPU TEMPERATURE BOUNDARY 1 CPU TEMPERATURE BOUNDARY 2 CPU TEMPERATURE BOUNDARY 2 CPU TEMPERATURE BOUNDARY 3 CPU TEMPERATURE BOUNDARY 3 WMP-17F User’s manual... - Page 36 System Fan Duty Cycle 4 (%) System Fan Duty Cycle 5 (%) System Fan Duty Cycle 5 (%) S5 RTC Wake Settings Wake system from S5 Enable or disable System wake on alarm event. Select FixedTime, system will wake on the WMP-17F User’s manual...
- Page 37 Native ASPM On enable, Vista will control the ASPM support for the device. If disabled, the BIOS will. Show/hide hidden items For debug only. Show / hide hidden items. SATA Configuration SATA Controller(s) Enable or disable SATA Device. WMP-17F User’s manual...
- Page 38 USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. XHCI Hand-off This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. WMP-17F User’s manual...
- Page 39 Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. WMP-17F User’s manual...
- Page 40 Select which of IGFX/PEG/PCI Graphics device should be Primary Display Or select SG for Switchable Gfx. Internal Graphics Keep IGFX enabled based on the setup options. GTT Size Select the GTT Size Aperture Size Select the Aperture Size WMP-17F User’s manual...
- Page 41 Enabled = HDA will be unconditionally enabled Auto = HDA will be enabled if present, disabled otherwise. PCH LAN Controller Enable or disable onboard NIC. DeepSx Power Policies Configure the DeepSx Mode configuration. LAN Wake From DeepSx WMP-17F User’s manual...
- Page 42 Enable/Disable SLP_LAN# Low on DC Power. Wake on WLAN Enable Enable/Disable PCI Express Wireless LAN to wake the system. Restore AC Power Loss Specify what state to go to when power is re-applied after a power failure (G3 state). WMP-17F User’s manual...
- Page 43 Security Enables or disables the security chip. It is recommended that you use this function with the Administrator/User password. WMP-17F User’s manual...
- Page 44 New Boot Option Policy Controls the placement of newly detected UEFI boot options the installed hard drives. WMP-17F User’s manual...
- Page 45 Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices. WMP-17F User’s manual...
-
Page 46: Appendix
A. Jumper settings and Connectors This appendix gives the definitions and shows the positions of jumpers, headers and connectors. All of the configuration jumpers on WMP-17F are in the proper position. Note: Some of jumpers or connectors will be removed base on system configuration. - Page 47 APPENDIX WMP-17F User’s manual...
- Page 48 APPENDIX WMP-17F User’s manual...
- Page 49 APPENDIX WMP-17F User’s manual...
- Page 50 APPENDIX WMP-17F User’s manual...
- Page 51 APPENDIX WMP-17F User’s manual...
- Page 52 APPENDIX WMP-17F User’s manual...
- Page 53 APPENDIX WMP-17F User’s manual...
- Page 54 APPENDIX WMP-17F User’s manual...
- Page 55 APPENDIX WMP-17F User’s manual...
- Page 56 APPENDIX WMP-17F User’s manual...
- Page 57 APPENDIX WMP-17F User’s manual...
- Page 58 APPENDIX WMP-17F User’s manual...
- Page 59 APPENDIX WMP-17F User’s manual...
- Page 60 APPENDIX WMP-17F User’s manual...
- Page 61 APPENDIX WMP-17F User’s manual...
- Page 62 APPENDIX WMP-17F User’s manual...
- Page 63 APPENDIX WMP-17F User’s manual...
- Page 64 APPENDIX WMP-17F User’s manual...
- Page 65 APPENDIX WMP-17F User’s manual...
- Page 66 APPENDIX WMP-17F User’s manual...
- Page 67 APPENDIX WMP-17F User’s manual...
- Page 68 APPENDIX WMP-17F User’s manual...
-
Page 69: Vesa Mounting (Optional Kit)
1. The wall-mounting attachment is comprised of two parts: one back bracket, and one mounting bracket. 2. First attach the back bracket to the rear cover of the WMP-17F, securing it in place with four of the Phillips-head screws provided. - Page 70 Similar color as WMP series 10 degree tilt down and 30 degree tilt up solution 5,000 times hinge life cycle Specifications: Weight Capacity: Max 10kgs Monitor Mounting Holes VESA 75*75mm or 100*100mm Application using Desktop stand WMP-17F User’s manual...
-
Page 71: Battery Pack Specifications (Optional Kit)
Discharge Protection UVP/OCP Charge Protection OVP/OTP Self-discharge Rate 10uA ~800 uA Dimensions 133 x 47 x 21mm Weight 240g max. Ambient Temperature 0°C ~ +40°C Storage Temperature -20°C ~ +60°C Energy 28.08Wh Backup 53 W/ 40 min WMP-17F User’s manual... -
Page 72: How To Disable Battery When System Hang Up On Wmp-17F
Please follow below step to reset system. 2. Press volume up key 10 seconds, then power LED will turn on then turn off 3. Plug in AC power cord again, press power button then you can power on system. WMP-17F User’s manual... -
Page 73: Scrap Computer Recycling
For the computers that are no longer useful or work well, please contact with worldwide distributors for recycling. The worldwide distributors show on the following website: http://www.wincomm.com.tw/contact.aspx Note: Follow the national requirement to dispose unit WMP-17F User’s manual...
