ZKTeco SpeedFaceV4LAC User Manual

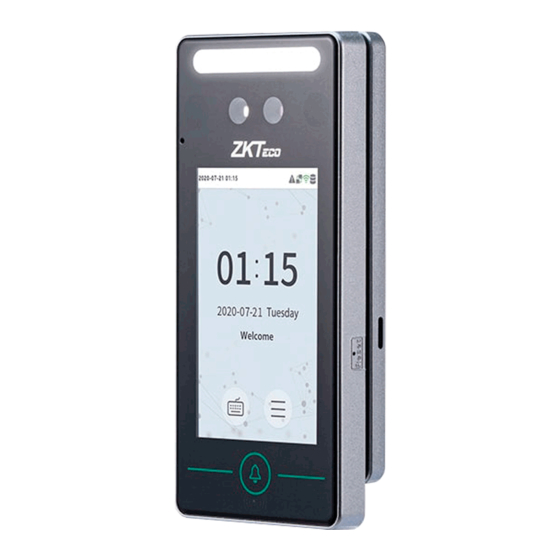

4-inch visible light terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product Name and Model Number
User Manual
4-inch Visible Light Terminal
Date: July 2020
Doc Version: 1.0
English
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
