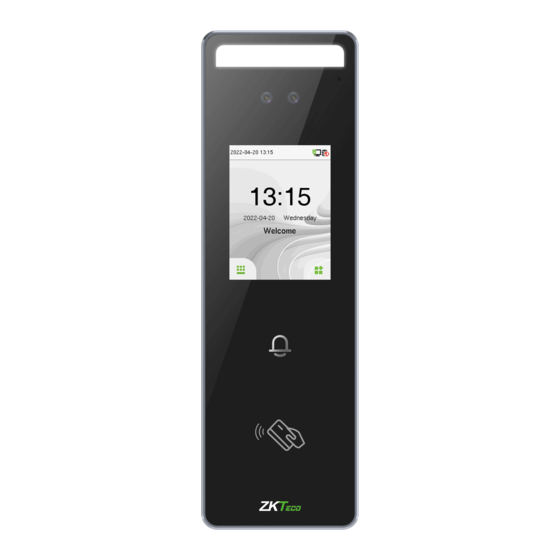

ZKTeco SpeedFace-V3L (Lite) User Manual

Hide thumbs Also See for SpeedFace-V3L (Lite):

User manual (121 pages)

Quick start manual (17 pages)

Installation manual (7 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

Product Name and Model Number

Thank you for choosing our product. Please read the instructions

carefully before operation. Follow these instructions to ensure that the

product is functioning properly. The images shown in this manual are for

illustrative purposes only.

| 1

P a g e

For further details, please visit our Company's website

www.zkteco.com.

User

Table of Contents

Summary of Contents for ZKTeco SpeedFace-V3L (Lite)

Page 1 Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company’s website www.zkteco.com. P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.
Page 2 Copyright © 2023 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco").
Page 3 ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment malfunctions due to any non-compliance of the instructions contained in this manual (ii) in case of...
Page 4 SpeedFace-V3L(Lite) User Manual About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Card, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated Card and face-reader Door Locks.
Page 5 The information which is significant. Care taken to avoid danger or mistakes. The statement or event that warns of something or that serves as a cautionary example. P a g e Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 6: Table Of Contents
.........................36 ONNECTION 8.3 W ........................37 ETTINGS 8.4 C .....................41 LOUD ERVER ETTING 8.5 N ......................42 ETWORK IAGNOSIS 9 SYSTEM SETTINGS ....................43 9.1 D ........................43 ATE AND P a g e Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 7 APP ................79 DDING EVICE ON THE MART 18.2 V .................... 80 IDEO HONE ONNECTION 19 CONNECTING TO SIP★ ..................82 19.1 L ....................83 OCAL ETWORK 19.2 SIP S ........................90 ERVER P a g e Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 9: Electrical Safety
To avoid interference, keep the device far from high electromagnetic radiation  devices, such as generators (including electric generators), radios, televisions, (especially CRT) monitors, or speakers. P a g e Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 10: Operation Safety
3) The warranty service does not cover accidental damage, damage caused by mis-operation, and damage due to independent installation or repair of the product by the user. P a g e Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 11: Instruction For Use
Recommended standing posture and facial expression  Facial Expression Standing Posture Note: Please keep your facial expression and standing posture natural while enrolment or verification. P a g e | 10 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 12: Face Registration
Be careful not to display two faces on the screen. Register one person at a  time. It is recommended for a user wearing glasses to register both faces with and  without glasses. P a g e | 11 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 13: Standby Interface
 menu. After adding a Super Administrator on the device, it requires the Super Administrator’ s  verification before opening the menu functions. P a g e | 12 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 14 The punch state options can also be displayed and used directly on the standby  interface. Tap anywhere on the screen apart from the icons, and six shortcut keys appears on the screen, as shown in the figure below: P a g e | 13 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 15: Virtual Keyboard
Press [123] to switch to the symbolic keyboard.  Tap [@#&] to return to the English keyboard.  Tap [ ] to exit the virtual keyboard.  P a g e | 14 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 16: Verification Mode
Compare the face captured by the camera with the facial template related to the entered user ID. Press on the main interface and enter the 1:1 facial verification mode. Enter the user ID and click [OK]. P a g e | 15 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 17 If an employee registers password and card in addition to the face, the following screen will appear. Select the icon to enter face verification mode. After successful verification, the prompt box displays "Successfully Verified.", as shown below: P a g e | 16 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 18: Card Verification
The 1: N Card Verification mode compares the card number in the card induction area with all the card number data registered in the device; The following is the card verification screen. P a g e | 17 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 19 Enter the user ID and click [OK]. If an employee registers face and password in addition to the card, the following screen will appear. Select the icon to enter card verification mode. P a g e | 18 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 20: Password Verification
Then, input the user ID and press [OK]. If an employee registers face and card in addition to the password, the following screen will appear. Select the icon to enter password verification mode. P a g e | 19 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 21 Input the password and press [OK]. Below are the display screens after entering a correct password and a wrong password, respectively. Verification is successful: Verification is failed: P a g e | 20 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 22: Combined Verification
Procedure to set for Combined Verification Mode  Combined verification requires personnel to register all the different verification  methods. Otherwise, employees will not be able to successfully verify the combined verification process. P a g e | 21 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 23 Personnel ID in the Device. But as the employee has registered only the Face but not the Password, the  verification will not get completed and the Device displays “Verification Failed”. P a g e | 22 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 25 To automatically test whether each module functions properly, Autotest including the LCD Screen, Audio, Microphone, Camera, and Real-Time Clock. To view Device Capacity, Device information, Firmware System Info information and Privacy Policy. P a g e | 24 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 26: User Management
User Management 6.1User Registration Tap User Mgt. on the main menu. 6.1.1Register a User ID and Name Tap New User and enter the User ID and Name. P a g e | 25 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 27: User Role
If the selected user role is the Super Admin, then the user must pass the identity authentication to access the main menu. The authentication is based on the authentication method(s) that the super administrator has registered. P a g e | 26 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 28: Face
If the card has already been registered, the message "Error! Card already  enrolled" appears. The registration interface looks like this: P a g e | 27 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 29: Password
"Password does not match!", where the user needs to re-confirm the password again. The password may contain 6 to 8 digits by default.  P a g e | 28 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 30: Search User
6.3Edit User On the All-Users interface, tap on the required user from the list and tap Edit to edit the user information. P a g e | 29 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 31: Delete User
Delete Face Only: Deletes the face information of the selected user.  Delete Password Only: Deletes the password information of the selected  user. Delete Card Number Only: Deletes the card information of the selected user.  P a g e | 30 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 32: Display Style
6.5Display Style On the Main Menu, tap User Mgt., and then tap Display Style to enter Display Style setting interface. All the Display Styles are shown as below: P a g e | 31 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 34: User Role
On the User Defined Role interface, toggle Enable Defined Role to enable or  disable the user defined role. Tap on Name and enter the custom name of the role.  P a g e | 33 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 35 Role to assign the created roles to the required users. But if there is no super administrator registered in the Device, then the device will prompt "Please enroll super admin first!" when enabling the User Role function. P a g e | 34 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 36: Communication Settings
PC connect to the same network segment. Tap Ethernet on the COMM. Settings interface to configure the settings. P a g e | 35 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 37: Pc Connection
Comm Key facilitates to improve the security of the data by setting up the communication between the device and the PC. Once the Comm Key is set, a password is required to connect the device to the PC software. P a g e | 36 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 38: Wi-Fi Settings
Wi-Fi is enabled by default in the device. If you don't need to use the Wi-Fi network, you can toggle the Wi-Fi to disable the button. P a g e | 37 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 39 Connect network from the searched network to Wi-Fi (OK). list. When the Wi-Fi is connected successfully, the initial interface will display the  Wi-Fi logo. P a g e | 38 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 40 After successfully adding the Wi-Fi manually, follow the same process to search for the added Wi-Fi name. Advanced Setting  On the Wi-Fi Settings interface, tap on Advanced to set the relevant parameters as required. P a g e | 39 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 41 Subnet Mask It can be modified according to the network availability. The Default Gateway address is 0.0.0.0. It can be modified Gateway according to the network availability. P a g e | 40 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 42: Cloud Server Setting
Enable Proxy Server proxy server is set manually when the proxy is enabled. Based on HTTP, transmission encryption and HTTPS identity authentication ensures the security of the transmission process. P a g e | 41 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 43: Network Diagnosis
Tap Network Diagnosis on the Comm. Settings interface. Enter the IP address that needs to be diagnosed and tap Start the Diagnostic Test to check whether the network can connect to the device. P a g e | 42 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 44: System Settings
Tap System on the Main Menu interface to get into its menu options. 9.1Date and Time Tap Date Time on the System interface to set the date and time. P a g e | 43 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 45 For example, if a user sets the time of the device (18:35 on March 15, 2021) to 18:30 on January 1, 2022. After restoring the factory settings, the time of the device will remain at 18:30 on January 1, 2022. P a g e | 44 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 46: Access Logs Settings
Users may disable the function or set a valid value between 1 and 999. The time interval for which the "Successful Verification" Authentication message displays. Timeout(s) Valid value: 1~9 seconds. P a g e | 45 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 47: Face Parameters
To set the time interval for facial template matching as Recognition required. Interval(s) Valid value: 0~9 seconds. 9.3Face Parameters Tap Face on the System interface to go to the Face parameter settings. P a g e | 46 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 48 If a face’s pitch angle exceeds the set value, it will be Face Pitch Angle filtered by the algorithm, i.e., ignored by the terminal thus no registration and comparison interface will be triggered. P a g e | 47 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 49 The larger the value, the more sensitive the system would be, i.e., if a larger value is set, the comparison interface activates with much ease, and the motion detection is frequently triggered. P a g e | 48 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 50: Video Intercom Parameters
Save Photo as After disable this function, face re-registration is Template required after an algorithm upgrade. 9.4Video Intercom Parameters Click Video Intercom Parameters on the System interface. P a g e | 49 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 51: Device Type Settings
Click Device Type Settings on the System interface. Function Description Function Name Description Communication Set the communication protocol to PUSH protocol. Protocol Device Type Set the device as T&A PUSH or A&C PUSH. P a g e | 50 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 52: Security Settings
User ID in the displayed verification User ID Masking result will be replaced with an * to achieve secure protection of sensitive private data. P a g e | 51 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 53: Factory Reset
(this function does not clear registered user data). Tap Reset on the System interface and then tap OK to restore the default factory settings. P a g e | 52 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 54: Personalize Settings
Tap Personalize the Main Menu interface to customize interface settings, voice, bell, punch state options, and shortcut key mappings. 10.1Interface Settings Tap User Interface on the Personalize interface to customize the display style of the main interface. P a g e | 53 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 55 This function can be disabled or set a value within 1-999 minutes. The style of the main screen can be selected according Main Screen Style to the user preference. P a g e | 54 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 56: Voice Settings
Adjust the volume of the device which can be set between Volume 0-100. 10.3Bell Schedules Tap Bell Schedules on the Personalize interface to configure the Bell settings. P a g e | 55 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 57 SpeedFace-V3L(Lite) User Manual New Bell Schedule  Tap New Bell Schedule on the Bell Schedule interface to add a new bell schedule. P a g e | 56 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 58 Delete a Bell  On the All Bell Schedules interface, tap the required bell schedule, tap Delete, and then tap Yes to delete the selected bell. P a g e | 57 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 59: Data Management
Function Description Function Name Description To delete attendance data/access records Delete Access Records conditionally. To delete information and attendance logs/access Delete All Data records of all registered users. P a g e | 58 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 61: Access Control
12.1 Access Control Options Tap Access Control Options on the Access Control interface to set the parameters of the control lock of the terminal and related equipment. P a g e | 60 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 62 Normal Open(NO): It means the door is always left open when electric power is on. Normal Closed(NC): It means the door is always left closed when electric power is on. P a g e | 61 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 63 Reset Access mode, door available time period, normal open time Setting period, master device, and alarm. However, erased access control data in Data Mgt. is excluded. P a g e | 62 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 64: Time Schedule
(maximum up to 50 zones). On the selected Time Zone number interface, tap on the required day (that is Monday, Tuesday, etc.) to set the time. P a g e | 63 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 66 Tap Add Holiday on the Holidays interface and set the holiday parameters. Edit a Holiday  On the Holidays interface, select a holiday item to be modified. Tap Edit to modify holiday parameters. P a g e | 65 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 68 Group 3, the second person is from AC Group 5, and the third person is from AC Group 8. Note: To delete the door-unlock combination, set all Door-unlock combinations to 0. P a g e | 67 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 69: Attendance Search
ID. Once the record search completes. The figure shows the details Tap the record highlighted in green of the selected record. to view its details. P a g e | 68 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 70: Autotest
To automatically test whether the audio files stored Test Voice in the device are complete and the voice quality is good. P a g e | 69 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 71 To test the RTC. The device tests whether the clock works normally and accurately with a stopwatch. Test Clock RTC Touch the screen to start counting and press it again to stop counting. P a g e | 70 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 72: System Information
MCU Version, Manufacturer, and manufacture date. Displays the firmware version and other version Firmware Info information of the device. Privacy Policy Display the device's privacy policy. P a g e | 71 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 73: Connect To Zkbioaccess Software
Server port: Set the server port as of ZKBioAccess (The default is 8088). Software side  Login to ZKBioAccess software, click System > Communication > Communication Monitor to set the ADMS service port, as shown in the figure below: P a g e | 72 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 74: Add Device On The Software
After searching, the list and total number of access controllers will be displayed. Click Add in operation column, a new window will pop-up. Select Attendance Area and Time zone from each dropdowns and click OK to add the device. P a g e | 73 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 75: Add Personnel On The Software
Software Data to the Device to synchronize all the data to the device including the new users. For more details, please refer to the ZKBioAccess User Manual. P a g e | 74 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 76: Connecting To Zkbio Talk Software
ZKBio Talk software. When the device-side video intercom parameters are set correctly, the device automatically pushes the device list on the left, as shown in following figure. P a g e | 75 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 78 When the user clicks the icon to answer the call, the IP address is displayed in green while on the call. The call duration is also displayed just above the icon. P a g e | 77 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 79 This is the Remote open key, used to open the door remotely. The default lock drive time is 5 seconds Note: Only the offline devices can be removed. P a g e | 78 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 80: Connecting To Zsmart App
Tap on System > Video Intercom Parameters > QR Code Binding to show the QR code of the device. Click the icon in the upper right corner. P a g e | 79 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 81: Video Phone Connection
The user can accept or decline the call. After the user accepts the call, it will open the video door phone interface. And then click icon to unlock the door. P a g e | 80 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 82 Click to open the door remotely. The unlocking record is Unlock saved in Me > Message Center. Note: For other specific operations, please refer to the ZSmartAPP User Manual. P a g e | 81 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 83: Connecting To Sip
Tap Monitoring Settings > SIP Settings on the System interface to enter the SIP parameter setting interface. Note: This function needs to be used with the indoor station Vpad A2. P a g e | 82 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 84: Local Area Network Use
Set the IP address on the indoor station,Tap Menu > Advanced > Network > 1. Network > 1. IPv4. Note: In LAN, the IP addresses of the indoor station and the SpeedFace-V3L(Lite) must be in the same network segment. P a g e | 83 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 85 Custom the Punch Status Options  Use your browser to enter the address to log into WebSever, the address is the Serial IP Address:1443, for example: https: //192.168.163.99:1443. P a g e | 84 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 86 Enter the WebSever account and password, the initial account is: admin, password: admin@123. After logging into the interface, click Advanced Settings > SIP Settings > Download Configuration Data to download an intercomm.csv file. P a g e | 85 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 87 Dialing Number: Customize the number of the indoor station, you can enter the value on SpeedFace-V3L(Lite) to call the indoor station quickly for video intercom. Once the form is set up and saved, upload the configuration form inWebServer. P a g e | 86 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 88 Function Description Function Name Description You can customize any character (support Chinese, English, Name numbers, symbols, etc.) that will be displayed on the call page. P a g e | 87 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 91: Sip Server
Once the SIP is set up correctly, a green dot will appear in the upper right corner of the call page to indicate that the SpeedFace-V3L(Lite) is connected to the server. P a g e | 90 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Page 92 Just enter the account number of the indoor station in the call screen of SpeedFace- V3L(Lite) and then click the call icon. For details on the operation and use of the indoor station, please refer to the indoor station usermanual. P a g e | 91 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
