- Page 1 Quick Start Guide SpeedFace-V3L (Lite) Version: 1.0 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.
-
Page 2: Product Overview

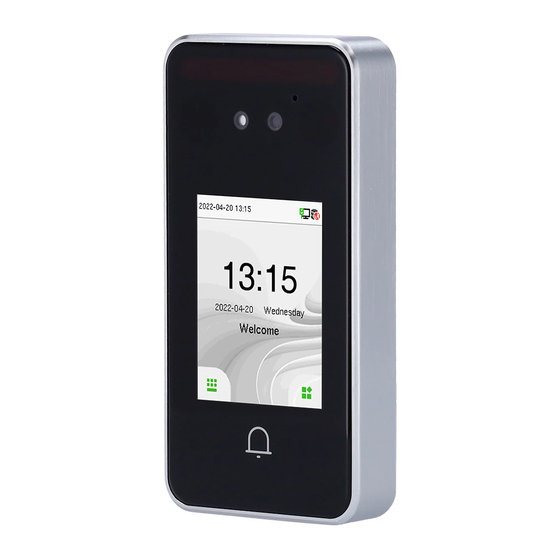

1.Product Overview 2.30" (58.3mm) 0.70" (17.7mm) Terminal Block Flash Camera Microphone Near-Infrared Flash +12V 2.4-inch Touch Screen Card Reading Area Doorbell Button BELL- Speaker BELL+ Reset Button... -
Page 3: Installation Environment
2.Installation Environment AVOID USE OF ANY INSTALL INDOORS AVOID INSTALLATION AVOID DIRECT ONLY NEAR SUNLIGHT HEAT SOURCE GLASS WINDOWS AND EXPOSURE NEAR THE DEVICE 3.Device Installation Attach the mounting template sticker to the wall, and drill holes ① according to the mounting paper. Fix the backplate on the wall using wall mounting screws. -
Page 4: Standalone Installation
4.Standalone Installation Exit Button Bell Door Sensor TCP/IP Lock ZKBioAccess 5.Terminal Block Network Interface Exit Button Power In +12V Sensor Lock BELL- Bell BELL+... -
Page 5: Power Connection
6.Power Connection AC Adapter DC12V Recommended AC adapter: 12V ± 10%, at least 1500mA. Use an AC adapter with a higher current rating to share power with the other devices. 7.Ethernet Connection Connect the device and the computer software over an Ethernet cable. As shown in the example below: ZKBioAccess IP address... -
Page 6: Lock Relay Connection
8.Exit Button, Door Sensor & Bell Connection Exit Button BELL- Door Sensor BELL+ Bell 9.Lock Relay Connection The system supports Normally Opened Lock and Normally Closed Lock. The NO LOCK (normally opened at power on) is connected with 'NO' and 'COM' terminals, and the NC LOCK (normally closed at power on) is connected with 'NC' and 'COM' terminals. -
Page 7: User Registration
10.User Registration Click to enter the Main Menu screen. When a super administrator is set up, administrator verification is required when entering the menu. For security purposes, it is recommended to register a super administrator when using it for the first time. Method 1: Registering on the device Click >... - Page 8 Click [Access] > [Device] > [Device] > [Search Device] to search the device on the software. When an appropriate server address and port is set on the device, the searched devices are displayed automatically. Delete Export Search Device Device Control Set up Communication Refresh...
- Page 9 Method 3: Register on the phone Once the ZKBioAccess software is installed, the users could enroll their face via a browser application on their own mobile phone. Click [Personnel] > [Parameters], input ‘’http://Server address: Port’’ in the QR Code URL bar. The software will automatically generate a QR code.
- Page 10 11.Ethernet and Cloud Server Settings Click > [COMM.] > [Ethernet] to set the network parameters. If the TCP/IP communication of the device is successful, the icon will be displayed in the upper right corner of the standby interface. Click > [COMM.] > [Cloud Server Setting] to set the server address and server port, that is, the IP address and port number of the server after the software is installed.
-
Page 11: Access Control Setting
12.Access Control Setting Click > [Access Control] to enter the access control management interface and set relevant parameters of access control. 13.Attendance Record Click > [ Attendance Record] to enter the record query interface, input the user ID and select the time range, the corresponding attendance record will be displayed. - Page 12 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2023 ZKTECO CO., LTD. All Rights Reserved.
