Lutron Electronics HOMEWORKS seeTouch SKD-1B Installation Instructions page 2

Installation
1.
Remove wallplate and wallplate adapter from key-
pad (if applicable).
2.
Remove currently installed button kit (if applicable).
Remove button kit from keypad by gently prying it
from the top. See Button Kit Removal.
3.
Snap on the button kit by lining up the two tabs on
the bottom of the button kit with the two slots in the
keypad just above the lower keypad mounting
screw. Using your thumbs, press in the bottom, and
then snap in the top of the button kit.
4.
Attach Lutron Claro
®
adapter and wallplate.
a. Loosely install keypad mounting screws.
b. Tighten wallplate adapter mounting screws
snug.
c. Tighten keypad mounting screws until
wallplate adapter is flush to wall (do not
over-tighten).
d. Snap wallplate onto wallplate adapter, and
verify that button kit is not submerged.
e. If button kit is submerged, loosen mounting
screws appropriately.
Technical and Sales Assistance
If you need assistance, call the toll-free Lutron
Technical Support Center. Please provide exact
model number when calling.
(800) 523-9466 (U.S.A., Canada and the Caribbean)
Other countries call:
Tel: (610) 282-3800
Fax: (610) 282-3090
Visit our Web site at www.lutron.com
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299
Made and printed in the U.S.A. 4/03 P/N 043-100 Rev. B
or Satin Colors wallplate
TM

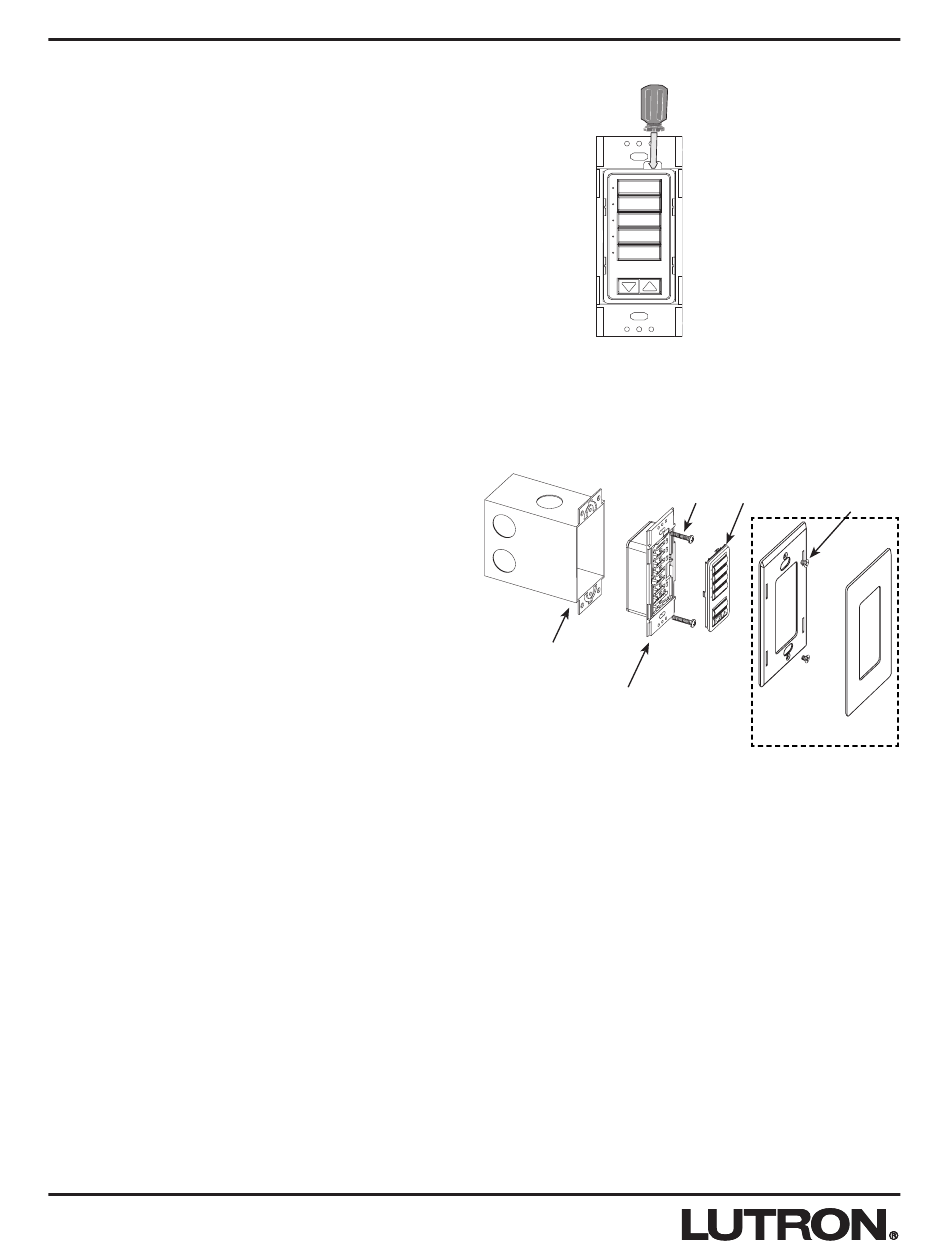

Button Kit Removal
Mounting Diagram
Keypad
Mounting
Wallbox
Keypad
LIMITED WARRANTY
Lutron will, at its option, repair or replace any unit that is defective in materials or manufac-
ture within two years after purchase. For warranty service, return unit to place of purchase or
mail to Lutron at 7200 Suter Rd., Coopersburg, PA 18036-1299, postage pre-paid. Telephone
the Lutron Technical Support Center toll free at 800-523-9466. After the two year period, a
pro-rated warranty applies to this product until eight years after the purchase. For more infor-
mation regarding this warranty contact your Lutron representative.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND THE
IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED TO TWO YEARS FROM PUR-
CHASE. THIS WARRANTY DOES NOT COVER THE COST OF INSTALLATION,
REMOVAL OR REINSTALLATION, OR DAMAGE RESULTING FROM MISUSE, ABUSE,
OR IMPROPER OR INCORRECT REPAIR, OR DAMAGE FROM IMPROPER WIRING OR
INSTALLATION. THIS WARRANTY DOES NOT COVER INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES. LUTRON'S LIABILITY ON ANY CLAIM FOR DAMAGES ARISING OUT
OF OR IN CONNECTION WITH THE MANUFACTURE, SALE, INSTALLATION, DELIVERY,
OR USE OF THE UNIT SHALL NEVER EXCEED THE PURCHASE PRICE OF THE UNIT.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state. Some states do not allow limitations on how long an implied warranty lasts,
so the above limitation may not apply to you. Some states do not allow the exclusion or limi-
tation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.This product may be covered by one or more of the following U.S. patents:
4,835,343; D436,930; D453,742; D456,783; D461,782; D465,460 and corresponding foreign
patents. U.S. and foreign patents pending. Lutron, Claro, and HomeWorks are registered
trademarks and Satin Colors and seeTouch are trademarks of Lutron Electronics Co., Inc.
© 2003 Lutron Electronics Co., Inc.
Using a small
flat blade
screwdriver,
gently pry
from top.
Adapter
Button
Mounting
Kit
Screws
Screws
Wallplate/Adapter purchased
separately.
