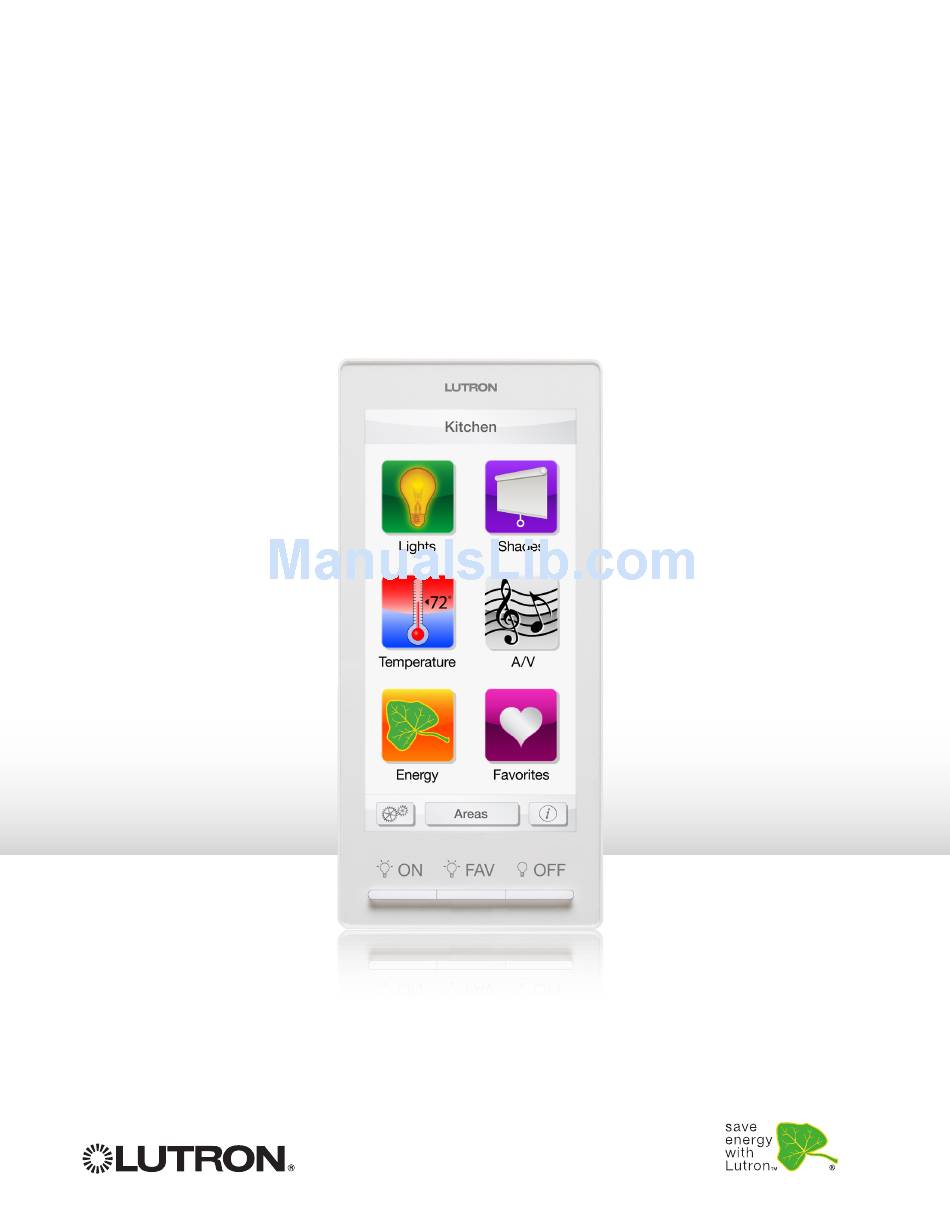

- Page 1 HomeWorks ® Dynamic Keypad Quick Reference Guide Installer Notes...
-
Page 2: Table Of Contents
HomeWorks ® Dynamic Keypad Quick Reference Guide Installer Notes Table of Contents Device Information ..............2 Activation ..................3 A/V Integration ................3 Firmware Upgrading ..............4 Information ................4 Troubleshooting .................5 Restoring Factory Default Settings ..........6... -
Page 3: Device Information
Device Information The Dynamic Keypad is capable of either wired (QS) and wireless operation (Clear Connect RF) for ease of installation. A custom mounting frame or bracket, which you’ll need for installation, is included. Kitchen USB 2.0 mini-B for Lights Shades firmware upgrades 9D10... -
Page 4: Activation
Activation After the Dynamic Keypad is powered, it will auto-detect the type of link—either wireless (Clear Connect RF) or wired (QS). ™ When an RF system is in addressing mode, the Dynamic Keypad will show the addressing screen. When instructed by the PC programming tool, press the button. -
Page 5: Firmware Upgrading
® software to upgrade the firmware in the Dynamic Keypad. Make sure the device running the HomeWorks QS Designer software is USB 2.0 mini-B for plugged into the mini-B USB port on the firmware upgrades Dynamic Keypad that you’re upgrading. -
Page 6: Troubleshooting
Troubleshooting The maintenance screen is for advanced users only. It was created for gathering detailed device information, logs, and advanced configuration settings. Do not modify any of the maintenance settings unless you have been properly trained. To access the Maintenance screen, hold the ON and OFF buttons Device Info contains detailed software down simultaneously for... -
Page 7: Restoring Factory Default Settings
Release the button and immediately (with ½ second) triple tap it Temperature again. All LEDs will rapid-flash again. After you return the Dynamic Keypad to factory settings you’ll need Energy Favorites to reactivate and transfer in the HomeWorks QS system. Areas... - Page 8 Lutron Electronics Co., Inc. 7200 Suter Road Coopersburg, PA 18036-1299 World Headquarters 1.610.282.3800 24/7 Technical Support Center 1.800.523.9466 Customer Service 1.888.588.7661 ©10/2011 Lutron Electronics Co., Inc. P/N 368-2371 REV A...
