Installation Instructions
Please Read Before Installing
Overview
The STWD-1B, -2B, -3B, -3BRL, -4B, -4FS, -4S, -4SIR,
-5B, -5FS, -5BRL, -6B, -6BRL, and -7B keypads are for
use with HomeWorks systems. The keypad buttons
are programmed with a personal computer using the
HomeWorks Utility.
Up to 32 keypads, each with a unique address, may
be connected to each keypad link on the HomeWorks
processor. A maximum of 300 LEDs may be connect-
ed per processor. Each seeTouch keypad counts as
15 LEDs. To add capacity beyond 300 LEDs, refer to
the section about the HWI-PS in the HomeWorks
Technical Reference Guide (P/N 366-963).
Important Notes
Codes: Install in accordance with all local and nation-
al electrical codes.
Environment: Ambient operating temperature:
0-40°C, 32-104°F, 0-90% humidity, non-condensing.
Indoor use only.
Wallplates: Lutron Claro
wallplates are recommended for best color match and
aesthetic appearance. Do not paint controls or
wallplates.
Cleaning: To clean, wipe with a clean damp cloth.
DO NOT use any chemical cleaning solutions.
Wallboxes: Lutron recommends using 3 1/2 in.
(89mm) deep wallboxes for easier installation.
Keypad Wiring: Keypad wiring may be in a daisy-
chain, star or t-tap configuration. Each home run on a
link may be up to 1,000 ft. (305m) and may contain up
to 10 keypad devices. The total length of wire on that
link (all home runs) may be up to 4,000 ft. (1220m).
Up to 32 keypad devices may be placed on each
processor link configured as a keypad link in the
HomeWorks Utility. An external power supply may be
required depending on the total current draw of all
keypad devices on the processor.
and Satin Colors
®
TM

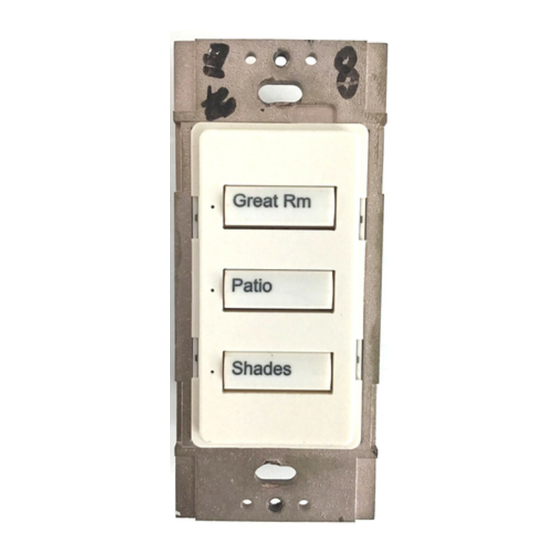

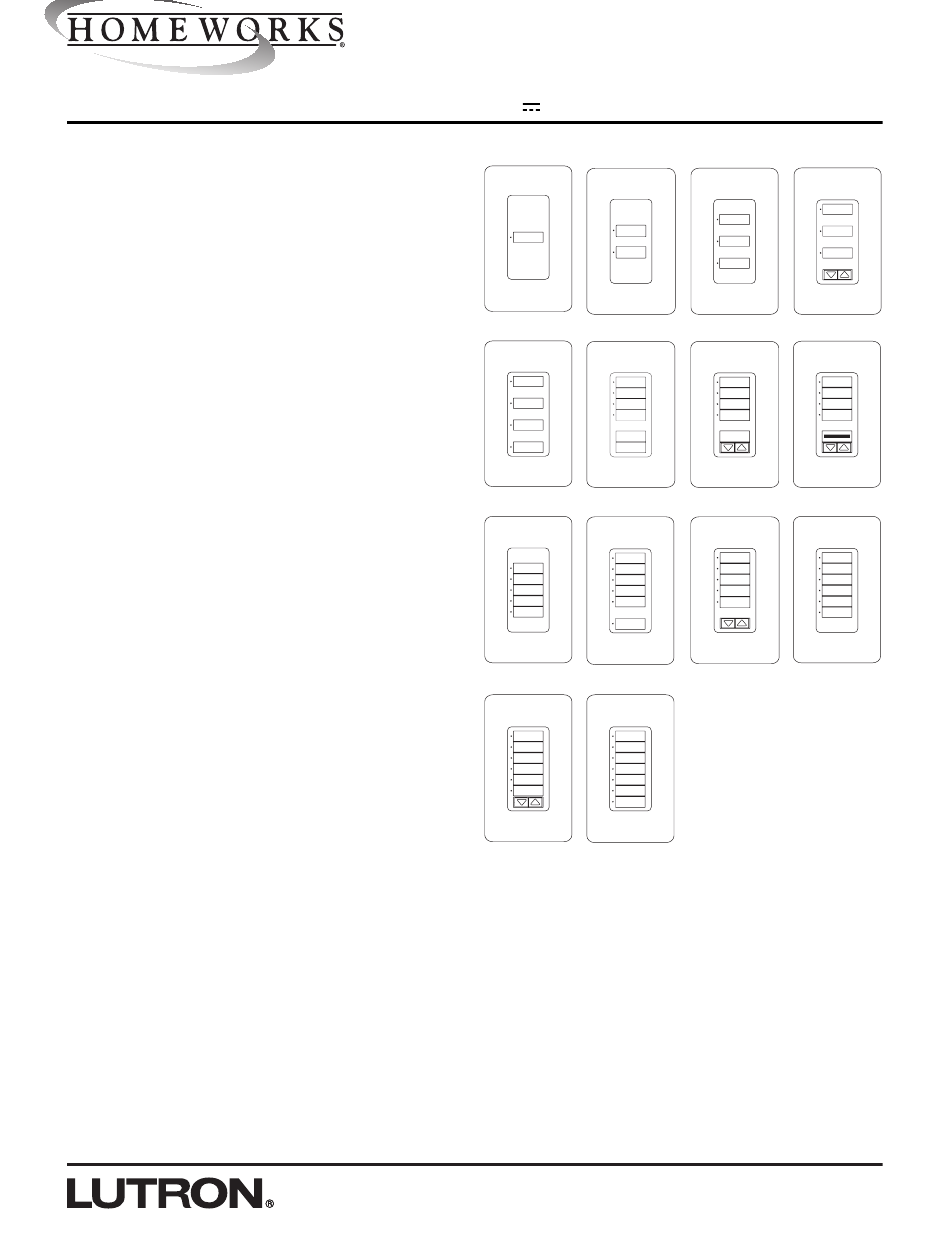

Designer-style Wired seeTouch
STWD-1B, -2B, -3B, -3BRL, -4B, -4FS, -4S,
-4SIR, -5B, -5FS, -5BRL, -6B, -6BRL, -7B
15 V
, 77 mA Class 2/PELV
STWD-1B*
STWD-2B*
STWD-4B*
STWD-4FS*
STWD-5B*
STWD-5FS*
STWD-6BRL*
STWD-7B*
* Wallplate/Adapter purchased separately.
Keypads
TM
STWD-3B*
STWD-3BRL*
STWD-4S*
STWD-4SIR*
STWD-5BRL*
STWD-6B*
1
Advertisement
Table of Contents
Related Manuals for Lutron Electronics HOMEWORKS seeTouch STWD-1B
Summary of Contents for Lutron Electronics HOMEWORKS seeTouch STWD-1B
- Page 1 Designer-style Wired seeTouch Keypads STWD-1B, -2B, -3B, -3BRL, -4B, -4FS, -4S, Installation Instructions -4SIR, -5B, -5FS, -5BRL, -6B, -6BRL, -7B Please Read Before Installing 15 V , 77 mA Class 2/PELV Overview STWD-1B* STWD-2B* STWD-3B* STWD-3BRL* The STWD-1B, -2B, -3B, -3BRL, -4B, -4FS, -4S, -4SIR, -5B, -5FS, -5BRL, -6B, -6BRL, and -7B keypads are for use with HomeWorks systems.
- Page 2 Installation state saturation voltage of less than 2 VDC and an off-state leakage of less than 50 µA. Dry contact or Disconnect power to the keypads by turning OFF all solid-state outputs must be capable of switching circuit breakers connected to the HomeWorks 15 VDC at 10 mA.
- Page 3 Keypad Addressing DIP Switches Keypad Front View Set DIP switches 1-5 to give the keypad a unique HomeWorks system address from 1 to 32. (wallplate, wallplate adapter, and ® button kit removed) Address Address Address Address Switch Settings Switch Settings Switch Settings Switch Settings DIP switches...
- Page 4 D466,484 and corresponding foreign patents. U.S. and foreign patents pending. Lutron, Fax: (610) 282-3090 Claro, and HomeWorks are registered trademarks and Satin Colors and seeTouch are trade- marks of Lutron Electronics Co., Inc. Visit our Web site at www.lutron.com © 2003 Lutron Electronics Co., Inc.
