9. System Learning

Open the cover and connect wires .
Mounted the receiver and transmitter on the proper position.
Ensure there are no obstacles between receiver and transmitter.
For optimal efficiency, the receiver and transmitter should be properly aligned.
Power-up the photocells and make sure the LED light on receiver and transmitter are ON

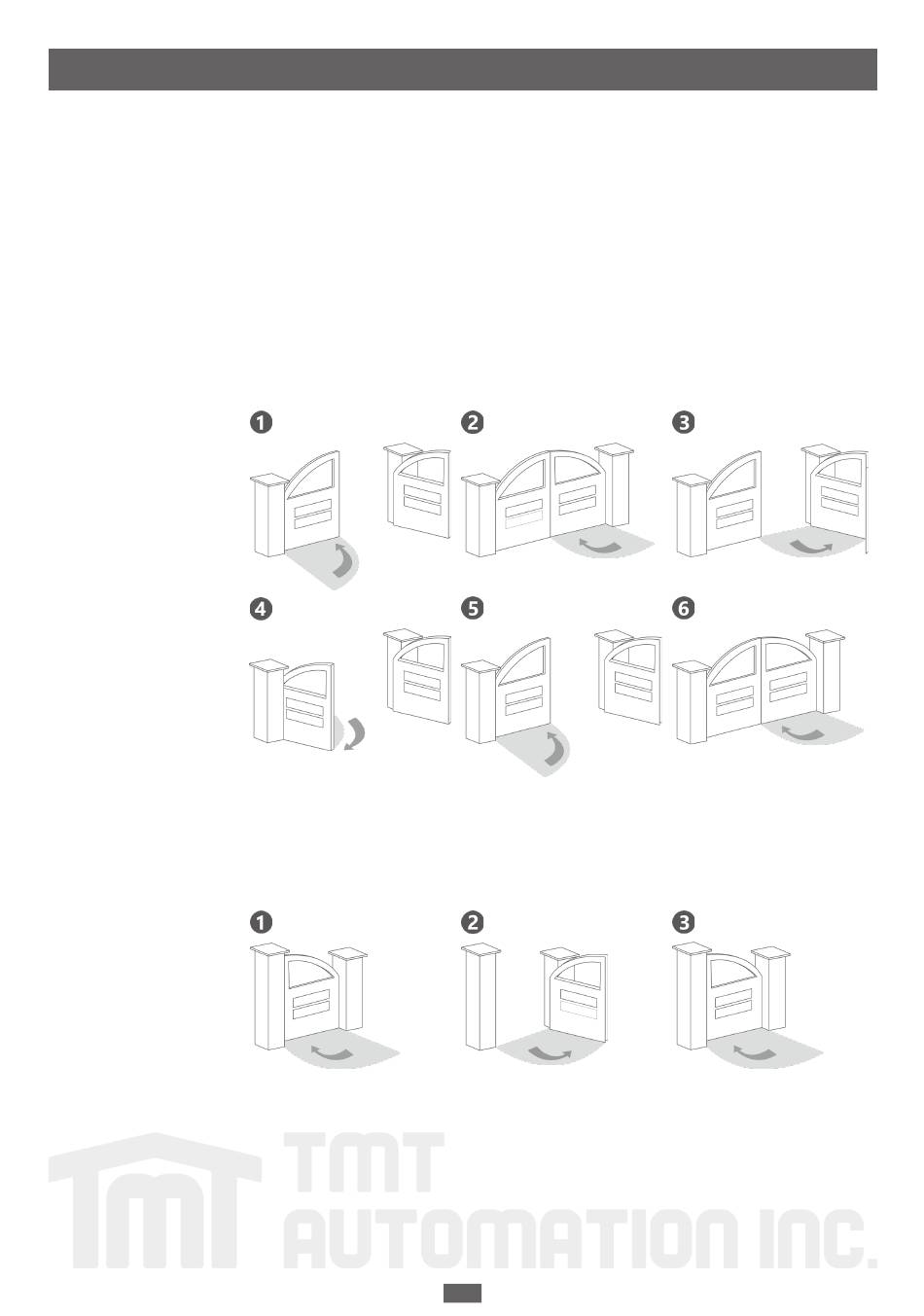

• Dual Gate Movement During Systen Learning Procedure:
1. Motor 2 close
2. Motor 1 close
3. Motor 1 open
4. Motor 2 open
5. Motor 2 close
6. Motor 1 close
• Single Gate Movement Single Systen Learning Procedure:
1. Motor close
2. Motor open
3. Motor close
