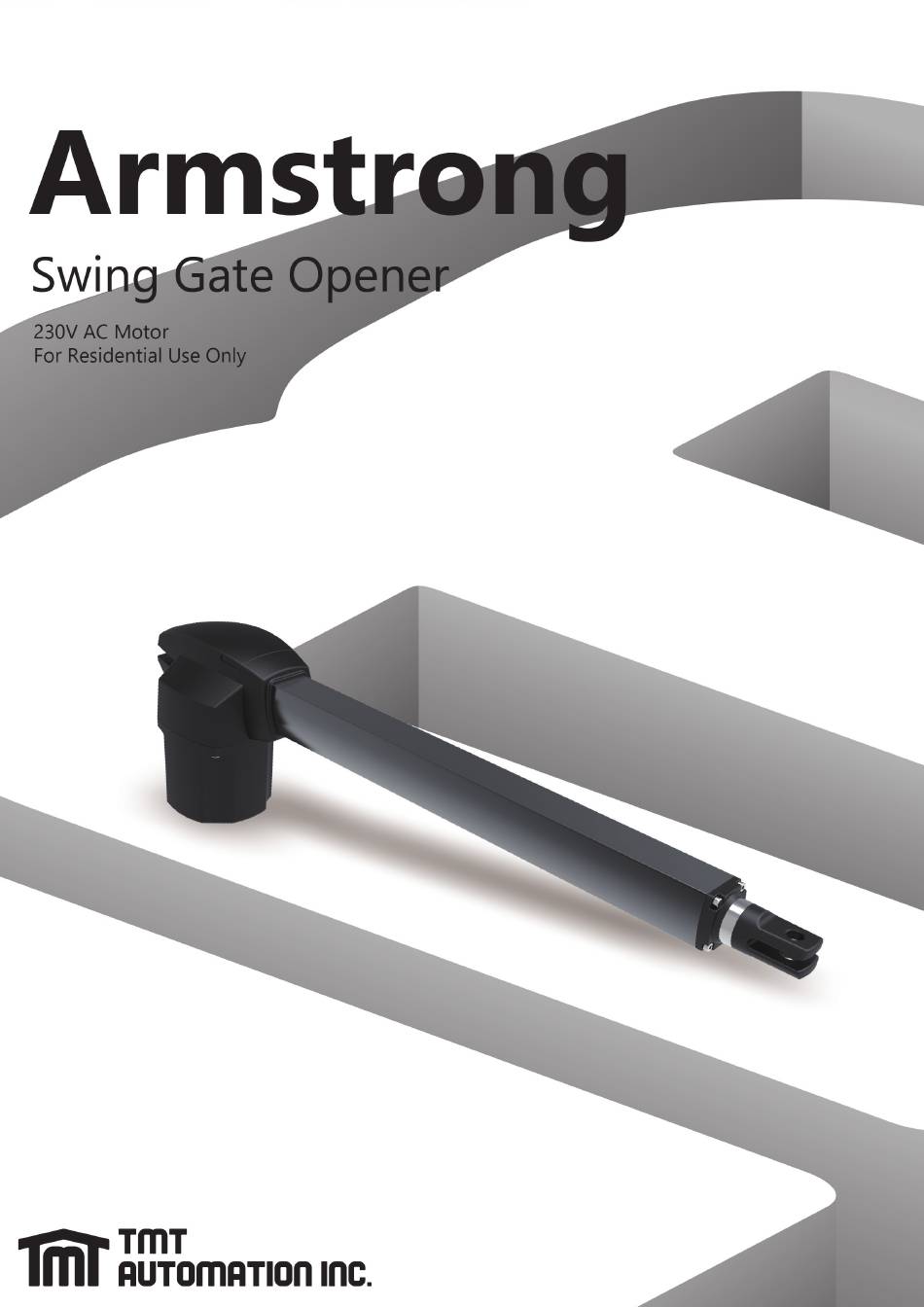

TMT Automation Armstrong Manual

Swing gate opener
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Armstrong and is the answer not in the manual?

Questions and answers

Related Manuals for TMT Automation Armstrong

Summary of Contents for TMT Automation Armstrong

  • Page 2: Table Of Contents

    Contents I. General Safety Warnings And Precautions II. Product Description And Tended use 1. Kit Content ……………………………………………………… 2. Dimensions …………………………………………………… III. Installation 1. Pre-Installation Checks …………………………………… 2. Installation Of The Motors ……………………………… IV. Commissioning 1. A301U Control Board ……………………………………… 2. Motor Wiring ………………………………………………… 3.

  • Page 3: General Safety Warnings And Precautions

    The manufacturer is not responsible for improper installation and failure to comply with local electrical and building regulations. Keep all the components of Armstrong system and this manual for further consultation. In this manual, please pay extra attention to the contents marked by the symbol: Be aware of the hazards that may exist in the procedures of installation and operation of the gate-automated system.

  • Page 4: Product Description And Tended Use

    II. Product Description And Tended use 1. Kit Content • Motos • Hardware • Accessories • REF DESCRIPTION QUANTITY Motor 1 (Master) including Motor 2 (Slave) Front bracket R-type pin Metal plug Rear bracket A301U control board Flashing light (Optional) Photocells (Optional) Remote...

  • Page 5: Dimensions

    2. Product Usage Limits 3. Dimensions • Armstrong300 • Armstrong400 • Armstrong600...

  • Page 6: Installation

    III. Installation The Armstrong 300 gate openers are applicable to per leaf of 3/4 meters in width and 300/400 kg in weight which can be opened up to 110 degrees primarily for residential use; where the performance shall be influenced by the factors such as gate dimension, weight and climate that the driven torque is necessarily to be adjusted properly.

  • Page 7: Installation Of The Motors

    • Open Inward 11. “C” value is 139mm. 12. “D” can be measured from the gate easily. 13. “A” = “C” + “D” 14. The value of “B” can be calculated from the value of “A” and the leaves opening angle. Ex.
  • Page 8 7. Place 4 post brackets on the surface to be installed and mark the drilling points, then drill minimum diameter of 8mm holes by four on the mounting surface to be installed and fasten up the brackets with screws and washers. (Figure2)Make sure to leave enough space when the gate is opening.

  • Page 9: Commissioning

    IV. Commissioning 1. A301U Control Board...

  • Page 10: Motor Wiring

    2. Motor Wiring • Time Mode • Limit Switch Mode Refer to parameter Refer to parameter table-parameter F-A1-0. table-parameter F-A1-1 3. Wiring Of Accessories • Safety Device 1 Wiring • Safety Device 2 Wiring • Auxiliary Device Wiring • 12V Available To Power Accessories Dkey : Double gate Open/Stop/Close/Stop Skey : Single gate Open/Stop/Close/Stop...

  • Page 11: Remote Learning

    4. Remote Learning • Pairing Remotes Press the RF button for 2 seconds and the LED display show Press any key of the remote and the blink Wait for 10 seconds till the goes OFF • Delete a Paired Remote Press the RF button twice and the LED shows Press any key of the paired remote and the LED show blinks for 3 times.

  • Page 12: Safety Device Logic

    6. Safety Device Logic • F5 PH1 functions Paramter Function Gate Status Reaction F5-0 PH1 function OFF No function No function (Default setting) Gate fully close Not allow to open Gate fully open Fast closing F5-1 Photocell-Close Stop during cycle Not allow to close Closing phrase Open...
  • Page 13 • F6 PH2 functions Paramter Function Gate Status Reaction F6-0 PH2 function OFF No function No function (Default setting) Gate fully close Not allow to open Gate fully open Fast closing F6-1 Photocell-Close Stop during cycle Not allow to close Closing phrase Open Opening phrase...

  • Page 14: Programming

    7. Programming • Indication On The LED Display Indication of the LED display N-L: System learning not been done yet D-G: Double gate S-G: Single gate RFL: Remote learning DKY: Delete single remote DAL: Delete all remotes OPN: Open CLS: Close STP: stop Indication example on the LED display •...

  • Page 15: Parameter Table

    8. Parameter Table Setting Function Paramters Description A1-0 Limit switch mode Limit mode A1-1 Time mode (default setting) A2-0 Standard mode (default setting) Operation mode A2-1 Condominium mode A2-2 Holiday mode A3-0 Single gate Double/Single gate A3-1 Double gate (default setting) A4-0 Control box (default setting) LED direction...
  • Page 16 Setting Function Paramters Description E3-0 (default setting) E3-1 0.1 second E3-2 0.2 second Reverse time when E3-3 0.3 second closing E3-4 0.4 second E3-5 0.5 second E3-6 0.6 second E4-0 0.4 second Ignore over-current time E4-1 0.5 second when start E4-2 (default setting) E5-0...
  • Page 17 Setting Function Paramters Description F3-0 F3-1 F3-2 F3-3 F3-4 Pedestrian mode F3-5 F3-6 F3-7 F3-8 F4-0 0 second (default setting) F4-1 1 second F4-2 2 second F4-3 3 second Flashing light – Pre flashing F4-4 4 second F4-5 6 second F4-6 8 second F4-7...
  • Page 18 Setting Function Paramters Description H2-0 Function OFF (default setting) Step by step Open/Stop/Close/ H2-1 Stop H2-2 Open/Stop/Close H2-3 Ped mode H2-4 Open B Button H2-5 Stop H2-6 Close H2-7 Lamp H2-8 Auto-closing switch H2-9 Holiday mode switch H3-0 Function OFF (default setting) Step by step Open/Stop/Close/ H3-1 Stop...
  • Page 19 Setting Function Paramters Description J2-0 Function OFF Double gate Open/Stop/Close/Stop J2-1 (default setting) J2-2 Single gate Open/Stop/Close/Stop J2-3 Ped mode J2-4 Open Dkey terminal J2-5 Stop(NO) J2-6 Stop(NC) J2-7 Close J2-8 Lamp J2-9 Auto-closing switch J2-10 Holiday mode switch J3-0 Function OFF J3-1 Double gate Open/Stop/Close/Stop...
  • Page 20 Condominium Mode Step by step Ped button button Open till fully open No effect. When Ph2 is triggered, When Ph1 is triggered, Stop in the and reload Auto-closing auto-closing stops untill auto-closing stops untill middle auto-closing time countdown the obstacle is removed. the obstacle is removed.

  • Page 21: System Learning

    9. System Learning Open the cover and connect wires . Mounted the receiver and transmitter on the proper position. Ensure there are no obstacles between receiver and transmitter. For optimal efficiency, the receiver and transmitter should be properly aligned. Power-up the photocells and make sure the LED light on receiver and transmitter are ON •...

  • Page 22: Smartphone Control With Chow! Mobile Application

    Smartphone Control With CHOW! Mobile Application 1. Wi-Fi Box WB3 LED Display R Button (press to restart) P Button Terminals • LED Indicators Description BLUE : Blue LED is a indicator for the Bluetooth connection. GREEN : Green LED is a indicator for the state of device. : Red LED blinks indicates wrong ful operations or system errors.
  • Page 23 • Connect the Wifi/Bluetooth Module to the Chow! App Please turn ON the Bluetooth function of your smartphone 1. Tap the (+) icon to add new device. 2. Tap the type of your device to add a new device. 3. Please check if the product has the WBT sticker. 4.

  • Page 24: Technical Specifications

    3. Enter the account which you are going to share. 4. Choose the device you are going to share and tap next. a. The Owner can decide the permission of device sharing. A manager can share and operate this device, but a normal user can only operate it.
