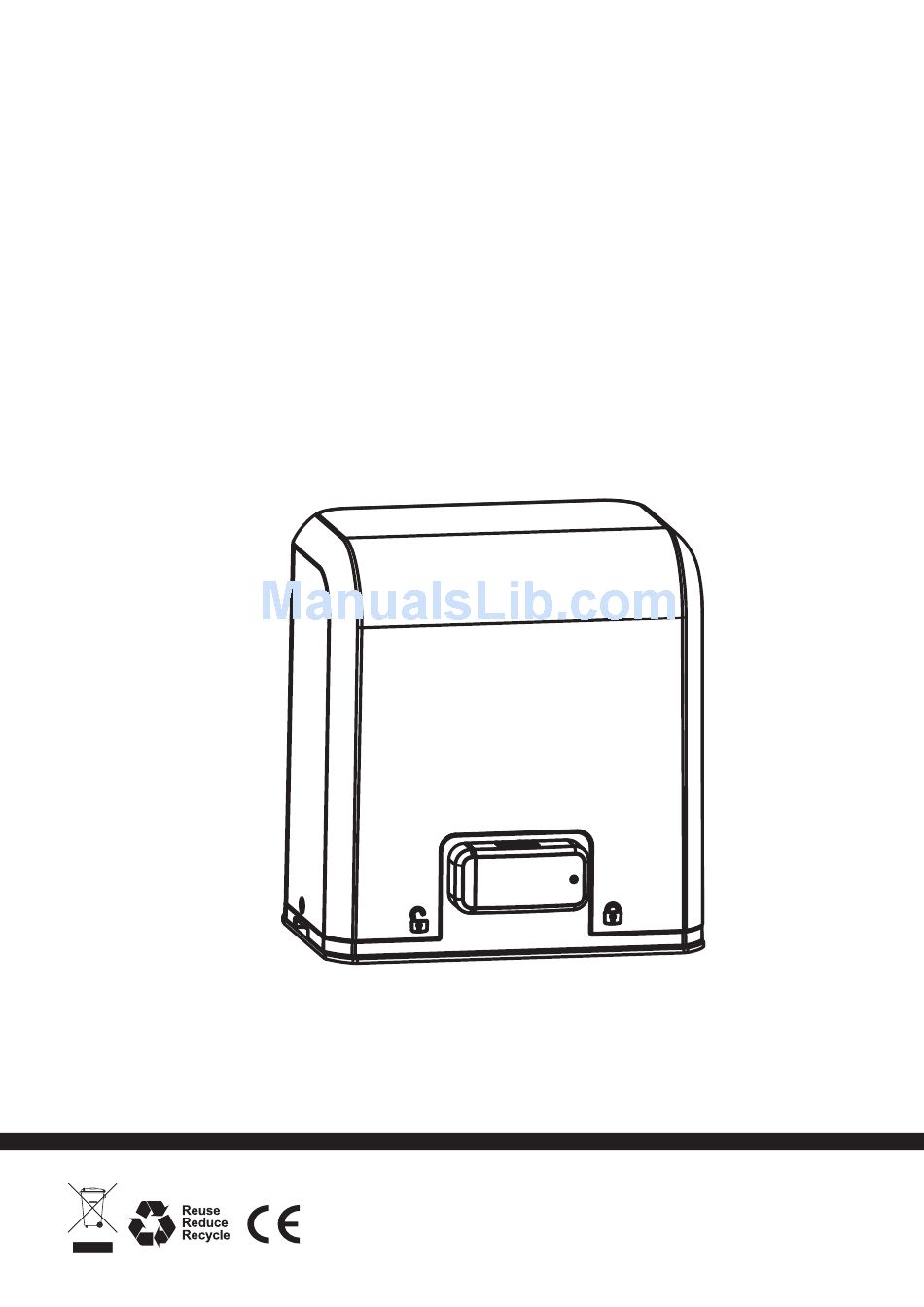

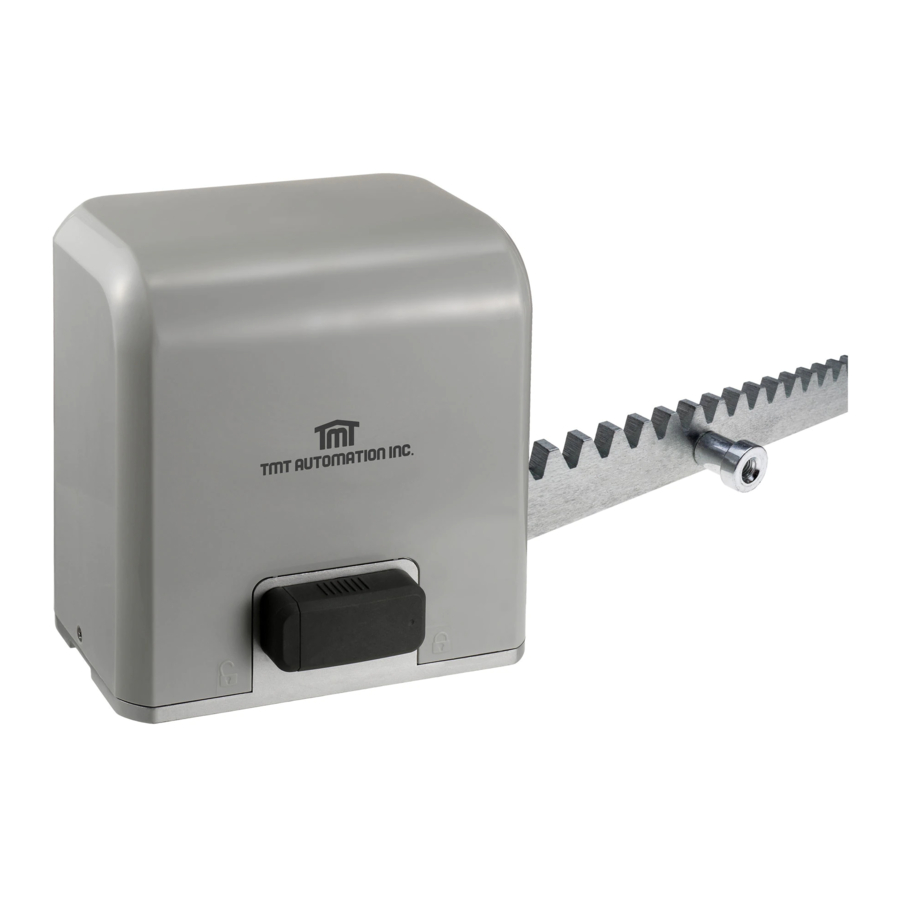

- Page 1 BOXER SERIES SLIDING GATE OPENER USER MANUAL...
-
Page 3: Table Of Contents
INDEX 1. GENER SAFETY PRECUATION 2. INSTALLATION 2.1 STANDARD INSTALLATION DEMONSTARTION 2.2 DESCRIPTION OF DEVICE 2.3 DIMENSION OF DEVICE 2.4 INSTALLATION OF GEAR MOTOR AND GEAR RACK 2.5 CHECKING FOR INSTALLATION 2.6 EMERGENCY RELEASE 3. SETUP AND FUNCTION SETTING 3.1 WIRE CONNECTION 3.2 TRANSMITTER MEMORIZATION 3.3 SYSTEM LEARNING AND LED DISPLAY 3.4 PROGRAMMABLE FUNCTION SETTINGS... - Page 4 (11) Only command the remote when you have a full view of the gate. TMT AUTOMATION INC. shall not be liable for any injury, damage, or any claim to any person or property which may result from improper use or installation of this system.
-
Page 5: Description Of Device
2. INSTALLATION: 2.1 STANDARD INSATLLATION DEMONSTARATION 1. 24Vdc Sliding motor 2. Transmitter 3. safety photo Sensor 4. Flashing light 2.2 DESCRIPTION OF DEVICE a. Operation gear e. Release device b. Limit switch device f. Control panel c. 24Vdc motor g. Terminals of devices d. - Page 6 2.3 DIMENSTION OF DEVICE 2.4 INSTALLATION OF MOTOR GEAR AND GEAR RACK BOXER SERIES SLIDING GATE OPENER USER MANUAL...
-
Page 7: Emergency Release
2.5 CHECKING FOR INSTALLATION 2.6 EMERGENCY RELEASE In the case of power failure for emergency release of the motor, please follow the procedure as below: Step1. Push the lid of release chamber and move rightward Step2. Insert the key and turn clockwise to unlock the device Step3. -
Page 8: Setup And Function Setting
3. SETUP AND FUNCTION SETTING: 3.1. WIRE CONNECTION If the Led display is in normal performing refer to “4.2.1”, you can control the gate by either transmitters or the button on the board: “UP”-clockwise moving, “SET”- stop and “DOWN”- Counterclockwise moving. PB1, KS1=: LED1 Photocells LED2 Photocells... -
Page 9: System Learning And Led Display
3.2 TRANSMITTER MEMORIZING Press “RF-learn” button for 2 seconds, and the Blue LED will be on; then press the transmitter (A) button; The Blue LED will blink twice and stay on for 10 seconds then be off. And the remote memorize has completed. LED1 LED2 LED3... -
Page 10: Programmable Function Settings
3.4 PROGRAMMABLE FUNCTION SETTINGS LED Display Definition Function Value Description 1. The function can adjust the dir Options of Gate F1-0 Clockwise Opening ection of gate opening. Opening direction F1-1 Counterclockwise Opening 2. The factory setting is "F1-1". F1-0 F1-1 Clockwise Counterclockwise Gate Closed... -
Page 11: Testing And Checking
● F3 function settings: Logic F3-1 The reactions of the photocells when detecting obstacles Gate Status Photocell 2 Photocell 1 Photocell 1/ Photocell 2 Closed Stop opening No effect Stop opening Open No effect Reloads automatic closing time Stop during moving Reloads automatic closing time Stop opening Closing... -
Page 12: Sw2/Sw6 Setting
3.6 SW2/SW6 SETTING: Stop Default Device Description Remark 1 – ON Switch to ON if Ph1 is not connected; Otherwise, 1 & 2 must switch to ON Photocell-1 switch to OFF if Ph1 is connected if Ph1 & Ph2 are not 2 –... -
Page 13: H2 Photocell Data Sheet
4.2 H2 PHOTOCELL DATA SHEET Detection type Through beam Operating distance 30 meters Response time 100ms Input voltage AC/DC 12~24V Operating Temperature -20℃~+60℃ Protection class IP66 Dimension 59mm * 87mm * 38mm 4.3 TM3 TRANSMITTER DATA SHEET Application Radio transmitter Frequency 433.92Mhz Coding... -
Page 14: Wire Connection Of H2 Photocell (Safety Beam)
5. ADDITIONAL INFORMATINO: 5.1 WIRE CONNECTION OF H2 PHOTOCELL (SAFETY BEAM) Figure 5(1) Figure 5(2) Lens Beam Alignmnet N.C. Indicator N.O. Power Led Indicator DC (12~24V) Terminal Block Power Terminal Block DC (12~24V) Figure 5(3) CLOSE LOOP 1 2 3 4 5 DC (12-24V) GND NO NC BOXER SERIES SLIDING GATE OPENER USER MANUAL... -
Page 15: Wire Connection And Setting Of Rb1 External Reciever Box
5.2 WIRE CONNECTION AND SETTING OF RB1 EXTERNAL RECIEVER BOX RB1 Receiver Box Orange -Signal 1 Output 1 (Normally Open Relay) Blue -GND Yellow -Signal 2 Output 2 (Normally Open Relay) Green -GND -12V/24V 12V - 24V AC/DC Black -GND 1. - Page 16 Key Release Silence EZ Instal Low Voltage Durability 24V power supply Solid material apply Manual release device Worm gear application Easy installation for great safety with lasting usage with easy use and give silence operation and user friendly highly protection interface 34100-085-D...
