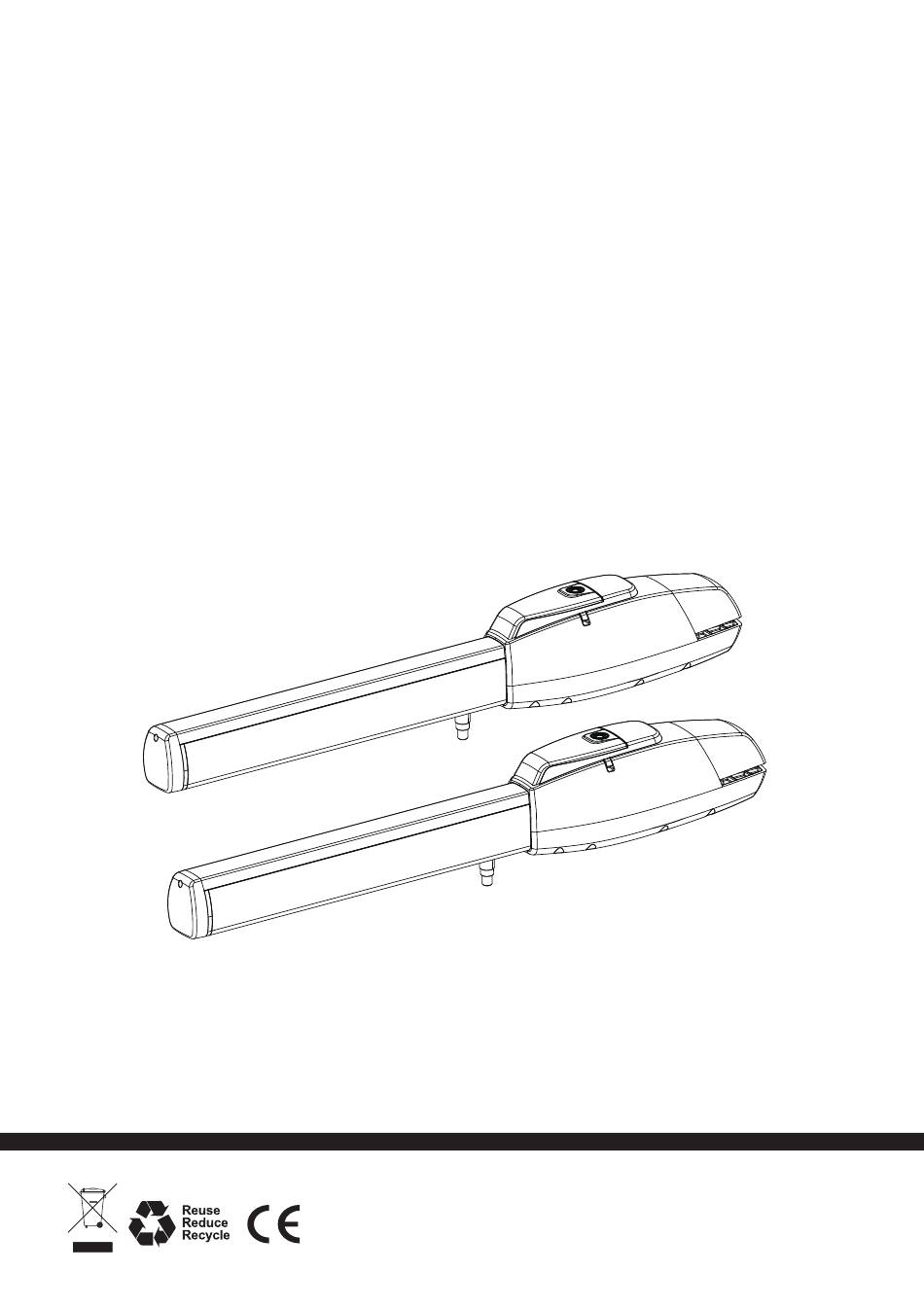

- Page 1 MASTIFF300L SWING GATE OPENER USER MANUAL...
- Page 3 INDEX GENERAL SAFETY PRECAUTION INSTALLATION STANDARD INSTALLATION DIMENSION CHART MOTOR FIXING WIRE CONNECTION TECHNICAL FEATURES A. TECHNICAL FEATURES B. DIMENSION...
-
Page 4: General Precaution
(11) Only command the remote when you have a full view of the gate. TMT AUTOMATION INC. shall not be liable for any injury, damage, or any claim to any person or property which may result from improper use or installation of this system. -
Page 5: Dimension Chart
DIMENSION CHART Comply with the measures shown on the chart for proper installation. Adjust the gate structure to fit it for best automation, if necessary. Before preceding the installation, be sure that gate moves freely and that: 1) Hinges are properly positioned and greased. 2) No obstacles in the moving area. -
Page 6: Motor Fixing
MOTOR FIXING Assemble the rear bracket and fix it on the pillar. Remove the wire cover and fix the rear bracket with the pin. Release the gate opener and place the pin into the fitting position no.1 and no. 2 no.1 no.2 Make sure the gate openers are mounted in horizontal position especially in those positions. -
Page 7: Left Motor
Wire connection_Open inward Left Motor Right Motor White Yellow Black Green Blue White Yellow Black Green Blue Limit 1/3 Limit 2/4 Limit 1/3 Limit 2/4 Lmt1 Lmt2 Lmt3 Lmt4 Terminals of the CB19 control panel Wire connection_Open Outward Left Motor Right Motor White Yellow... -
Page 8: Emergency Release
EMERGENCY RELEASE In case of power failure, push the lid of release chamber and move forward. Insert the key and turn clockwise to unlock, then turn around the knob to release. To restore the automation, simply reverse the above procedures. Step1. -
Page 9: Technical Features
1.3 TECHNICAL FEATURES : A. Technical Feature: Motor 24Vdc motor with mechanical release Gear Type Worm gear Max Absorbed Power 144W Peak Thrust 3000N Nominal Thrust 3000N Stroke Length 540mm Power Supply 24Vdc Nominal Input Power Maximum Operating Current 5.5A for maximum 10 seconds. Maximum Gate Weight 500 kg per leaf Maximum Gate Length... -
Page 10: Maintenance
. 1 Remove the screw on the anti-shaking ring he anti-shaking ring 4. Adjust two Knobs to set the open and close position 3. Remove the upper-cover of the outer tube and reveal two Knobs of the front and rear limit switch Opening position: 1. - Page 11 MASTIFF 300L SWING GATE OPENER USER MANUAL...
- Page 12 MASTIFF 300L SWING GATE OPENER USER MANUAL...
