TMT Automation Armstrong Manual page 8

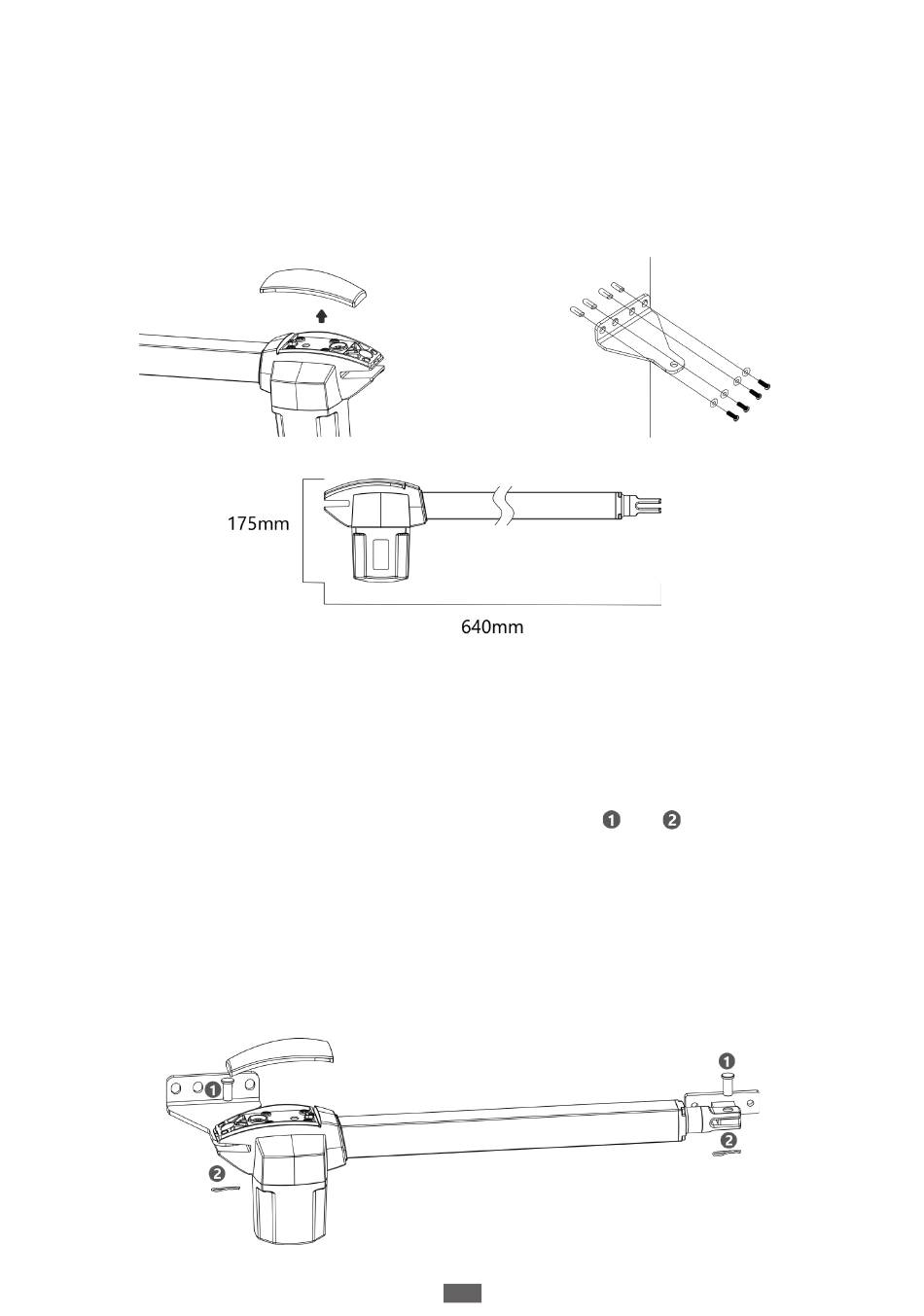

7. Place 4 post brackets on the surface to be installed and mark the drilling points, then
drill minimum diameter of 8mm holes by four on the mounting surface to be installed
and fasten up the brackets with screws and washers. (Figure2)Make sure to leave
enough space when the gate is opening.
8. Please make sure the front plate is completely installed horizontally.
9. Refer to Figure 2, the distance between front plate of the motor and rear plate is 640mm ,
the difference in height is 175mm .
• Figure 1
• Figure 3
10. Clamp and fix the motor front plate on the door temporarily.
11. Lift up the motor and insert the screws into the front plate.Arrange the cable conduit for
power supply cable of the motors.
12. Lift the motor overhead and push the gate to the end until the screw holes of the motor end
matches the holeson the rear plate. Fasten the motor to the rear plate with the bolt .(Figure4)
13. Fasten the nut tightly and loosen it for half round for motor supporting in rotating.
14. Fasten the motor front end to the front plate with the plug
15. Use appropriate release key to release the gear motor.
16. Try to push the released gate and make sure the motor can be manually moved easily.
17. Make sure the motor front plate can be fastened on the gate to be installed
permanently.
18. Use the appropriate release key to fasten the gear motor again.
19. Loosen the plastic nut under the power cable of the motor end, and penetrate the
power cable through the nut and screw it up.
• Figure 4
• Figure 2
and
8
pin tightly .
