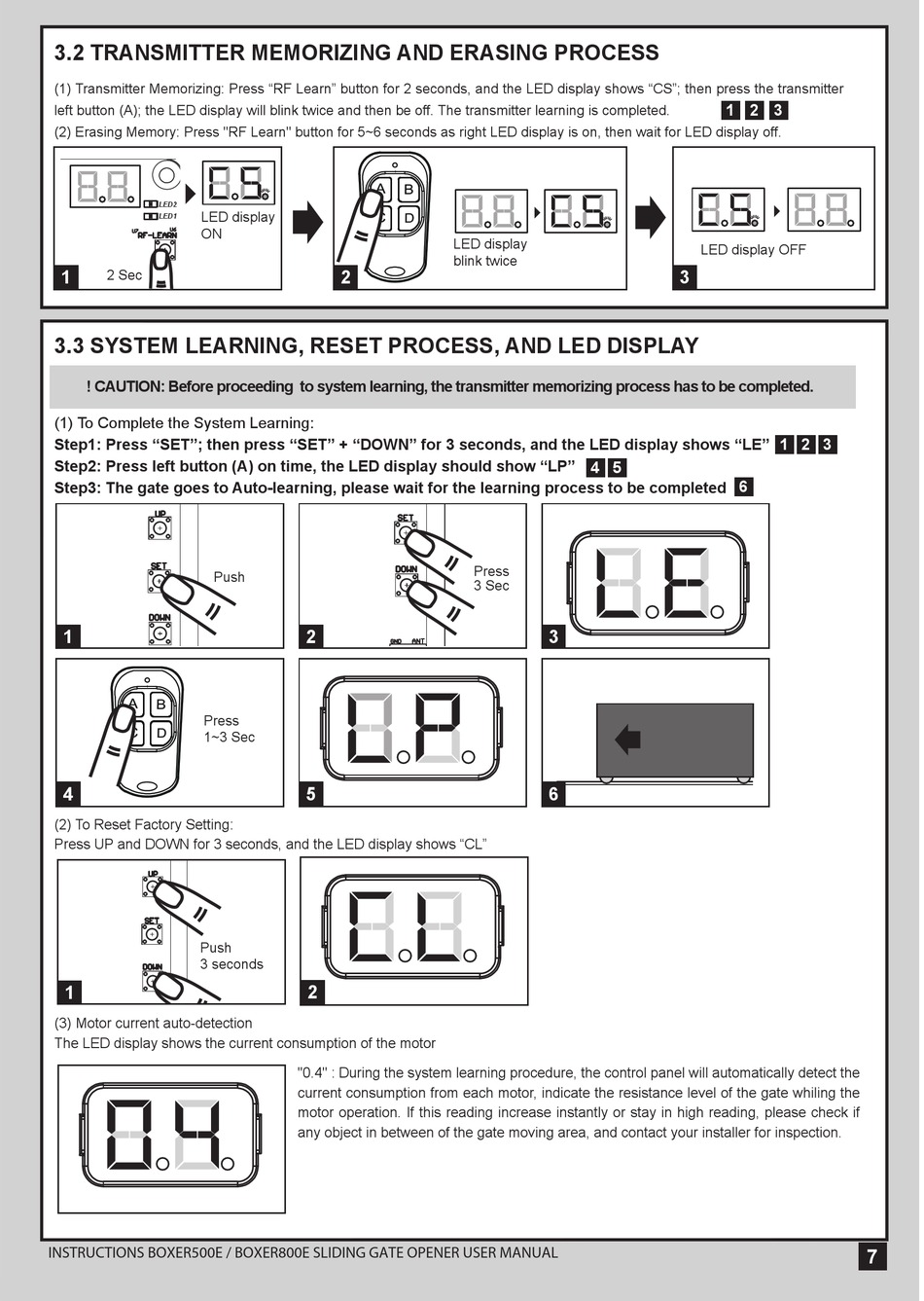

3.2 TRANSMITTER MEMORIZING AND ERASING PROCESS

(1) Transmitter Memorizing: Press "RF Learn" button for 2 seconds, and the LED display shows "CS"; then press the transmitter
left button (A); the LED display will blink twice and then be off. The transmitter learning is completed.
(2) Erasing Memory: Press "RF Learn" button for 5~6 seconds as right LED display is on, then wait for LED display off.
LED2
LED display
LED1
ON
1
2 Sec

3.3 SYSTEM LEARNING, RESET PROCESS, AND LED DISPLAY

! CAUTION: Before proceeding to system learning, the transmitter memorizing process has to be completed.
(1) To Complete the System Learning:
Step1: Press "SET"; then press "SET" + "DOWN" for 3 seconds, and the LED display shows "LE"
LED1
Step2: Press left button (A) on time, the LED display should show "LP"
ON
LED2
Step3: The gate goes to Auto-learning, please wait for the learning process to be completed
LED3
OFF
Push
1
Press
1~3 Sec
ON
OFF
4
(2) To Reset Factory Setting:
LED1
LED2
Press UP and DOWN for 3 seconds, and the LED display shows "CL"
LED3
Push
3 seconds
1
(3) Motor current auto-detection
The LED display shows the current consumption of the motor
ON
OFF
INSTRUCTIONS BOXER500E / BOXER800E SLIDING GATE OPENER USER MANUAL
LED display
blink twice
2
LED1
LED2
LED3
2
ON
OFF
5
2
"0.4" : During the system learning procedure, the control panel will automatically detect the
current consumption from each motor, indicate the resistance level of the gate whiling the
motor operation. If this reading increase instantly or stay in high reading, please check if
any object in between of the gate moving area, and contact your installer for inspection.
