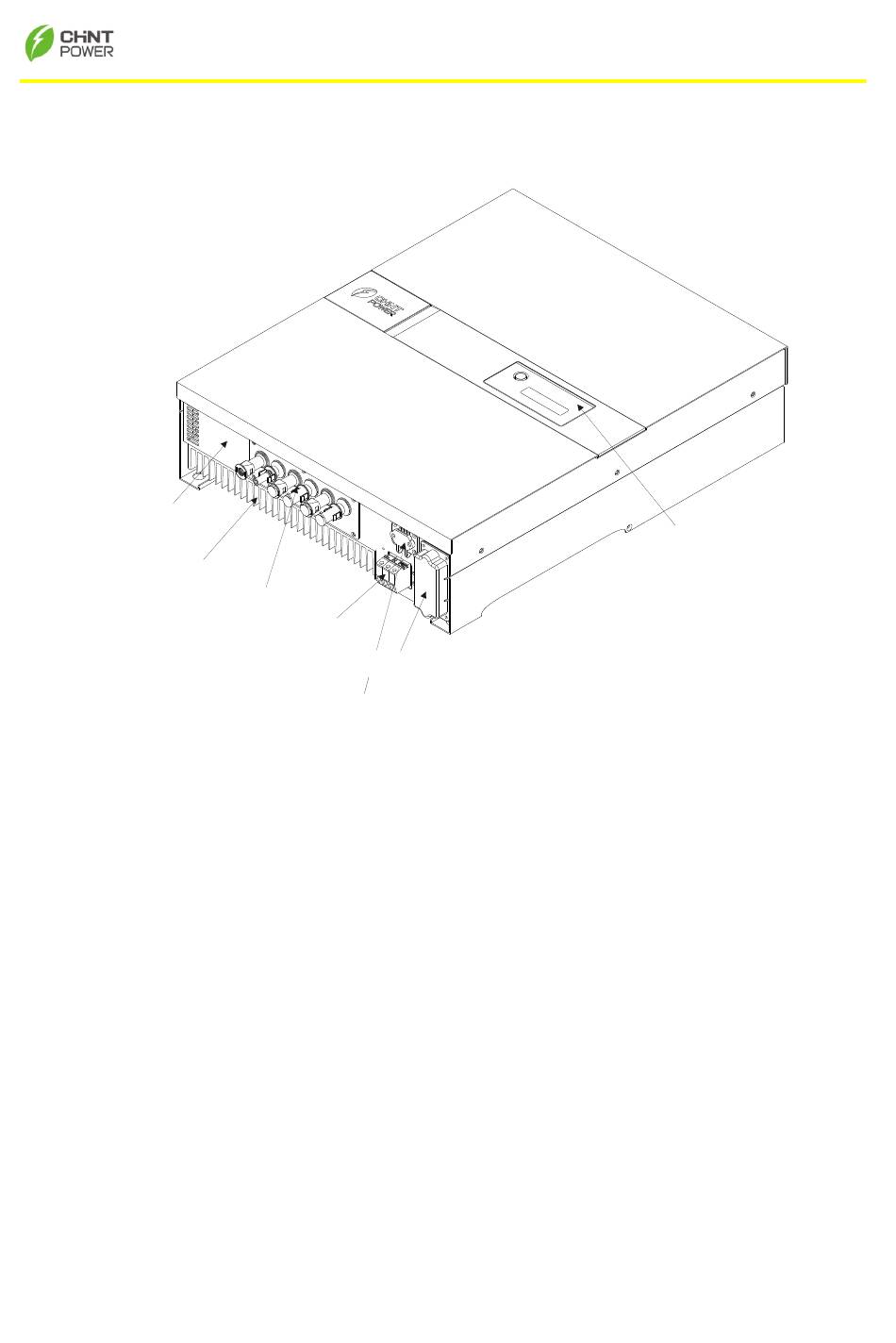

3.2. Introducing the Grid PV Inverter

(1) Connection Panel
(2) Heatsink
(3) 3- pairs of DC input
(1) Connection Panel: The connection panel contains DC and AC
terminals, and communication ports as detailed below.
(2) Heat-sink: Part to dissipate heat produced by the inverter
(3) 3 pairs of DC-input terminals: Each input pair consists of positive
and negative terminals. Refer to Installation Section for set-up
information.
(4) AC-Output: Delivering AC to the Public Utility.
(5) Optional Communication Slot and Cover: An optional port to
extend the communication interface, for example connecting an
RS485 card. The port is protected by a water-proof cover.
(6) RS232 Port: Interface allows communication with computer with
RS232 serial port.
(7) LCD Display: Device to display inverter operation status.
(4) AC Output
(5)
Optional Communication
Port and Cover
(6) 232
RS Connector
CHINT CPS SC4.6KTL-O Inverter
9
9
(7) Front LCD
Display Panel
