5.3. Connecting the AC-Output Cable

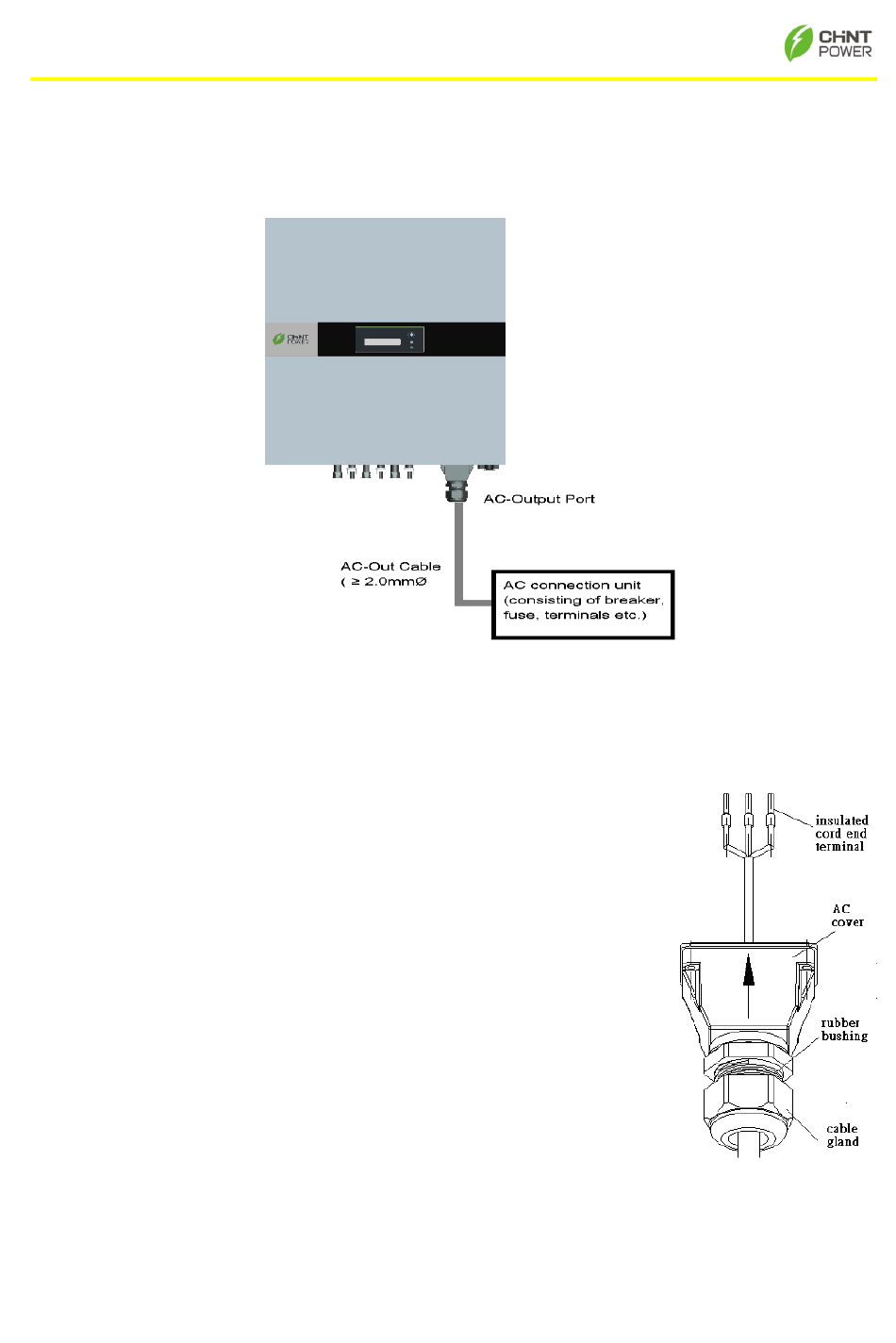

Connect PV-Inverter to the AC-Connection unit via the AC-output cable
as following steps:
(1) Unscrew those four screws around terminal
block, keep them for AC cover screwing
later.
(2) Find rubber bushing in accessory box, cut a
suitable hole in it for feeding AC cable.
(3) Unscrew cable gland of AC cover, feed AC
cable through cable gland; bushing; AC
cover orderly before crimping it with
insulated cord end terminal.
(4) Crimp an insulated cord end terminal to
each wire.
(5) Screw terminals of wires to correct poles of
terminal block individually, check all wires
are tightly connected.
