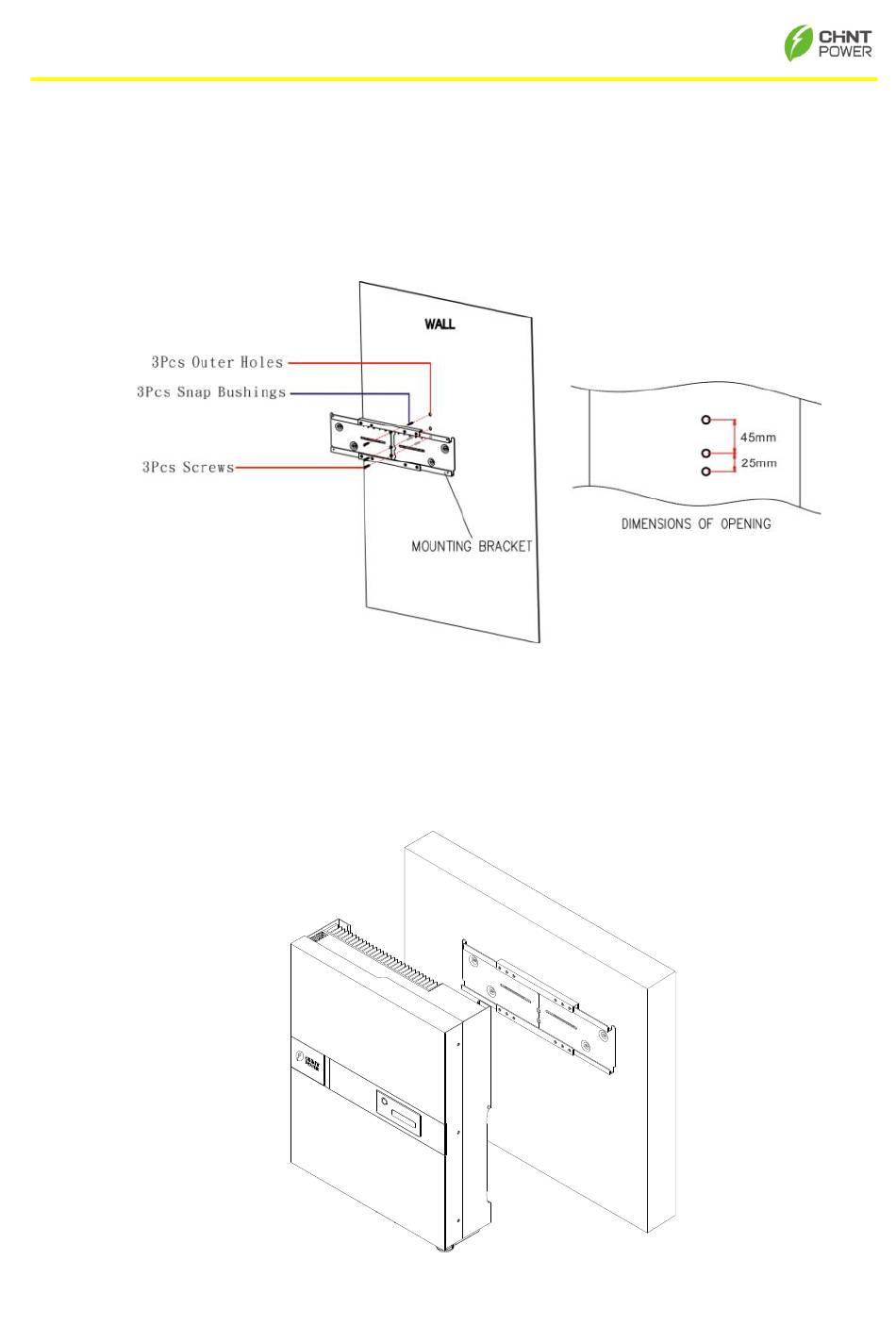

5. Fix the bracket by using central mounting holes:
(a) To install the device to a narrow upright, mark 3 central holes
at the back of the brackets as illustrated below.
(b) Drill the 3 marked holes in the wall, and then drive in the 3
snap bushings. Now insert the screws, and tighten.
6. Mount the PV-Inverter onto the bracket.
Wall
16
