PLUG-IN DETAILS

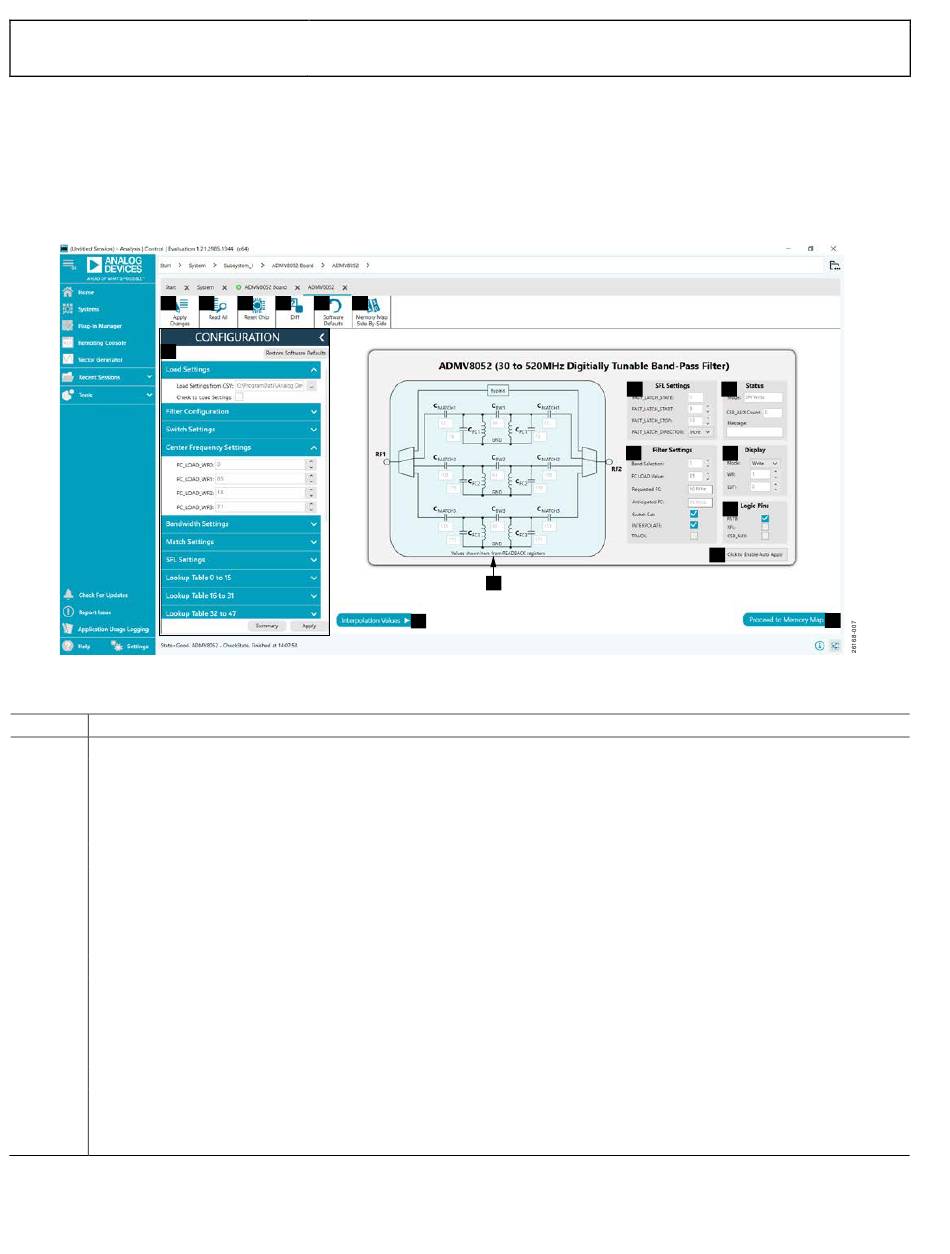

The full screen ADMV8052 chip plug-in with labels is shown in
Figure 7. The labels correspond to items listed in Table 1, which
describes the functionality of each section. For additional detailed
programming, refer to the ADMV8052
J1
A
Table 1. ADMV8052 Block Diagram Label Functions (See Figure 7)
Label Function
A Use the CONFIGURATION section to initialize the ADMV8052-EVALZ.
Load Settings from CSV: click the ... button to select which .csv file to load into the CONFIGURATION section.
Check to Load Settings: once a file is selected, select this check box to load the .csv file contents into the CONFIGURATION
section. Note that a check mark does not appear when the check box is selected.
Filter Configuration: select the configuration settings for interpolation, tracking, or debug.
Switch Settings: select the switch position settings for SPI write mode.
Center Frequency Settings: select the center frequency settings for SPI write mode.
Bandwidth Settings: select the bandwidth settings for SPI write mode.
Match Settings: select the match settings for SPI write mode.
SFL Settings: select the SPI fast latch (SFL) settings that are used when the chip is placed into the SPI fast latch mode.
Lookup Table 0 to 15: define the configuration for lookup table (LUT)0 to LUT15.
Lookup Table 16 to 31: define the configuration for LUT16 to LUT31.
Lookup Table 32 to 47: define the configuration for LUT32 to LUT47.
Note that following functions are not shown in Figure 7. Scroll down in the CONFIGURATION section to view these functions.
Lookup Table 48 to 63: define the configuration for LUT48 to LUT63.
Lookup Table 64 to 79: define the configuration for LUT64 to LUT79.
Lookup Table 80 to 95: define the configuration for LUT80 to LUT95.
Lookup Table 96 to 111: define the configuration for LUT96 to LUT111.
Lookup Table 112 to 127: define the configuration for LUT112 to LUT 127.
data sheet.
J2 J3 J4 J5 J6
Figure 7. ADMV8052 Chip Plug-In with Labels
D
L
Rev. 0 | Page 6 of 18
EVAL-ADMV8052 User Guide
B C
E
F
G
H
K
