PLUG-IN OVERVIEW

When the ADMV8052-EVALZ is connected to the PC, the
ADMV8052 Board appears in the Attached Hardware section
of the Start tab. Double-click the ADMV8052 Board plug-in to
open two tabs, which are the ADMV8052 Board plug-in view (see
Figure 5) and the ADMV8052 chip plug-in view (see Figure 6),
respectively.
The ADMV8052 chip plug-in view includes the following
feature sections (see Table 1 for additional information on these
sections):
The CONFIGURATION section (load from .csv)
•
• The Logic Pins section
• The SFL Settings section
• The chip Status section
• The Display controls section
The Filter Settings section
•
The ACE software provides a simple tutorial for testing the
ADMV8052. For a more customized and detailed implementation,
refer to ADMV8052 data sheet for a full description of the
functionality, registers, and corresponding settings.
Rev. 0 | Page 5 of 18

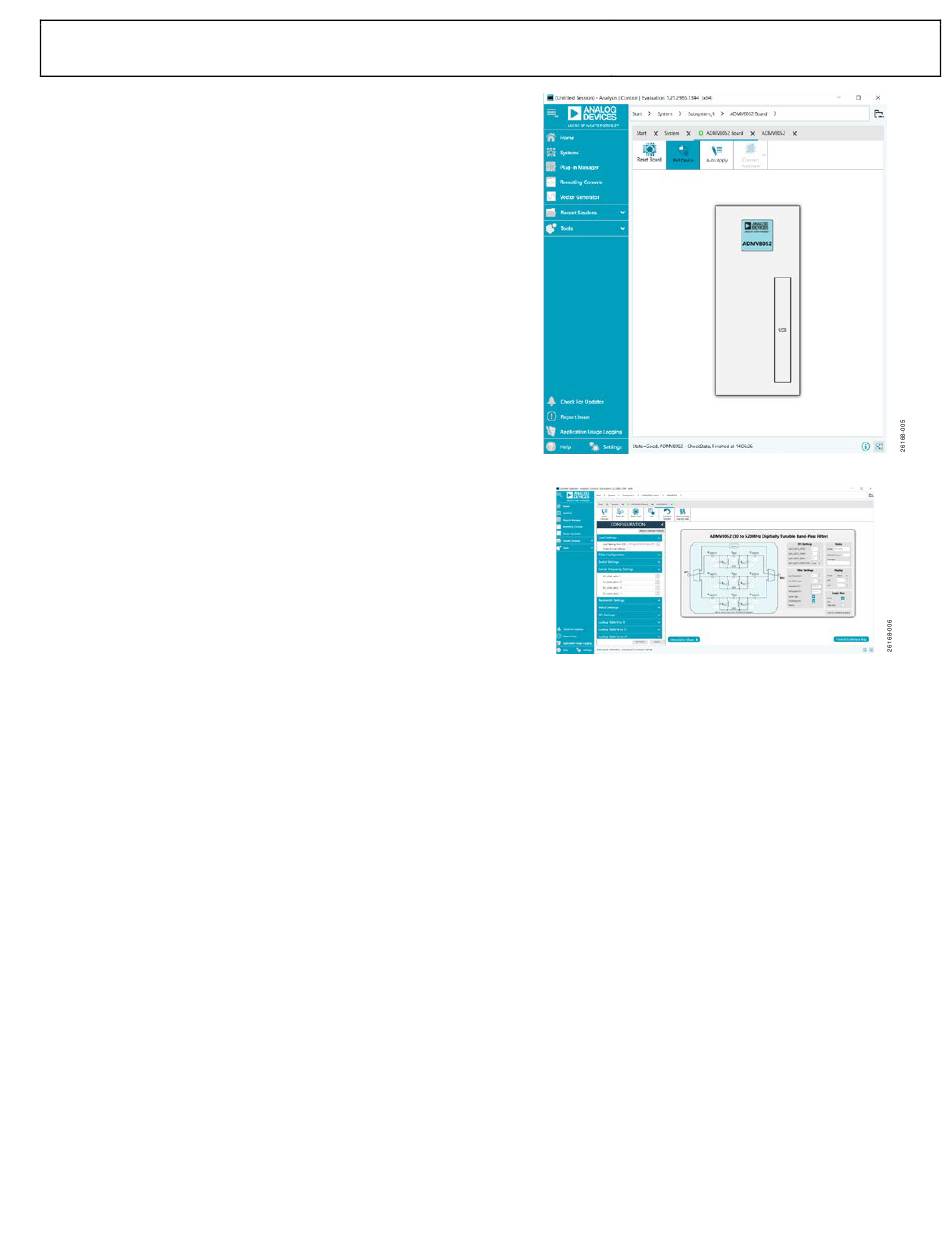

Figure 5. ADMV8052 Board Plug-In View
