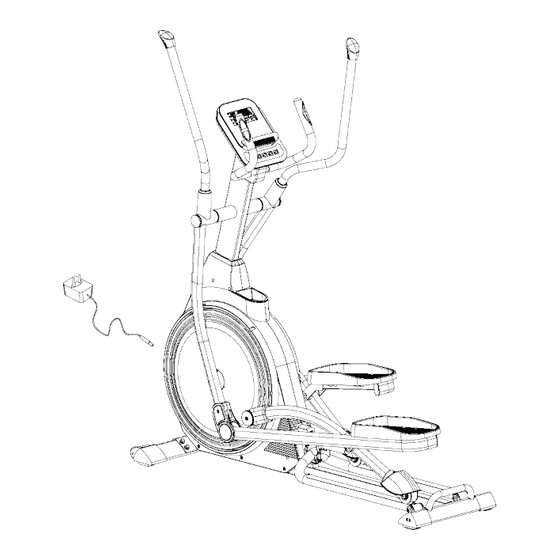

Delta 2.0 Cross Trainer
with 3 Level Incline
Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product.
Retain this owner's manual for future reference.
NOTE:
This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary
from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available
through our website at
www.lifespanfitness.com.au
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delta 2.0 and is the answer not in the manual?

Questions and answers

Related Manuals for LifeSpan Delta 2.0

Summary of Contents for LifeSpan Delta 2.0

  • Page 1 Delta 2.0 Cross Trainer with 3 Level Incline USER MANUAL Product may vary slightly from the item pictured due to model upgrades. Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary from what is listed in this manual.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions ....... 03 II. Care Instructions ..........04 III.

  • Page 3: Important Safety Instructions

    I. IMPORTANT SAFETY INSTRUCTIONS WARNING: Read all instructions before using this machine. It is important your machine receives regular maintenance to prolong its useful life. Failing to regularly maintain your machine may void your warranty. Please keep this manual with you at all times. •...

  • Page 4: Care Instructions

    • Always keep this instruction manual and assembly tools at hand for reference. • The equipment is not suitable for therapeutic use. • The pulse or heart rate sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.

  • Page 5: Exploded Diagram

    III. EXPLODED DIAGRAM 33 11 12 32 31 32 31 30 33 31 36R 35 34 12 11 15 5 37 40 118R 42 41 12 40 118L 36R 35 46 45 48 47 30 47 11 12 53 46 40 41 12 11 46 46 12...
  • Page 6 | EXPLODED DIAGRAM...

  • Page 7: Parts List

    IV. PARTS LIST Some items on this list may come pre-installed on your equipment. If you feel like you’re missing anything, please double check your equipment. #10 d8x20x2 #11 d8 #15 M8x25xS13 #18 ST4.2x16 4pcs. 4pcs. 4pcs. 2pcs. #19 ST4.2x19 #26 M8xH7.5xS13 #27 d8x20x2xR16 #28 M8x40x15xS5...
  • Page 8 Description Description Grip foam Bushing 32*3.3* 28*20.5* 19.1 Handlebar cover 54L/R Linkage Spacer φ22*φ17.1*8.8 25L/R Reciprocating bar L/R Nylon nut M8*H7.5*S13 Shaft for transportation wheel Arc washer d8* 20*2*R16 Bearing 6003 Bolt M8*40*15*S5 Roller Spacer 20*9 Wheel cover Wave washer d19* 25*0.3 Front stabilizer 61L/R End cap L/R...
  • Page 9 Description Description Washer φ6*φ18*2 Turntable Crank Idler rod 85L/R Chain cover Idler Bearing 6004 Bolt M6*12*S10 Spacer 20.2*4 Spring Nylon nut M6*H6*S10 Bolt M5*16 Belt plate Washer d5* 13*1 Shaft Washer d8* 28*2 Spring washer d6 Bearing holder Bolt M6*16*S5 Flywheel Belt Spacer...

  • Page 10: Assembly Instructions

    V. ASSEMBLY INSTRUCTIONS Some parts are pre-assembled on the equipment and may need to be removed for assembling the parts together. #15 M8x25xS13 4pcs. A S5 #11 d8 4pcs. #10 d8x20x2 4pcs. #19 ST4.2x19 3pcs. B S13-S15 #18 ST4.2x16 2pcs. STEP 1 1.
  • Page 11 Before installation remove the packaging material from the main frame feet first. #15 M8x25xS13 4pcs. #11 d8 4pcs. #10 d8x20x2 4pcs. B S13-S15 STEP 2 1. Remove bolts (63), spring washers (11) and washers (10) from front stabilizer (60) using spanner (B). 2.
  • Page 12 #28 M8x40x15xS5 4pcs. #26 M8x117.5xS13 4pcs. #27 d8x20x2xR16 4pcs. #34 2pcs. A S5 STEP 4 1. Put handlebar covers (24) into handlebar (22L/R). 2. Attach handlebar (22L/R) to reciprocating bar (25L/R) with bolts (28), arc washers (27) and nylon nut (26) using wrench (A).
  • Page 13 #12 M8x20xS5 2pcs. A S5 #11 d8 2pcs. #10 d8x20x2 2pcs. #3 M5x15 4pcs. STEP 4 1. Remove bolts (12), spring washer (11) and washers (10) from handlebar post (14) using spanner (A). 2. Draw the handle pulse wire (9) through the hole of handlebar post (14). 3.

  • Page 14: Adjustments Guide

    VI. ADJUSTMENTS GUIDE MOVING THE MACHINE To move the machine, hold the back of the frame up until the transportation wheels (118) on the main frame (20) touch the ground. With the wheels on the ground, you can transport the bike to the desired location at ease.

  • Page 15: Operation Guide

    VII. OPERATION GUIDE DISPLAY INFORMATION 1. TIME, SPEED, CAL, DISTANCE, HEART RATE, RPM, ODO, WATT. 2. In Running state: SPEED/ DIST/ CAL will be display, or press "MODE" key to change display to RPM/ ODO/ WATT. 3. Resistance levels is up to 16. SPECIFICATIONS TIME 00M:00S ~ 99M:59S...
  • Page 16 FUNCTION DESCRIPTION MANUAL The resistance value level by manual adjustment PROGRAM The motion mode by auto adjustment with preset value USER The motion mode by user - defined resistance value WATT The motion mode by watt target controlled Heartbeat target value controlled of the motion mode, 60%, 75%, 85%, H.R.C user-defined RECOVERY...
  • Page 17 MANUAL MODE (PROGRAM 1) 1. Press "ST/SP" key to start program or press "ENTER" key into setting mode. 2. In setting mode, press "ENTER" key to choose setting items with relevant flashing window for TIME, DISTANCE, CALORIE, AGE. 3. Press "UP" or "DOWN" key to upward or downward adjusted, and press "ENTER" key to confirm and go to next setting.
  • Page 18 BODY FAT (PROGRAM 14) 1. Press "ENTER" key into setting mode. 2. In setting status, press "ENTER" key to choose setting items with relevant flashing window for GENDER→HEIGHT→WEIGHT→AGE. 3. Press "UP" or "DOWN" key to adjust values, and press "ENTER" key to confirm and move to the next setting.
  • Page 19 BODY FAT Slightly Slightly Thin Slim Healthy Overweight Obese Obesity Skinny Thin Overweight H.R.C MODE (PROGRAM 15-18) 1. Press "UP" or "DOWN" key to select a particular function you want. 2. Press "START" key to running the program or press "ENTER" key into setting mode. 3.
  • Page 20 USER MODE (PROGRAM 19-22) 1. Press "UP" or "DOWN" key to select a particular function you want with U1-U4. 2. Press "ST/SP" key to start program, or press "ENTER" key into setting mode. 3. In setting status, press "ENTER" key to choose setting items with relevant flashing window for TIME→DISTANCE→CALORIE→AGE→Resistance Value.
  • Page 21 5. Resistance level will automatically change during the motion status with WATT target value, or press "UP" or "DOWN" to manually adjust. 6. Press "MODE" key to change display to SPEED/ DIST/ CAL or RPM/ ODO/ WATT display in the working status.

  • Page 22: Exercise Guide

    VIII. EXERCISE GUIDE PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems. The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings.
  • Page 23 TRAINING ZONE EXERCISE After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for maximum performance. Breathe regularly and deeply as you exercise. COOL DOWN Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down.

  • Page 24: Warranty

    Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed. If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service...

  • Page 25: Hand Pulse Technology

    X. HAND PULSE TECHNOLOGY WIRELESS PLUSE (Optional) Supports the standard 5.3Khz wearing heart rate detector. NOTE: 1. This monitor uses a 9V/1A power adapter. 2. When the monitor is abnormal, please pull out the power plug and re-insert. This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run through the body when your heart beats.
  • Page 28 WWW.LIFESPA NF ITN ES S.COM.AU...
