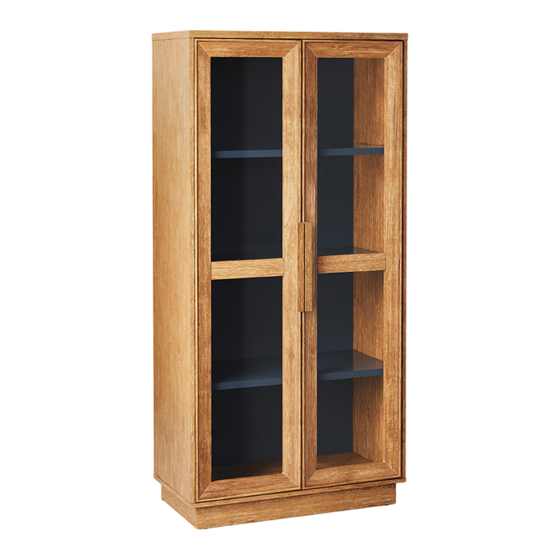

- Page 1 Kennington 2 Door Display Cabinet Style # TGT66BK DPC-item #: 249-17-3176 >> Assembly instructions © 2023 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. Good luck –... - Page 3 hardware (H1) x 20 (H2) x 20 (H3) x 16 (H4) x 26 (H5) x 16 cam lock cam bolt M8 x 30 mm M3.5 x 15 mm M3.5 x 12 mm pan head screw wood dowel washer head screw (H6) x 2 (H7) x 2 (H8) x 8...
- Page 4 exploded diagram ITEM DESCRIPTION Top panel Base Back panel Left side panel Right side panel Top rear stretcher Top front stretcher Fixed shelf Adjustable shelf Left door Right door Handle...
-
Page 5: How To Use The Cam Lock System
how to use the cam lock system Push cam into panel - arrow Align cam bolt(s) with cam(s) Screw cam bolt into panel feature on cam top points to and insert all the way into panel edge cross-bored hole(s) 190°-230° Panels should be tight against Rotate cam(s) clockwise each other and connection... - Page 6 step 1: attach the roller catch plates The projection faces backward NOTE: DO NOT use power tools. (H5) x 4 (H7) x 2 M3.5 x 12 mm roller catch metal plate pan head screw 1.1. Use the pilot holes as a guide, fasten two roller catch metal plates (H7) to the base (B) with two 12 mm screws (H5) per plate. Make sure that the projection on each roller catch strike plate points towards the back of the unit.
- Page 7 step 2: prepare the top panel and base assembly (H2) x 12 cam bolt 2.1. Securely screw the cam bolts (H2) into the designated small holes on the top panel (A) and the base (B).
- Page 8 step 3: prepare the side panels assembly (H2) x 8 cam bolt 3.1. Securely screw the cam bolts (H2) into the designated small holes on the side panels (D and E).
- Page 9 step 4: attach the stretchers and fixed shelf The cam lock housings point towards the back of the unit and are located at the bottom (H1) x 8 (H3) x 4 cam lock M8 x 30 mm wood dowel The shelf molding faces the base and is located at front of the unit 4.1.
- Page 10 step 5: attach the base to the side panels (H1) x 4 (H3) x 4 cam lock M8 x 30 mm wood dowel Floor leveler The back edges are flush with each other 5.1. Insert four 30 mm wood dowels (H3) into the bottom inner holes of the side panels (D and E). 5.2.
- Page 11 step 6: attach the top panel to the previous assembly The pilot holes face backward (H1) x 8 (H3) x 8 cam lock M8 x 30 mm wood dowel 6.1. Insert eight 30 mm wood dowels (H3) into the top inner holes of both side panels (D and E) and top stretchers (F and G). 6.2.
- Page 12 step 7: attach the back panel The adhesive tape faces outward. CAUTION: Heavy! You may need assistance with this step. (H4) x 26 M3.5 x 15 mm washer head screw 7.1. Now, go back and tighten all cam locks and screws. Make sure that the previous all the parts are tight and there are no gaps between the parts. This will help keep the unit square.
- Page 13 step 8: install the roller catches The roller runs against the bottom edge NOTE: DO NOT use power tools. (H5) x 4 (H6) x 2 M3.5 x 12 mm roller catch pan head screw 8.1. Using the pilot holes as a guide, orient and attach one roller catch (H6) to each door (J and K) with two 12 mm screws (H5).
- Page 14 step 9: install the door hinges NOTE: DO NOT use power tools. (H9) x 6 (H10) x 12 hinge M3.5 x 15 mm zinc screw 9.1. Extend three hinges (H9) and rest the hinge cups onto the cutouts of each door (J and K). 9.2.
- Page 15 step 10: install the door handles NOTE: DO NOT use power tools. (H11) x 4 3/16” x 35 mm handle bolt 10.1. Attach one handle (L) to the front of each door (J and K) with two 35 mm handle bolts (H11).
-
Page 16: Step 11: Attach The Doors
step 11: attach the doors If you find that the doors need to be adjusted slightly, turn the appropriate screw, as illustrated upper. 1. TO ADJUST THE DOOR FORWARD OR BACKWARD. 2. TO ADJUST THE DOOR TO RIGHT OR TO LEFT. 3. - Page 17 step 12: attach the adjustable shelves and put cam lock covers (H8) x 8 (H5) x 8 shelf support M3.5 x 12 mm pan head screw (H12) x 8 cam lock cover 12.1. Open the doors and insert eight shelf supports (H8) in the holes on the side panels (D and E) at the desired height. Be sure to place the four shelf supports at the same level to level the shelf.
- Page 18 step 13: correct the doors alignment If you find that the doors need to be adjusted slightly, turn the appropriate screw, as illustrated upper. 1. TO ADJUST THE DOOR FORWARD OR BACKWARD. 2. TO ADJUST THE DOOR TO RIGHT OR TO LEFT. 3.
- Page 19 step 14: install the tipping restraint hardware kit Wooden stud Wall Nylon strap Short screw Wall (H13) x 2 tipping restraint hardware kit (inside plastic bag) Metal bracket Long screw Tools required: Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit (not provided). 14.1.
- Page 20 FURNITURE TIPPING RESTRAINT YOUNG CHILDREN MAY BE INJURED BY TIPPING FURNITURE AND YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES. TO PROVIDE PROTECTION AGAINST THE UNEXPECTED TIPPING OF FURNITURE DUE TO IMPROPER USE. USE OF TIP-OVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE, THE RISK OF TIP-OVER.
-
Page 21: Care And Maintenance
Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. ... - Page 22 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Kennington 2 Door Display Cabinet MODEL # TGT66BK MAXIMUM LOAD 22.7 kg / 50 lb THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM WEIGHTS INDICATED.
- Page 23 The maximum recommended weight allowance is 22.7 kg / 50 lb for the shelf and the base. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may tip over onto the child. NEVER allow children to climb or play with the TV or furnishing supporting the TV.
