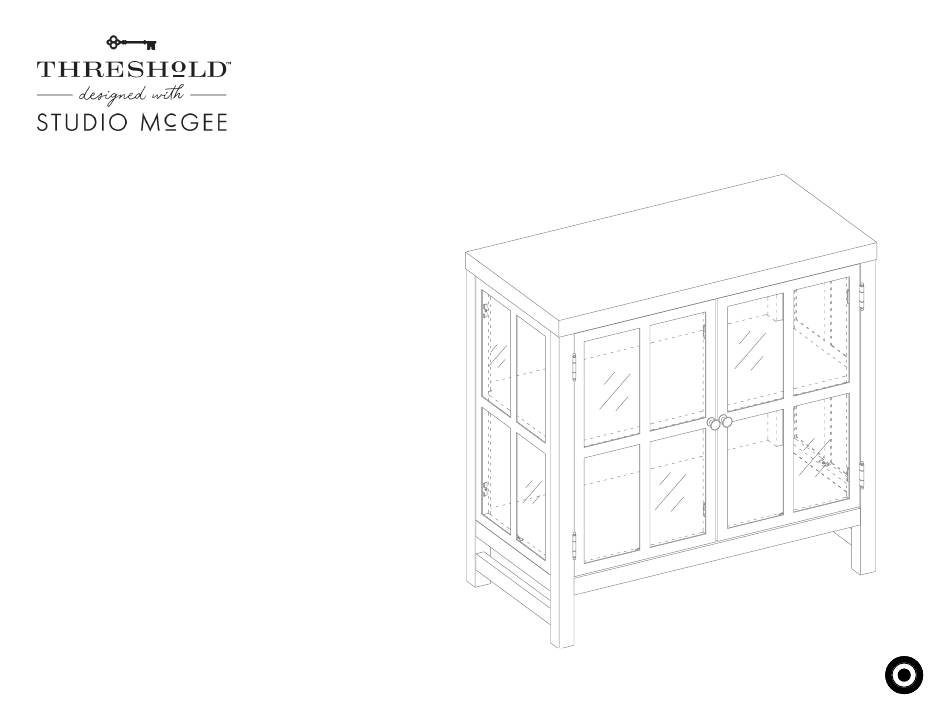

- Page 1 Bountiful Wood & Glass 2 Door Cabinet Style # TGT32CB DPC-item #: 249-17-2197 >> Assembly instructions © 2021 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. Good luck –... - Page 3 hardware (H1) x 4 (H2) x 4 (H3) x 8 (H4) x 16 (H5) x 4 cam lock cam bolt M8 x 30 mm M4 x 12 mm bolt 1/4” x 3/4” bolt wood dowel (H6) x 4 (H7) x 4 (H8) x 2 (H9) x 2 (H10) x 4...
- Page 4 hardware (H16) x 1 (H17) x 1 Spare hardware large hex wrench tipping restraint hardware kit (inside plastic bag)
- Page 5 exploded diagram ITEM DESCRIPTION Top panel Back panel Left side frame Right side frame Left door Right door Shelf Bottom panel...
-
Page 6: How To Use The Cam Lock System
how to use the cam lock system Push cam into panel - arrow Align cam bolt(s) with cam(s) Screw cam bolt into panel feature on cam top points to and insert all the way into panel edge cross-bored hole(s) 190° -230° Panels should be tight against Rotate cam(s) clockwise each other and connection... - Page 7 step 1: prepare the side frames assembly (H2) x 4 cam bolt 1.1. Securely screw the cam bolts (H2) into the designated small holes on the side frames (C and D).
- Page 8 step 2: attach the door catches to the top panel (H11) x 2 (H13) x 4 door catch M3.5 x 12 mm screw The magnet faces forward 2.1. Using the pilot holes as a guide, attach two door catches (H11) to the top panel (A) as shown, with two 12 mm screws (H13) per door catch.
- Page 9 step 3: attach the bottom panel between the side frames Pilot holes for door hinge (H1) x 4 cam lock (H3) x 4 M8 x 30 mm wood dowel The molding is located at front and will face the floor when the unit is turned upright. 3.1.
- Page 10 step 4: attach the top panel to both side frames NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H5) x 4 (H3) x 4 Door catch 1/4”...
- Page 11 step 5: attach the back panel to the unit Adhesive tape faces outward CAUTION: Heavy! You may need assistance with this step. (H14) x 16 M3.5 x 15 mm washer head screw 5.1. Now, go back and tighten all cam locks and screws. Make sure all the parts are tight and there are no gaps between the parts. This will help keep the unit square.
- Page 12 step 6: install the door hinges NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H4) x 16 (H10) x 4 M4 x 12 mm bolt door hinge (H15) x 1...
- Page 13 step 7: install the doors and knobs CAUTION: Heavy! You may need assistance with this step. (H8) x 2 (H9) x 2 M4 x 25 mm knob bolt knob (H13) x 12 M3.5 x 12 mm screw Drainage holes face downward 7.1.
- Page 14 step 8: install the shelf (H12) x 4 shelf support 8.1. Open the doors and insert four shelf supports (H12) into the holes pre-drilled on the side frame posts. 8.2. Tilt and rest the shelf (G) onto the shelf supports (H12).
- Page 15 step 9: correct the doors alignment Floor leveler NOTE: Open and close the doors and adjust the gaps to make sure they are aligned and shut correctly. If you find that the doors do not close properly or do not align correctly, please follow these steps: 9.1.
- Page 16 step 10: install the tipping restraint hardware kit Wooden stud Wall Nylon strap Short screw Wall (H17) x 1 tipping restraint hardware kit (inside plastic bag) Floor leveler Metal bracket Long screw Tools required: Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit (not provided). 10.1.
-
Page 17: Care And Maintenance
Care and Maintenance • Use a soft, clean cloth that will not scratch the surface when dusting. • Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. • Using solvents of any kind on your furniture may damage the finish. •... - Page 18 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Bountiful Wood & Glass 2 Door Cabinet MODEL # TGT32CB MAXIMUM LOAD 22.7 kg / 50 lb THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM WEIGHTS INDICATED.
- Page 19 The maximum recommended weight allowance is 22.7 kg / 50 lb for top surface, shelf and bottom panel. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may tip over onto the child. NEVER allow children to climb or play with the TV or furnishing supporting the TV.
- Page 20 FURNITURE TIPPING RESTRAINT YOUNG CHILDREN MAY BE INJURED BY TIPPING FURNITURE AND YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES. TO PROVIDE PROTECTION AGAINST THE UNEXPECTED TIPPING OF FURNITURE DUE TO IMPROPER USE. USE OF TIP-OVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE, THE RISK OF TIP-OVER.
