Threshold TGTTMC Assembly Instructions Manual

Glass door library cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
Glass Door Library Cabinet
Style #: TGTTMC
DPC-item #: 249-17-2821
>> Assembly instructions
TM
© 2020 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TGTTMC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Threshold TGTTMC

Summary of Contents for Threshold TGTTMC

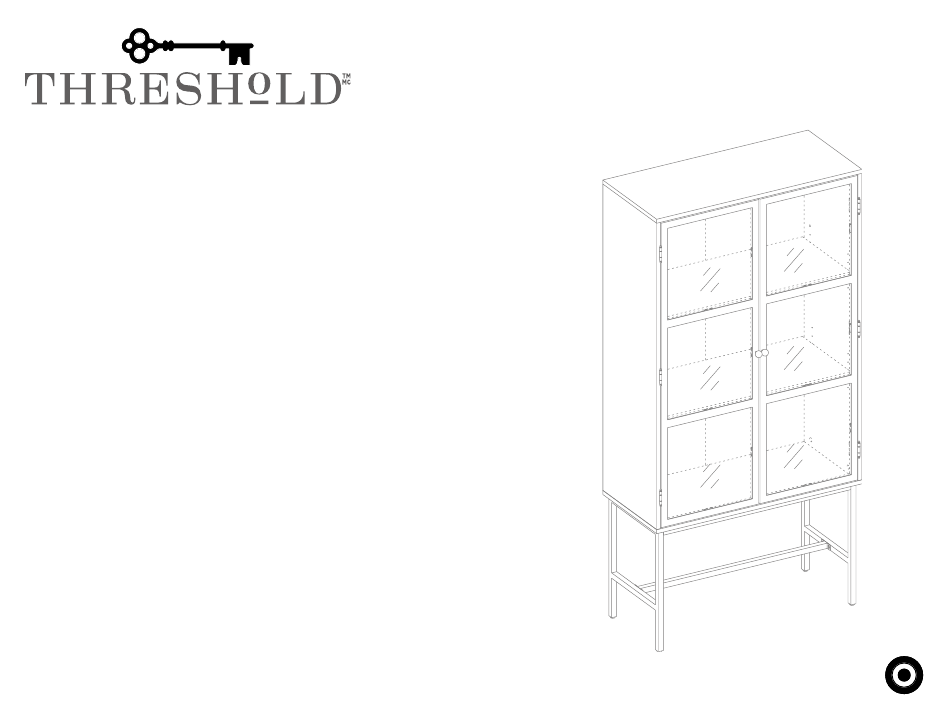

  • Page 1 Glass Door Library Cabinet Style #: TGTTMC DPC-item #: 249-17-2821 >> Assembly instructions © 2020 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

  • Page 2: Before You Begin

    Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. Good luck –...
  • Page 3 WARNING Children have died from furniture tipover. To reduce the risk of furniture tipover: ALWAYS install tipover restraint provided. ⚫ NEVER put a TV on this product. ⚫ NEVER allow children to stand, climb or hang ⚫ on drawers, doors, or shelves. NEVER open more than one drawer at a time.
  • Page 4 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Glass Door Library Cabinet MODEL # TGTTMC MAXIMUM LOAD 22.7 kg / 50 lb THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM WEIGHTS INDICATED. USE WITH LOADS HEAVIER THAN THE MAXIMUM WEIGHTS INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.
  • Page 5 hardware (H1) x 8 (H2) x 8 (H3) x 8 (H4) x 24 (H5) x 8 (H6) x 8 Cam lock M4 x 12 mm bolt Cam bolt M8 x 30 mm wood dowel 1/4” x 5/8” bolt 1/4” x 1-1/4” bolt (H12) x 30 (H7) x 2 (H8) x 2...

  • Page 6: Exploded Diagram

    exploded diagram ITEM DESCRIPTION Top panel Adjustable shelf Bottom panel Middle stretcher Bottom stretcher Back panel Side frame Left side panel Right side panel Left door Right door Top stretcher...

  • Page 7: How To Use The Cam Lock System

    how to use the cam lock system Push cam into panel - arrow Align cam bolt(s) with cam(s) Screw cam bolt into panel feature on cam top points to and insert all the way into panel edge cross-bored hole(s) 190°-230° Panels should be tight against Rotate cam(s) clockwise each other and connection...
  • Page 8 step 1: Screw in the cam bolts (H2) x 8 cam bolt 1.1. Securely screw the cam bolts into the designated small holes on the top and bottom panels (A and C).
  • Page 9 step 2: Fasten the top stretcher to the top panel The countersunk holes face upward (H14) x 5 M4 x 35 mm screw 2.1. Insert five 35 mm screws (H14) through the countersunk holes on the top stretcher (L) and securely screw into the top panel (A).
  • Page 10 step 3: Attach the door catch to the top panel (H12) x 4 (H10) x 2 M3.5 x 12 mm door catch flat head screw The magnet faces forward 3.1. Using the pilot holes as a guide, attach two door catches (H10) to the top panel (A) as shown, with two 12 mm screws (H12) in each.
  • Page 11 step 4: Attach the side panels to the top panel The door hinge mounting holes run against the front edge (H1) x 4 Cam lock (H3) x 4 M8 x 30 mm wood dowel 4.1. Insert two wood dowels (H3) into the top inner holes of each left and right side panels (H and I). 4.2.
  • Page 12 step 5: Attach the bottom panel to the side panels (H1) x 4 Cam lock (H3) x 4 M8 x 30 mm wood dowel 5.1. Insert two wood dowels (H3) into the bottom inner holes of each left and right side panels (H and I). 5.2.
  • Page 13 step 6: Attach the back panel to the frame Adhesive tape faces outward CAUTION: Heavy! You may need assistance with this step. (H13) x 24 M3.5 x 15 mm washer head screw 6.1. With the help of another adult, flip the previous assembly around on its front edges. 6.2.
  • Page 14 step 7: Attach the middle stretchers to the side frame NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H5) x 2 (H16) x 1 1/4”...
  • Page 15 step 8: Attach the bottom stretcher to the side frame NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H5) x 2 (H16) x 1 1/4”...
  • Page 16 step 9: Attach the other side frame to the stretchers NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H5) x 4 (H16) x 1 1/4”...
  • Page 17 step 10: Attach the base to the bottom panel NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H6) x 8 (H16) x 1 1/4”...
  • Page 18 step 11: Attach door hinges to the left door (H9) x 3 (H4) x 12 door hinge M4 x 12 mm bolt (H17) x 1 small hex wrench 11.1. Align and attach 3 door hinges (H9) to the left door (J), using four 12 mm bolts (H4) per hinge as shown.
  • Page 19 step 12: Attach door hinges to the right door (H9) x 3 (H4) x 12 door hinge M4 x 12 mm bolt (H17) x 1 small hex wrench 12.1. Align and attach 3 door hinges (H9) to the right door (K), using four 12 mm bolts (H4) per hinge as shown.
  • Page 20 step 13: Attach the doors and knobs CAUTION: Heavy! You may need assistance with this step. (H7) x 2 (H8) x 2 (H12) x 18 Knob bolt knob M3.5 x 12 mm flat head screw 13.1. Ask for assistance to lift the assembled unit upright and position it near the final location. 13.2.
  • Page 21 step 14: Install the adjustable shelves (H11) x 8 (H12) x 8 shelf support M3.5 x 12 mm flat head screw (H15) x 8 cam lock cover 14.1. Insert eight shelf supports (H11) into the assembly at the desired heights. Make sure you place the four shelf supports in the same level so the shelf is not tilted.
  • Page 22 step 15: Attach tipping restraint hardware Wooden stud Connector Wall Short screw Wall Steel cable (H18) x 2 tipping restraint hardware kit (inside plastic bag) Long screw Metal bracket Floor leveler Tools required: Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit. 15.1.

  • Page 23: Care And Maintenance

    Care and Maintenance • Use a soft, clean cloth that will not scratch the surface when dusting. • Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. • Using solvents of any kind on your furniture may damage the finish. •...
  • Page 24 The shelves and bottom panel maximum recommended weight allowance is 22.7 kg / 50 lb. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may tip over onto the child. NEVER allow children to climb or play with the TV or furnishing supporting the TV.
