5.4 Typical Spectral Noise
Noise is being characterized by different specifications. The spectral noise of PDF10C2 was
measured using a 200 kSample/s A/D converter. The power density spectrum was calculated
from the sampled values with respect to transimpedance gain and detector responsivity. The
optical input of the PDF10C2 was blocked.
Other noise specifications are the NEP (Noise Equivalent Power) and the overall RMS output
noise, specified for a defined bandwidth. These parameters are stated in
Technical Data
).
8

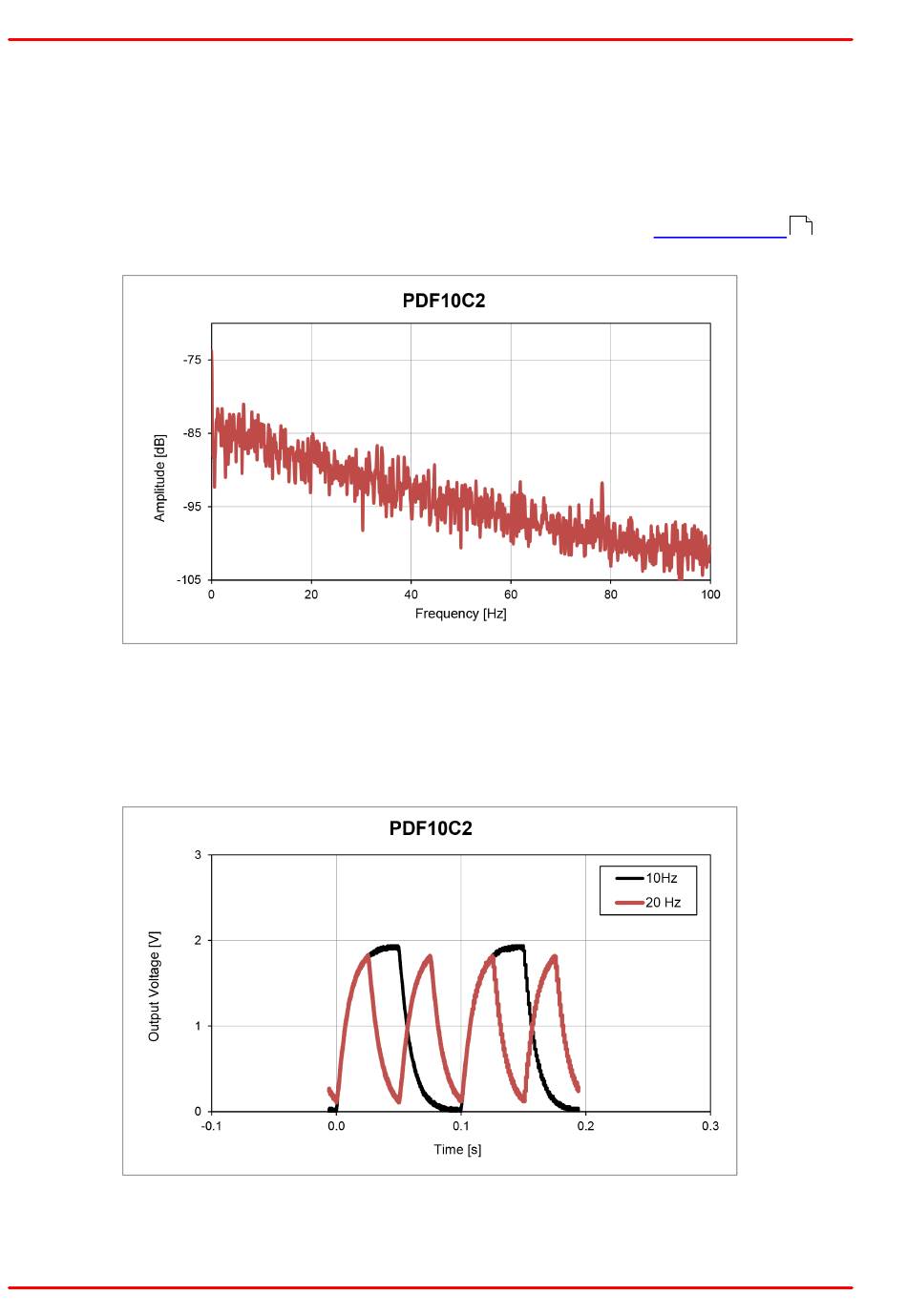

PDF10C2 Typical Spectral Noise
5.5 Typical Output Time Response
Rise/fall time measurements were carried out with the same setup described in the typical fre-
quency response.
PDF10C2 Typical Output Time Response
