Summary of Contents for THORLABS PDF10C2

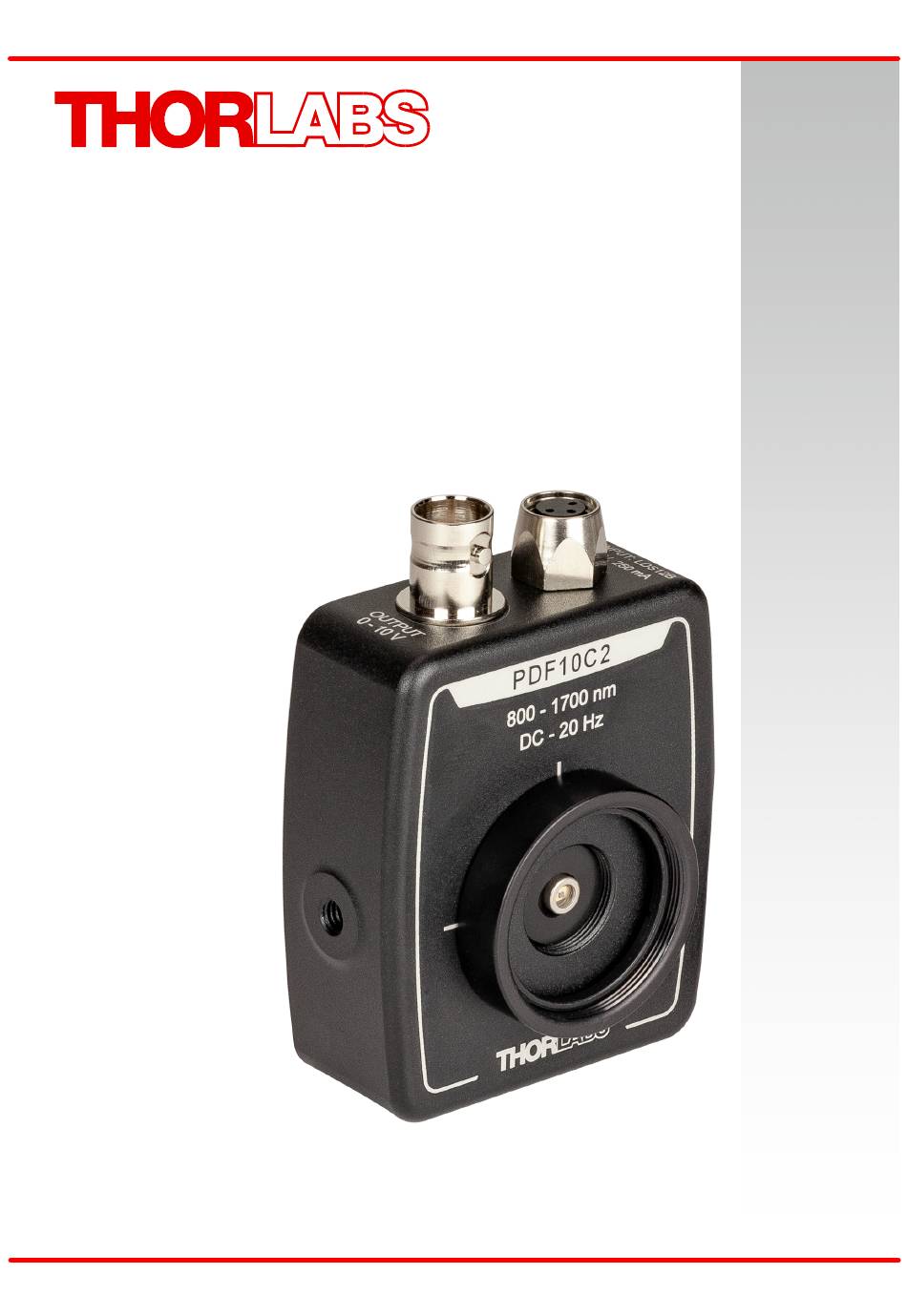

- Page 1 Femtowatt Photoreceiver PDF10C2 Operation Manual 2021...
- Page 2 Version: Date: 10-Nov-2021 Copyright © 2021 Thorlabs...
-
Page 3: Table Of Contents
5.3 Typical Frequency Response 5.4 Typical Spectral Noise 5.5 Typical Output Time Response 5.6 Drawings 5.7 Safety 5.8 Certifications and Compliances 5.9 Return of Devices 5.10 Manufacturer Address 5.11 Warranty 5.12 Exclusion of Liability and Copyright 5.13 Thorlabs Worldwide Contacts and WEEE poilicy... - Page 4 Paragraphs preceded by this symbol explain hazards that could damage the instrument and the connected equipment or may cause loss of data. Note This manual also contains "NOTES" and "HINTS" written in this form. Please read this advice carefully! © 2021 Thorlabs...
-
Page 5: General Information
· PDA-C-72 DC power supply cable to PDF10C2: This cable has a connector on one end and open wires at the other. The pin-out of the PDF10C2 DC power jack is shown in the pendix Please visit our homepage http://www.thorlabs.com for various accessories like fiber adapters, posts and post holders, data sheets and further information. -
Page 6: Getting Started
If the shipping container seems to be damaged, keep it until you have inspected the contents mechanically and electrically. Verify that you have received the following items within the package: 1. PDF10C2 Amplified Photodetector Plastic Cover Cap (Item # SM1EC2B) on... -
Page 7: Operating Instruction
PDF10C2 3.2 Mounting Housing The PDF10C2 is housed in a rugged, shielded, 70.9 mm x 49.9 mm x 22.5 mm aluminum en- closure. Mounting PDF10C2 on an Optical Table Mount the PDF10C2 on an optical post by using either of the two tapped mounting holes on the side and bottom. -
Page 8: Recommendations
(Hi-Z) loads. · Switch on the power supply. · Switch on the PDF10C2 by moving the power slider to I while the optical input is protected by the cover cap. · The maximum OUTPUT voltage swing is ±10 V for high impedance loads (>10 kW). The OUTPUT signal should stay below this maximum output voltage to avoid amplifier saturation. - Page 9 LED far away from the PDF10C2 can affect power measurements at femtowatt levels. o It is not necessary to switch off the PDF10C2 when it is exposed to ambient light. The amp- lifier will saturate but, unlike photomultiplier tubes, it will not be damaged or saturated for a long period of time.
-
Page 10: Operating Principle
Æ 0.5 mm. Due to this small active area of the PDF10C2 photodiode, it is recommended to focus the op- tical signal out of a fiber onto the detector. Because the housing is compatible with any number of Thorlabs 1” and ½” threaded accessor- ies, external optics, filters or apertures can be easily attached to the PDF10C2. -
Page 11: Maintenance And Service
Do not open the power supply unit! Cleaning To clean the PDF10C2 housing, use a mild detergent and damp cloth. Do not soak the unit in water or use solvent based cleaners. When cleaning the window of the photodetector, please remember that is a sensitive optical device. -
Page 12: Appendix
PDF10C2 5 Appendix 5.1 Technical Data Item# PDF10C2 Specifications Detector Material InGaAs / PIN Detector Wavelength Range 800 - 1700 nm Typical Max. Responsivity 1.0 A/W @ 1550 nm Detector Active Area 0.2 mm (Æ 0.5 mm) Transimpedance Gain 1 x 10 V/A ±10%... -
Page 13: Typical Responsivity
5.3 Typical Frequency Response For the measurement of the frequency response, a test signal was fed through an optical chop- per and fiber-coupled to the PDF10C2 input. The output voltage amplitude was measured with an oscilloscope. PDF10C2 Typical Frequency Response Rev: 1.0, 10-Nov-2021... -
Page 14: Typical Spectral Noise
PDF10C2 5.4 Typical Spectral Noise Noise is being characterized by different specifications. The spectral noise of PDF10C2 was measured using a 200 kSample/s A/D converter. The power density spectrum was calculated from the sampled values with respect to transimpedance gain and detector responsivity. The optical input of the PDF10C2 was blocked. -
Page 15: Drawings
5 Appendix 5.6 Drawings Dimensions of PDF10C2 Rev: 1.0, 10-Nov-2021 © 2021 Thorlabs Page 11... -
Page 16: Safety
Thorlabs. Attention Prior to applying power to the PDF10C2, make sure that the protective conductor of the 3 con- ductor mains power cord is correctly connected to the protective earth ground contact of the socket outlet! Improper grounding can cause electric shock resulting in damage to your health... -
Page 17: Certifications And Compliances
5 Appendix 5.8 Certifications and Compliances Rev: 1.0, 10-Nov-2021 © 2021 Thorlabs Page 13... -
Page 18: Return Of Devices
5.11 Warranty Thorlabs warrants material and production of the PDF10C2 for a period of 24 months starting with the date of shipment in accordance with and subject to the terms and conditions set forth in Thorlabs’ General Terms and Conditions of Sale which can be found at: General Terms and Conditions: https://www.thorlabs.com/Images/PDF/LG-PO-001_Thorlabs_terms_and_%20agreements.pdf... -
Page 19: Thorlabs Worldwide Contacts And Weee Poilicy
EC, and are not dissembled or contaminated. Contact Thorlabs for more informa- tion. Waste treatment is your own responsibility. “End of life” units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. - Page 20 www.thorlabs.com...
