Atdec AWM 460 Arm Installation Manual page 2

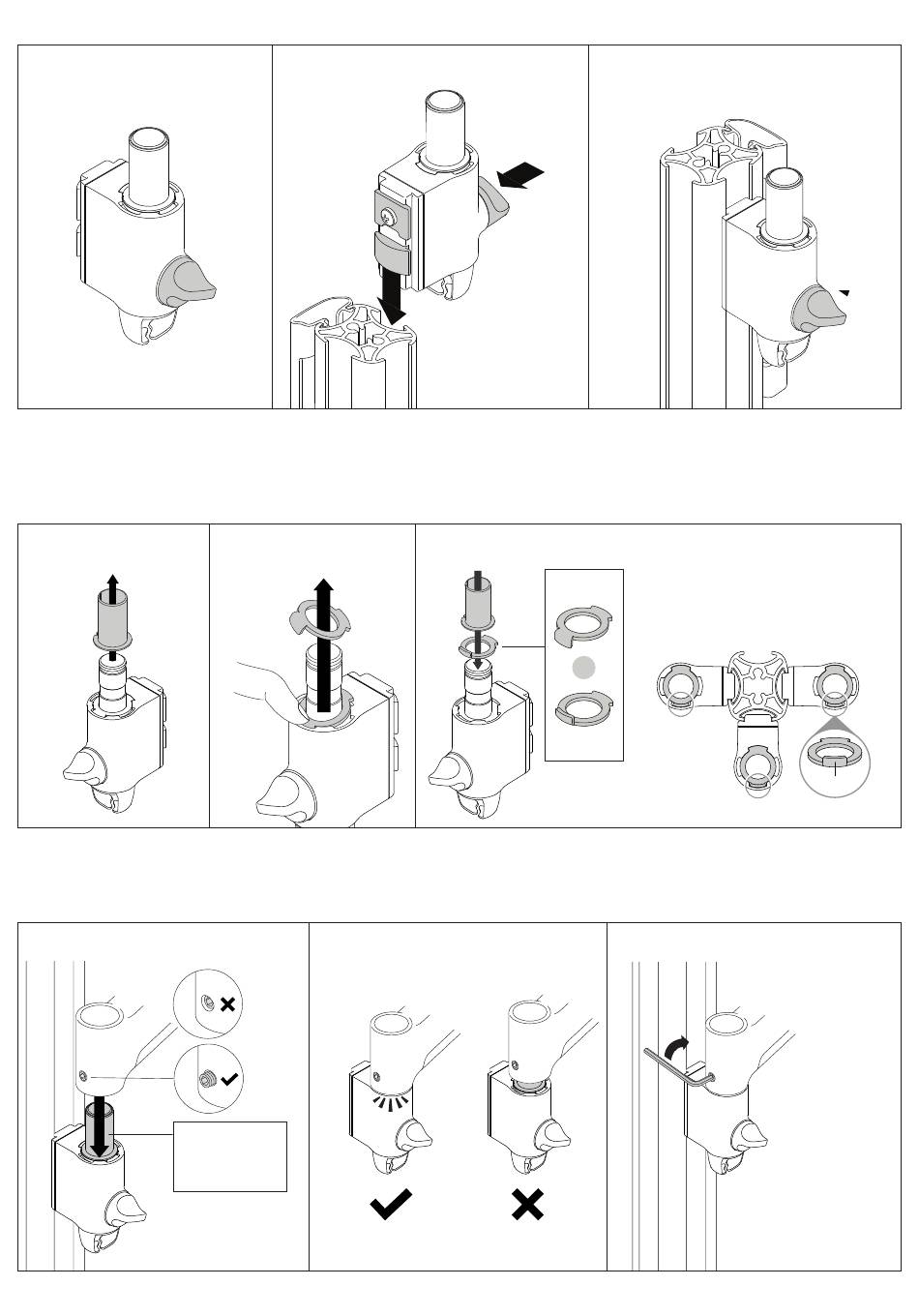

1. Fix channel clamp to post or wall channel
1.1 Ensure knob is undone.
2. OPTIONAL Set arm rotation to 180°
2. Remove rotation ring
Note rotation is set to 360° by default.
2.1 Remove plastic sleeve
from channel clamp.
3. Fit arm onto channel clamp
3.1 Push arm onto shaft.
IMPORTANT
Ensure plastic
sleeve is fitted
on clamp
1.2 Slide channel clamp into channel.
3. Place the rotation ring
2.2 Remove rotation ring. in the desired postion
2. Lift
1. Press
2. Ensure arm is fully pushed onto clamp
3.2 Ensure arm is fully pushed onto shaft.
1.3 Hold clamp in desired position on
channel and turn knob to lock in place.
Push knob to
aid insertion
2.3 Place rotation ring in desired position and replace plastic sleeve
Default
Position
360°
OR
180°
Flipped
Position
3. Tighten set screw
Note: rotation ring placement
depends on the position of the clamp
on the post. The tag on the ring
should always face toward the user.
3.3 Tighten joint screw.
Note: Check the
arm rotation is
smooth after
tightening.
AWM-A46T Page 2 of 4
Tag
Tip: Check the
arm rotation i
smooth after
tightening.
