AWM 460 Arm Heavy Duty

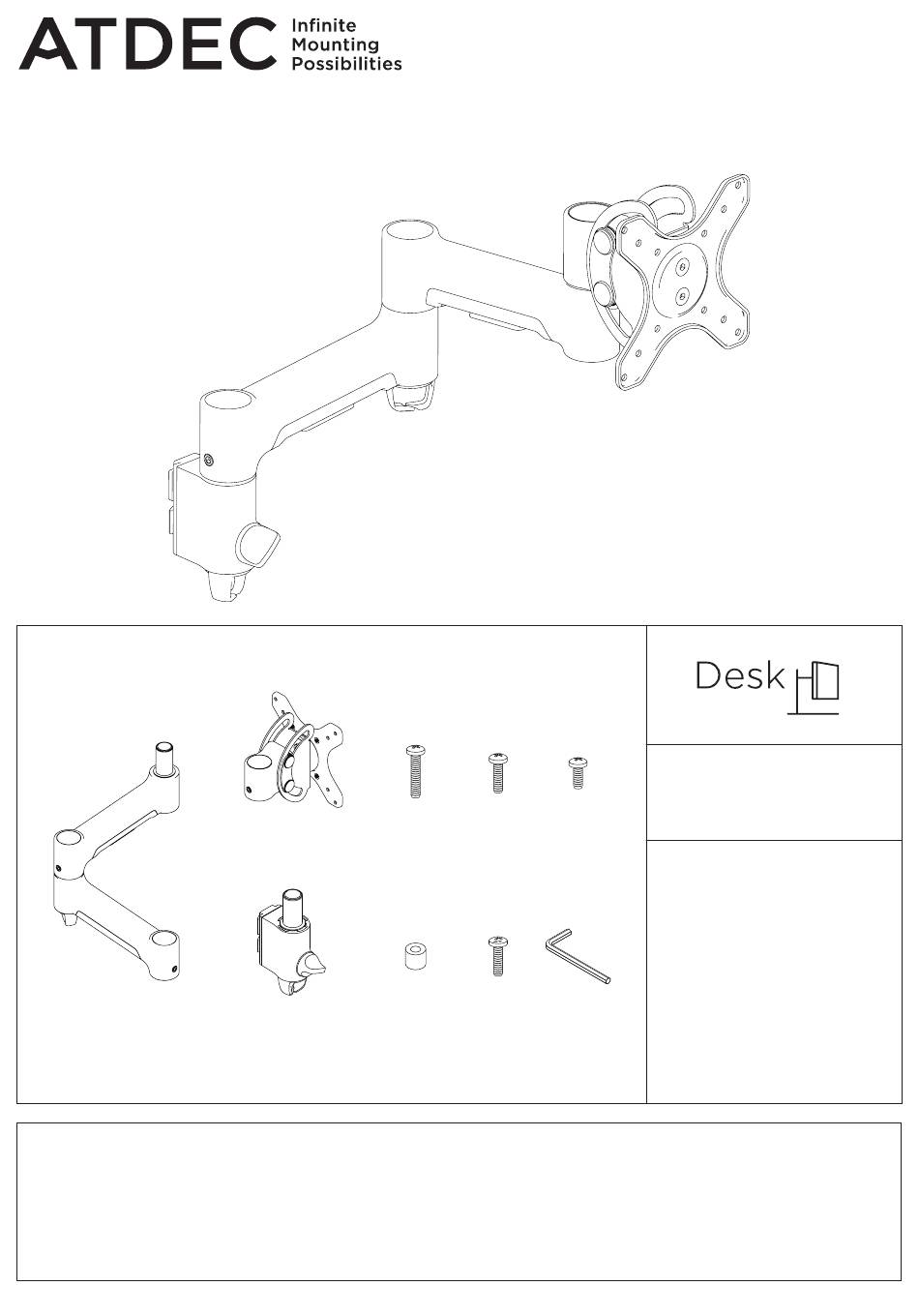

COMPONENT CHECKLIST
A
Monitor Arm
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Do not remove or throw away the plastic cap on the channel clamp.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is compatible with Atdec AWM Series products.
! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and
offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may
be within the stated range. Please contact Atdec if you would like further information.
B
Heavy Duty Tilt Head
(x1)
M4x25mm
C
Channel Clamp
(x1)
D
E
Screw
Screw
Screw
M4x16mm
M4x12mm
(x4)
(x4)
(x4)
G
H
Spacer
Security
4mm
(x4)
screw
hex key
(x4)
(x1)
Installation Guide
AWM-A46H
REQUIRED TOOLS
• Phillips Head Screwdriver
F
WEIGHT RANGE
Flat Monitors
0 - 14kg
(0 - 31lbs)
Curved Monitors
0 - 12kg
(0 - 26.5lbs)
I
Monitor weight should be within
the weight range of all modular
elements that make up the complete
monitor mounting solution.
AWM-A46H Page 1 of 4
Advertisement
Related Manuals for Atdec AWM 460
Summary of Contents for Atdec AWM 460
- Page 1 ! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information. AWM-A46H Page 1 of 4...
- Page 2 1. Fix clamp to Post sure Knob is undone 1.1 Ensure knob is undone. 1.2 Slide post clamp into channel. 1.3 Hold clamp in desired position on channel and turn knob to lock in place. Push knob to aid insertion 2.
- Page 3 5. Lock monitor rotation (Optional) OPTIONAL To lock monitor 5.1 Ensure VESA Plate is in this 5.2 Install the four Rotation Security Screws G into the front of the VESA Head rotation screw the four M5x16 orientation before installing screws. screws into the four holes on the front of the VESA Head.
- Page 4 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20220603...
