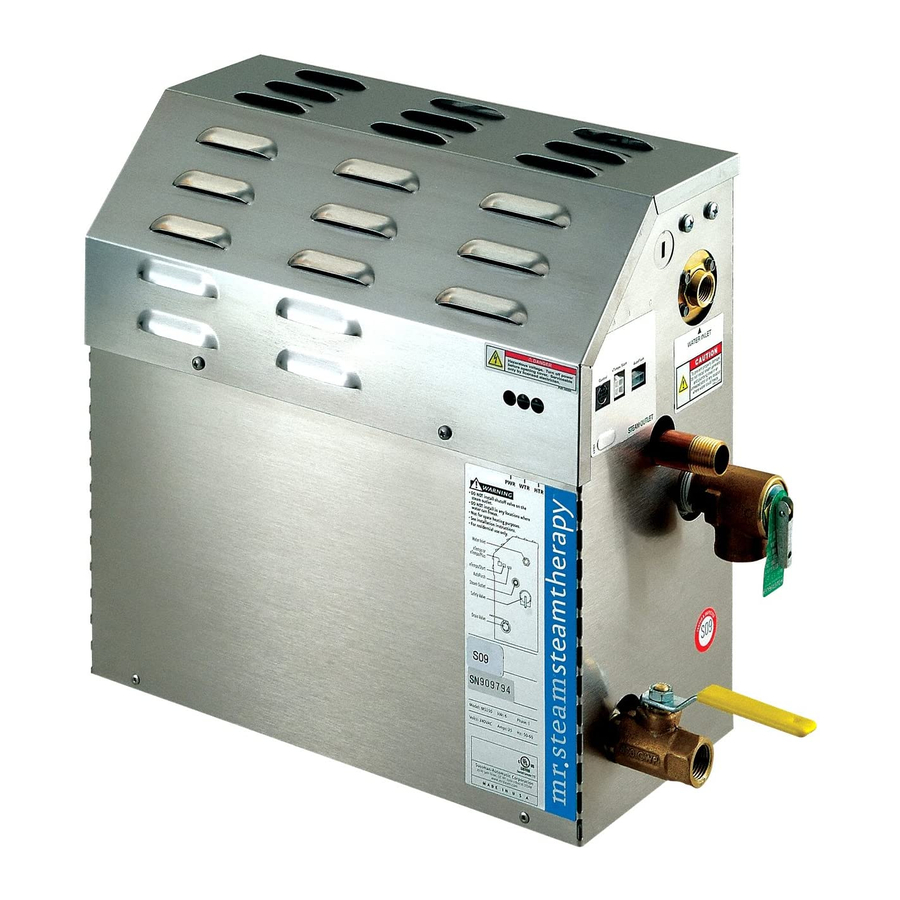

mr. steam MS90E Instructions

.
mr steam
For MrSteam Models MS90E, MS150E, MS225E, MS400E, MSSUPER1E, MSSUPER2E, MSSUPER3E,
IMPORTANT NOTE: As you follow these instructions, you will notice warning and caution symbols. This blocked information is
important for the safe and efficient installation and operation of this Generator. These are types of potential hazards that may occur
during this installation and operation:
! WARNING states a hazard may cause serious injury or death if precautions are not followed.
signals a situation where minor injury or product damage may occur if you do not follow instructions.
! CAUTION
IMPORTANT NOTE: This highlights information that is especially relevant to a problem-free installation.
!
WARNING BE CERTAIN ELECTRICITY IS SHUT OFF AT MAIN PANEL BEFORE ATTEMPTING TO WIRE OR SERVICE THE PC BOARD.
1. MS, MX, CT & SAH Generator PC Board Replacement only to be performed after consultation with a MrSteam
Technical Service Representative.
2. REPAIR PROCEDURES MUST BE ACCOMPLISHED BY A QUALIFIED LICENSED ELECTRICIAN.
3. Use only MrSteam supplied replacement parts.
4. Follow all instructions in the Steam Generator Installation, Operation, and Maintenance Manual. This manual is
provided with the generator and is also available online at: www.mrsteam.com/technical.
! CAUTION GENERATORS WITH EXPRESS STEAM AND MAX GENERATORS REQUIRE JUMPER
ADJUSTMENT. FAILURE TO ADJUST JUMPERS MAY RESULT IN EQUIPMENT DAMAGE.

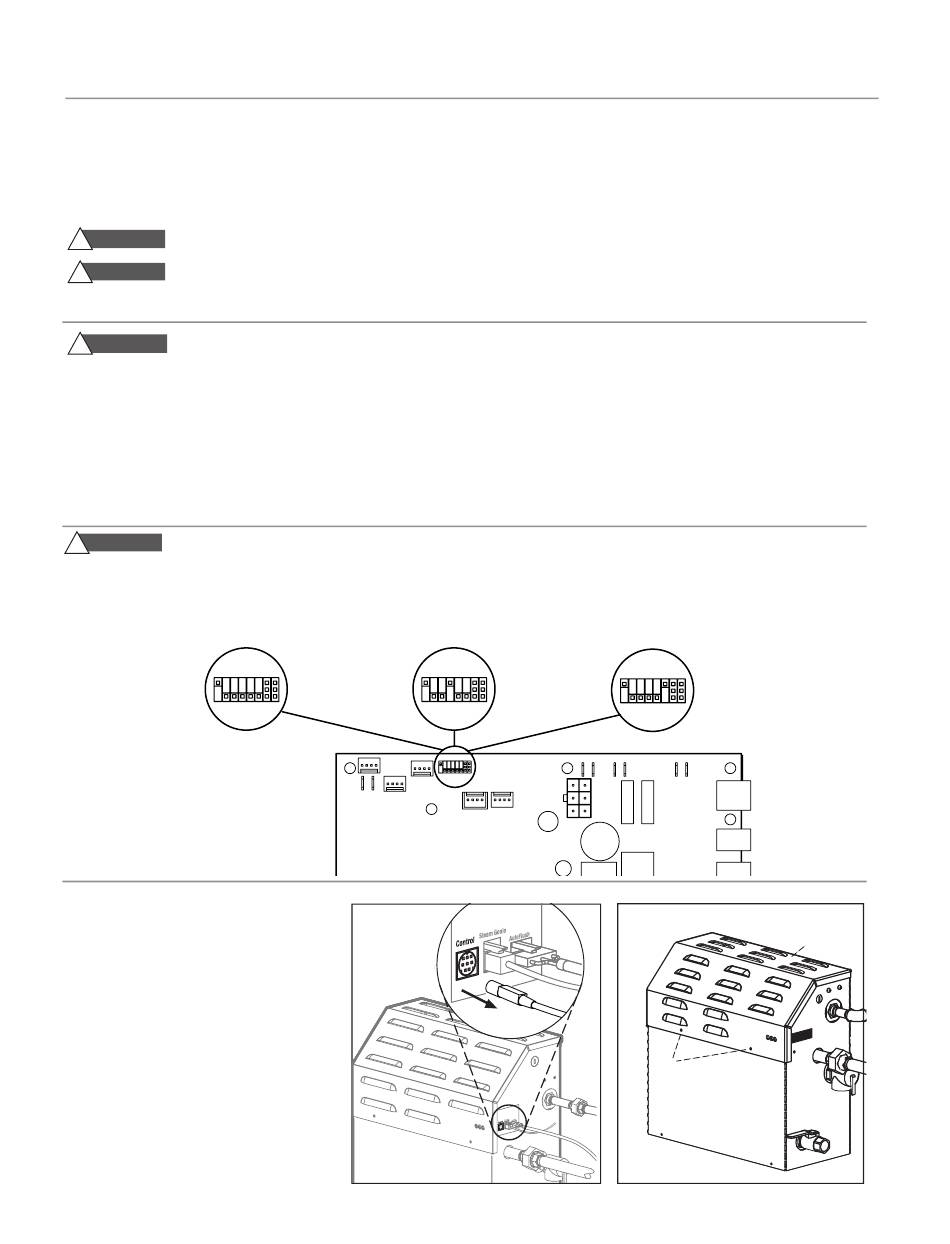

Default Jumper
Location
1 2 3 4 5 6 7 8
PC Board Replacement
1. Turn off breaker to the steam
generator.
2. Unplug all connections to the
right side of the generator,
see figure 1.
3. Unscrew 2 screws on top cover
and remove top cover to the
generator, see figure 2.
All manuals and user guides at all-guides.com
®
MX4E, MX5E, MX6E, CT6E, CT9E, CT12E, CT15E, SAH3000, SAH4500, and SAH6000
Express Steam Jumper Location
• Move Jumper 4 to Position 1
1 2 3 4 5 6 7 8
Position 2
Position 1
Figure 1
Steam
Generator
Instructions for MS, MX, CT & SAH

Generator PC Board Replacement

1 2 3 4 5 6 7 8
Position 2
Position 1
MX Generator Jumper Location
• Move Jumper 6 to Position 1
Position 2
Position 1
Figure 2
Top Cover
Screws
Steam
Generator
