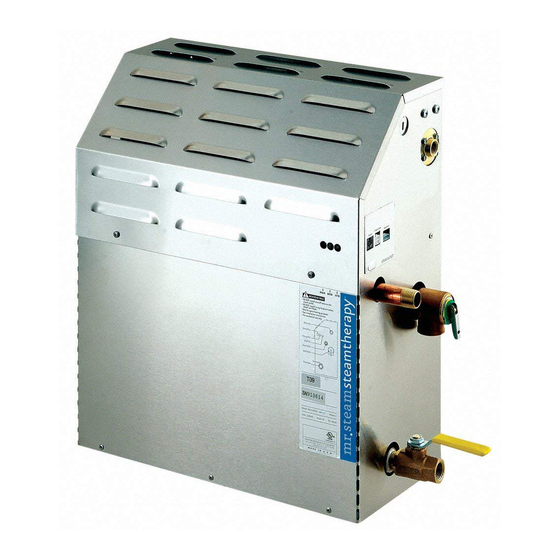

- Page 1 Installation, Operation and Maintenance Manual Steambath Generator Systems Residential Models: MS90E – MS400E and MSSUPER1E – 6E steam ® Feel Good Inc. ®...
-
Page 2: Important Safety Instructions
When installing and using this electrical equipment, basic safety precautions should R E A D M E F I R S T ! always be followed, including the following: WARNING As you follow these IMPORTANT SAFETY INSTRUCTIONS instructions, you will notice warning and READ AND FOLLOW ALL INSTRUCTIONS caution symbols. -
Page 3: Table Of Contents
RESIDENTIAL STEAMBATH GENERATOR SYSTEMS MODEL _______________________________ & INSTALLATION OPERATION MAINTENANCE MANUAL MODELS: MS-90E, MS-150E, MS-225E, MS-400E, MS-SUPER 1E, SERIAL NO. ___________________________ MS-SUPER 2E, MS-SUPER 3E, MS-SUPER 4E, MS-SUPER 5E, MS-SUPER 6E TABLE OF CONTENTS Important Safety Instructions ... . . Inside front cover Select Your MrSteam Model . -
Page 4: Select Your Mrsteam Model
Control, and two matching steamheads. MS SUPER 5E includes two MS SUPER 2E ® steam generators, and require one iTempo/Plus Control, and two matching steamheads. MS SUPER 6E includes two MS SUPER 3E steam generators, and require one ® iTempo/Plus Control, and two matching steamheads. -
Page 5: Before Installing
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ BEFORE INSTALLING ume and construction. If any questions, please refer to MrSteam sizing and selection guide on page 2. Carefully inspect the Steam Generator and packaging for shipping damage. In the event of shipping damage, please 3. -
Page 6: Water Quality Information
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ WATER QUALITY INFORMATION or optimum results, the water supply should be tested prior RECOMMENDED FEEDWATER QUALITY to installation. If the mineral content exceeds the following Hardness, ppm 8 – 85 (~0.5 – 5 gpg) recommended limits, various external treatment processes P-Alkalinity, ppm 85 –... -
Page 7: Typical Installation Instructions
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ TYPICAL M INSTALLATION TEAM CAUTION The control features an integral NOTE: Drawings for illustrative purposes only. iSteam ® , AirTempo ® temperature sensor. Locate the control in a location Consult with qualified designer, architect or or iTempo ®... -
Page 8: Installation: Plumbing, Water Supply, Drain, Steam Outlet Safety Valve, Drip Pan, Aromasteam
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ INSTALLATION STEAM OUTLET ( ⁄ " NPT) PLUMBING 1. DO NOT install any valve in steam line. Flow of steam must All plumbing shall be performed by a qualified licensed plumber be unobstructed. -
Page 9: Steam Head Installation
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ INSTALLING THE ROUND OR SQUARE 1/8" minimum clearance required ( 1 ⁄2" NPT) AROMASTEAM STEAMHEAD when Acrylic Shield is used. See installation instructions provided Use Teflon ® with the Acrylic Shield. equal sealant on ⁄... -
Page 10: Steam Generator Dimensions
DAMAGE DO NOT 3. MS Super 4E includes (2) MS Super 1E units CONNECT POWER 4. MS Super 5E includes (2) MS Super 2E units 5. MS Super 6E includes (2) MS Super 3E units SUPPLY DIRECTLY TO ELEMENTS !!! ⁄... -
Page 11: Electrical Specifications & Field Power Wiring
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ E L E C T R I C A L C H A R T ________________________________________________________________________________________________________ ELECTRICAL Max Room Wire Size Wire Size † Model No. (Cu. Ft.*) Volts Phase Amps (AWG)for 40˚... -
Page 12: Wiring Diagrams
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ SINGLE PHASE 208/240 VOLT WIRING DIAGRAMS POWER INPUT L E G E N D TRANSFORMER (All Diagrams) FIELD MODELS MS90E, MS150E, WIRING FACTORY MS225E, MS400E WIRING WATER FEED SOLENOID GROUND VALVE CONTACTOR AutoFlush... -
Page 13: Optional Tandem Cable Diagram
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ INSTALLATION INSTRUCTIONS FOR MODELS: MS-SUPER 4E, MS-SUPER 5E AND MS-SUPER 6E 1. Install each unit as in a single installation. Install the two generators as close to each other as possible. Shock Hazard. -
Page 14: Initial Start-Up & Checkout
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ INITIAL START-UP AND CHECKOUT 1. Turn on control. Follow specific instructions provided with controls. 2. Steam will begin to appear in approximately 5 minutes (unless equipped with factory-installed Express Steam option) at the steam head. Steam will shut off when desired temperature is reached and will automatically resume when room temperature drops below set point. -
Page 15: System Status Codes
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ SYSTEM STATUS CODES The control (either iSteam ® , AirTempo ® , iTempo or iTempo/Plus ) may display a status code if the steam generator is not functioning ® ® properly. -
Page 16: Optional Autoflush System
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ ® OPTIONAL AUTOFLUSH Steam Generator Box Contents 3 Pin Connector for AutoFlush AutoFlush Valve with Cord Installation Instructions. OPERATION The optional AutoFlush System feature automatically drains the MrSteam generator following each use. A time delay allows the water to cool down (about two hours) before it drains by gravity for a safe and gentle operation. -
Page 17: Optional Drip Pan
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ OPTIONAL DRIP PAN MrSteam strongly recommends the use of a drip pan in the unlikely event of a plumbing leak. Locate the drip pan on a solid level surface and place the steam generator inside the drip pan. -
Page 18: Parts Identification Diagrams
Heating Element Heater (optional) Stainless Steel Tank Nipple Manual (not included) Drain Valve Drain Line MS SUPER MODELS - MS SUPER 1E- MS SUPER 6E (with AutoFlush ® Power Block shown with cover removed Fuses Liquid Level Control Board Contactor... -
Page 19: Replacement Parts List
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ REPLACEMENT PARTS LIST _________________________________________________________________________________________________ Part No. Description Generator _________________________________________________________________________________________________ 99178MS Drain Valve All Models 99297 Safety Valve 15PSI All Models 100479 Water Feed Solenoid Valve w/filter All Models 10477-3 Transformer 24VAC All Models 103975 Liquid Level Control Board... -
Page 20: Control Installation
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ CONTROL INSTALLATION Refer to ontrol Manual for specific installation requirements BEFORE INSTALLING WARNING DO NOT route iSteam, AirTempo, iTempo/Plus, Turn power to the steam generator OFF before connecting the iTempo, HomeWizard or iGenie control wiring inside conduit control to the generator. -
Page 21: Homeowner Section
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ H O M E O W N E R S E C T I O N When using this steam bath equipment, basic safety precautions should always R E A D M E F I R S T ! be followed, including the following: WARNING As you follow these... -
Page 22: Setting Steam Bath Temperature & Duration
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ CARE TIPS FOR ALL CONTROLS AND SETTING THE STEAM BATH TEMPERATURE AND DURATION STEAMHEADS 1. Use only mild soap and water on a soft cloth to clean WARNING Set the steam bathing temperature the control and steamhead. -
Page 23: Using The Aromasteam Essential Oils
mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ ® USING M ESSENTIAL OILS TEAM njoy AromaSteam essential oils by placing a drop or two AromaSteam into an unheated AromaSteam steamhead as shown in the 10ml bottle illustration. Only use MrSteam AromaSteam essential oils in with integrated the MrSteam AromaSteam steamhead. - Page 24 steam ® Feel Good Inc. ® www.mrsteam.com Products, information and specifications are subject to change without notice. Please call Sales & Support at 1.800.76.STEAM (East Coast) or 1.800.72.STEAM (West Coast) for more information. steam ® Sussman-Automatic Corporation I hello@mrsteam.com I www.mrsteam.com ®...
