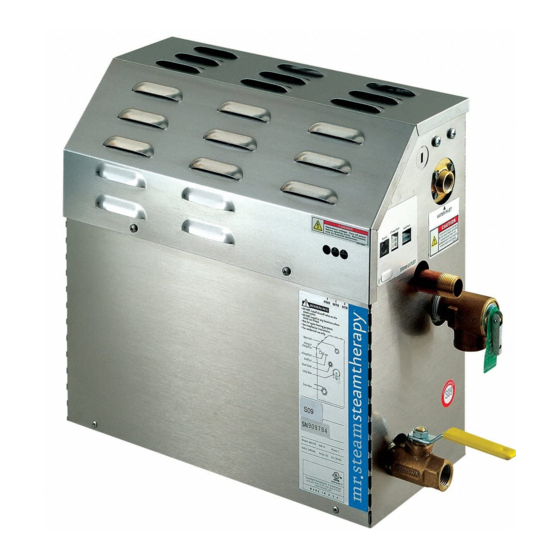

Summary of Contents for mr. steam MS-90E

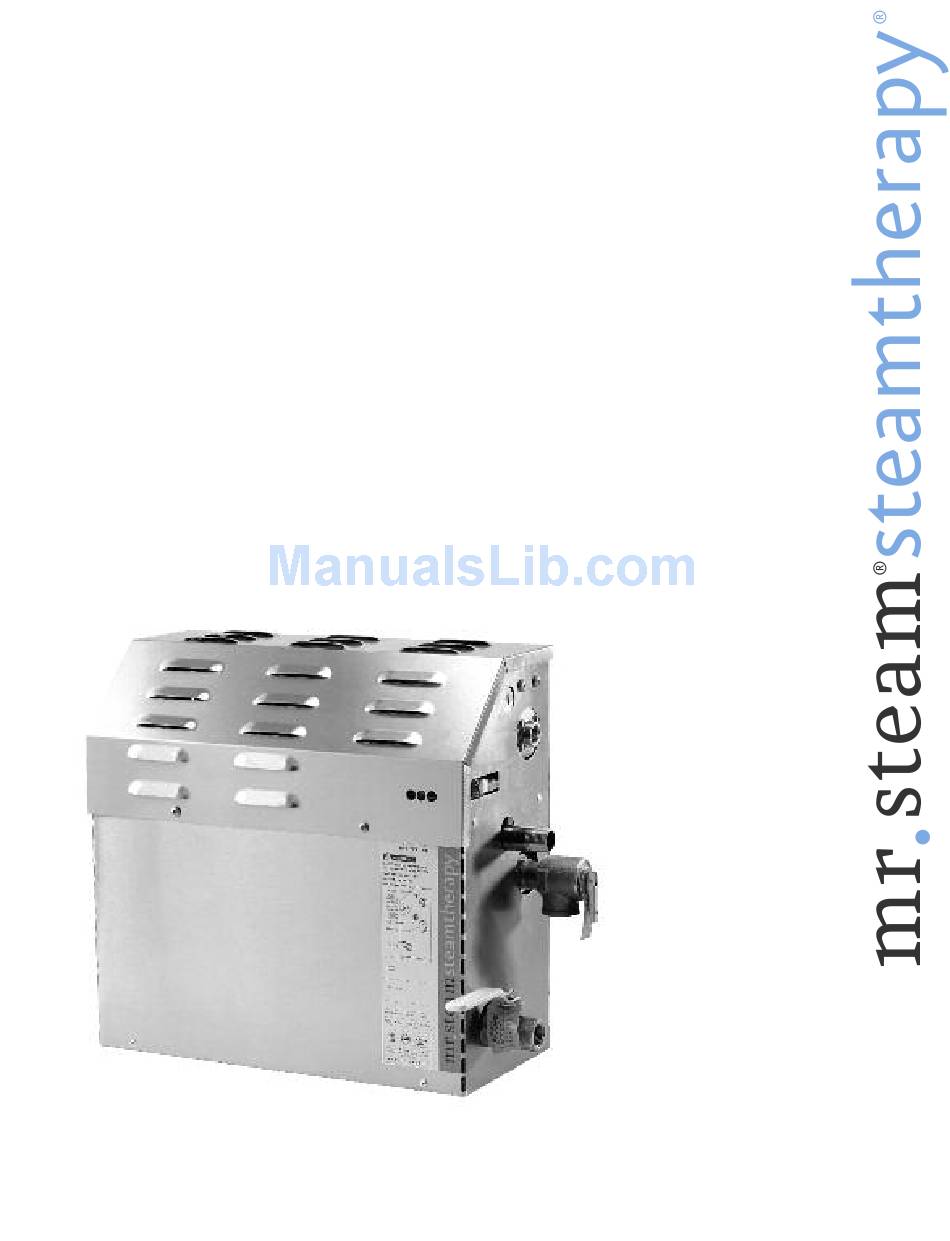

  • Page 1 Residential Steambath Generator Systems Installation, Operation & Maintenance Manual Models 90E-400E Models Super 1E-6E...
  • Page 2: Important Safety Instructions

    MODEL _______________________ Installation, Operation & Maintenance Manual SERIAL NO._____________________ MODELS: MS-90E, MS-150E, MS-225E, MS-400E MS-SUPER 1E, MS-SUPER 2E, MS-SUPER 3E, MS-SUPER 4E, MS-SUPER 5E, MS-SUPER 6E When installing and using this electrical equipment, basic safety precautions R E A D M E F I R S T !
  • Page 3: Table Of Contents

    Residential Steambath Generator Systems Installation, Operation & Maintenance Manual TABLE OF CONTENTS Read Me First! & Warning Sticker ..... 1 Select Your Mr.Steam Model.
  • Page 4: Select Your Mr.steam Model

    Refer to the National Electrical Code for other types of conductors. See Mr. Steam® Installation and Operation Manual for complete dimensional and installation information. MS SUPER 4E includes two MS SUPER 1E steam generators, and require one eTEMPO/Plus® Control, and two matching steamheads. MS SUPER 5E includes two MS SUPER 2E steam generators, and require one eTEMPO/Plus®...
  • Page 5: Before Installing

    If any questions, please refer to plumbers only. Installation or service by unqualified persons Mr. Steam sizing and selection guide on page 2. may void the warranty. STEAM ROOM GUIDELINES 8.
  • Page 6: Locating The Steam Generator Unit

    steam steamtherapy ® ® Installation, Operation & Maintenance Manual _____________________________________________________________________ LOCATING THE STEAM GENERATOR UNIT Select a location as near as practical to the steam room. Typical locations include: closet, vanity cabinet, heated attic or basement. NOTE: THE STANDARD LENGTH OF THE CABLE FOR CONNECTING THE CONTROL TO THE STEAM GENERATOR IS 30 FEET. THE STEAM GENERATOR AND CONTROL MUST BE LOCATED ACCORDINGLY.
  • Page 7: Ms Super 1E, 2E, 3E Typical Installation

    steam steamtherapy ® ® Installation, Operation & Maintenance Manual _____________________________________________________________________ MS SUPER 4E, 5E, 6E TYPICAL CONFIGURATION Installation Instructions for Models: Printed Circuit Board Component MS-Super 4E, MS-Super 5E and MS-Super 6E shown enlarged for illustrative purpose. 1. Install each steam generator as in a single installation. Diagram A Install generators as close as practical to each other, not exceeding 12 feet.
  • Page 8: Safety Valve, Drain Pan, Aromasteam

    Drain Pan Mr. Steam strongly recommends the use of a drain pan in the unlikely event of a plumbing leak. Check local plumbing codes for receptor, trap and vent requirements. Drain pans drain by gravity. The drain pan is equipped with an integral 3 / 4 "...
  • Page 9: Steam Head Installation

    steam steamtherapy ® ® Installation, Operation & Maintenance Manual _____________________________________________________________________ INSTALLING THE ROUND & SQUARE ™ AROMASTEAM STEAMHEAD 1/8" minimum clearance required when Acrylic Use Teflon ® Shield is used. See installa- equal sealant on tion instructions provided pipe threads with the Acrylic Shield.
  • Page 10: Generator Dimensions

    steam steamtherapy ® ® Installation, Operation & Maintenance Manual _____________________________________________________________________ GENERATOR DIAGRAM Water Inlet Control & Accessory Connections Steam Outlet Safety Valve Optional AutoFlush Manual Drain Valve Side View Showing Element Access Panel MS 90E- MS 400E MS Super 1E-3E _________________________________ (130) (184)
  • Page 11: Electrical Specifications & Field Power Wiring

    † 1 PH (CU. FT.*) (AWG) ________________________________________________________________________ trician in accordance with National Electrical Code and local MS-90E electrical code. ________________________________________________________________________ MS-150E Power Wiring- See “Field Power Wiring” Diagrams (below) ________________________________________________________________________ 1. Check power voltage. Use 240V rated unit when supply is MS-225E greater than 208V.
  • Page 12: Wiring Diagrams

    steam steamtherapy ® ® Installation, Operation & Maintenance Manual _____________________________________________________________________ SINGLE PHASE WIRING DIAGRAMS with eTempo and eTempo/Plus Controls ® ® POWER INPUT L E G E N D TRANSFORMER (All Diagrams) FIELD WIRING FACTORY WIRING WATER FEED SOLENOID GROUND VALVE CONTACTOR AUTOFLUSH...
  • Page 13: Installation Instructions

    steam steamtherapy ® ® Installation, Operation & Maintenance Manual _____________________________________________________________________ INSTALLATION INSTRUCTIONS for Models: MS-Super 4E, MS-Super 5E and MS-Super 6E 1. Install each unit as in a single installation as close to each other as possible. 2. IMPORTANT Power must be disconnected at the main electrical supply. Remove steam generator covers. 3.
  • Page 14: Optional Tandem Cable

    steam steamtherapy ® ® Installation, Operation & Maintenance Manual _____________________________________________________________________ OPTIONAL TANDEM CABLE For connecting more than 2 steam generators in tandem MASTER UNIT SECOND UNIT TO FIFTH UNIT TO FOURTH UNIT TO THIRD UNIT AutoFlush AutoFlush (optional) (optional) STEAM GENIE (optional) ET/Plus Control...
  • Page 15: Optional Autoflush System

    steam steamtherapy ® ® Installation, Operation & Maintenance Manual _____________________________________________________________________ ® OPTIONAL AUTOFLUSH Box Contents • AutoFlush Valve with Cord 3 Pin Connector for AutoFlush • Installation instructions. Operation The optional AutoFlush System feature automatically drains the Mr.Steam system following each use. ®...
  • Page 16: Optional Drain Pan

    Installation, Operation & Maintenance Manual _____________________________________________________________________ OPTIONAL DRAIN PAN Mr. Steam strongly recommends the use of a drain pan in the unlikely event of a plumbing leak. Locate the drain pan on a solid level surface and place the steam generator inside the drain pan.
  • Page 17: Replacement Parts Diagram

    steam steamtherapy ® ® Installation, Operation & Maintenance Manual _____________________________________________________________________ MS Regular Models - MS65E - MS400E (with AutoFlush) shown with cover removed Contactor Liquid Level Control Board Transformer Water Feed Liquid Level Probe Solenoid Power Supply Knock-Out Water Inlet Plug and Play Connection (see page 13)
  • Page 18: Replacement Parts List

    steam steamtherapy ® ® Installation, Operation & Maintenance Manual _____________________________________________________________________ REPLACEMENT PARTS LIST _______________________________________________________________________ Part No. Description Product _______________________________________________________________________ 99178MS Drain Valve All Models 99297 Safety Valve 15PSI All Models 100479 Water Feed Solenoid Valve w/filter All Models 10477-3 Transformer 24VAC All Models 103975 Liquid Level Control Board...
  • Page 19: Etempo Controls

    steam steamtherapy ® ® eTempo Controls ® __________________________________________________ _______________________ ® eTEMPO CONTROLS Dimensional Information for the Round .900 03.900 and Square eTempo ® and eTempo/Plus ® .884 BOX CONTENTS: mr steam • eT EMPO or eTEMPO/PLUS Control • Control Cable (30 ft.) temp time •...
  • Page 20: Etempo Controls

    steam steamtherapy ® ® ® eTempo Controls ______________________________________________________________________ ® eTEMPO CONTROLS Installation Instructions for Round and Square eTempo ® and eTempo/Plus ® Step 1 Determine the desired installation location of the control. The eTEMPO and eTEMPO/Plus controls are designed to be installed inside or outside the steam room as a matter of personal preference.
  • Page 21 steam steamtherapy ® ® eTempo Controls ® __________________________________________________ _______________________ Installation Instructions for Round and Square eTempo ® and eTempo/Plus ® (cont.) Step 4 Firmly connect the control connector to the control. Turn on power to the steam generator and test the control to verify correct connections.
  • Page 22: Installing The Msts Remote Temperature Probe

    steam steamtherapy ® ® ® eTempo Controls ______________________________________________________________________ INSTALLING THE REMOTE TEMPERATURE PROBE for eTEMPO & eTEMPO/Plus Controls ® ® (PN: MSTS) The Remote Temperature Probe is required when the eTEMPO or eTEMPO/PLUS Controls are installed outside the steam room. C A U T I O N The Remote Temperature Probe (P/N MSTS) is for use with eTEMPO and eTEMPO/PLUS Controls only.
  • Page 23 steam steamtherapy ® ® eTempo Controls ® __________________________________________________ _______________________ INSTALLING THE REMOTE TEMPERATURE PROBE (cont.) 5. Route the end of the temperature probe cable with the temperature probe through the wall into the steam room as shown in Diagram 3. IMPORTANT NOTE: Do not strain, staple, pinch or otherwise damage the probe cable.
  • Page 24: Installation

    steam steamtherapy ® ® ™ STEAM GENIE Controls ______________________________________________________________________ Plug Genie Interface Module ™ INSTALLING THE STEAM GENIE cable into the STEAM GENIE INTERFACE MODULE location on the steam generator GENIE INTERFACE MODULE GENIE INTERFACE MODULE Cable NOTE: For illustrative purposes only. The eTempo control cable is not shown for clarity.
  • Page 25: Pairing & Trouble Shooting

    steam steamtherapy ® ® ™ STEAM GENIE Controls ______________________________________________________________________ TROUBLESHOOTING PAIRING NOTE: The STEAM GENIE will not operate the generator • The GENIE and GENIE INTERFACE MODULE come paired without an eTempo or eTempo/Plus control from the factory with address 1. The Genie and Genie Interface Module can be set to one of eight different addresses.
  • Page 26: Care Tips, Safety & Operating Information

    steam steamtherapy ® ® ® eTEMPO controls ® eTEMPO CONTROLS Care Tips for all Controls and Steamheads 1. Use only mild soap and water on a soft cloth to clean the control. 2. Do not use abrasive cleansers 3. If the decorative cover is damaged on the eTEMPO or eTEMPO/ ®...
  • Page 27: Etempo Operating Instructions

    steam steamtherapy ® ® ® eTEMPO controls eTEMPO ® Operating Instructions The eTEMPO Control features programmable digital temperature control, a fixed (60) minute duration, ON/OFF and PAUSE. The control can be set at a temperature range from 105˚F up to 120˚F ON/OFF - Diagram 1 Press the ON/OFF key to start or stop the flow of steam.
  • Page 28: Etempo/Plus Operating Instructions

    steam steamtherapy ® ® eTempo ® Controls ______________________________________________________________________ eTEMPO/PLUS ® Operating Instructions The eTEMPO/Plus Control features programmable digital temperature control, programmable time duration, clock, Aromasteam, ChromaSteam, ON/OFF and two personal settings. DIAGRAM WA R N I N G Set the steambathing temperature according to personal preference, however it is highly recommended to begin steambathing at a low temperature setting to gauge comfort and safety levels.
  • Page 29: Aromasteam

    steam steamtherapy ® ® eTempo Controls ® __________________________________________________ _______________________ eTEMPO/PLUS ® Operating Instructions (cont.) Setting the Temperature Press TEMP key to set the desired temperature or display the temperature setting. Diagram 6 The control is preset and will display a temperature setting of 110˚F (default setting).
  • Page 30: Steam Genie Control

    AromaSteam steamhead as shown in the Your Mr. Steam STEAM GENIE requires one CR2032 disk battery available at most local drug stores illustration. Only use Mr.Steam AromaSteam essential oils in the Mr.Steam AromaSteam steamhead.
  • Page 31: Operation & Module Interface

    steam steamtherapy ® ® Steam Genie Control ™ __________________________________________________ _______________________ ™ STEAM GENIE CONTROL OPERATION: • When the eTempo/Genie light is off, press the button once and the eTempo/Genie light indicates if the steam is on or off. When you press the button, the light will momentarily twinkle between red and green.
  • Page 32 ® 2010 © Sussman-Automatic Corporation 9410 S. La Cienega Blvd. Sussman-Automatic 43-20 34th Street MR. STEAM and des., A LIFETIME OF PLEASURE, AROMAFLO, AUTOFLUSH, CLEAN STEAM...EVER TIME, CHROMASTEAM, CLUB THERAPY, ® Corporation Long Island City, NY 11101 Inglewood CA 90301...
