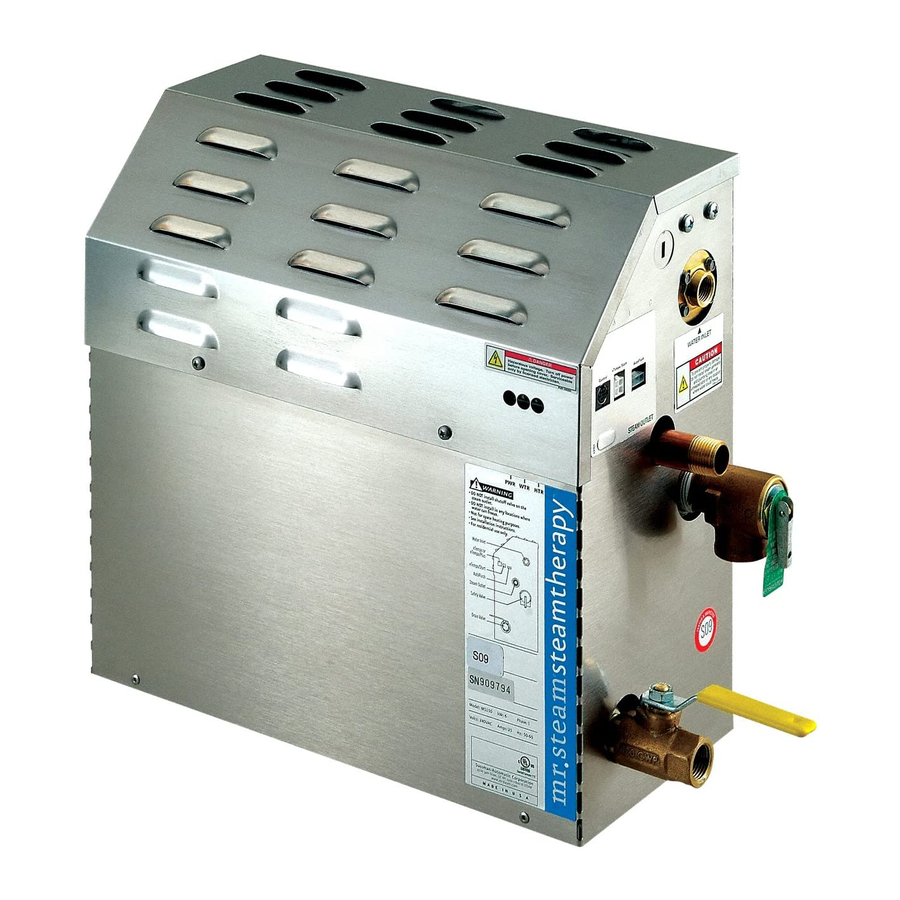

mr. steam MS90E Installation, Operation And Maintenance Manual

Steambath generator systems
Hide thumbs Also See for MS90E:
Table of Contents

Advertisement

Quick Links

Installation, Operation and Maintenance Manual
Steambath Generator Systems
Residential Models: MS90E – MS400E and MSSUPER1E – 3E
____________________
____________________
IMPORTANT:
Leave this material with the home owner.
.
mr
steam
®
Feel Good Inc.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS90E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mr. steam MS90E

Summary of Contents for mr. steam MS90E

  • Page 1 Installation, Operation and Maintenance Manual Steambath Generator Systems Residential Models: MS90E – MS400E and MSSUPER1E – 3E ____________________ ____________________ IMPORTANT: Leave this material with the home owner. steam ® Feel Good Inc. ®...

  • Page 3: Important Safety Instructions

    R E A D M E F I R S T ! When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: As you follow these instruc- tions, you will notice warning and caution sym- IMPORTANT SAFETY INSTRUCTIONS bols.

  • Page 4: Table Of Contents

    _______________________________ & INSTALLATION OPERATION MAINTENANCE MANUAL MODELS: MS90E, MS150E, MS225E, MS400E, SERIAL NO. ___________________________ MSSUPER1E, MSSUPER2E, MSSUPER3E TABLE OF CONTENTS Important Safety Instructions ......1 Select Your MrSteam Model .

  • Page 5: Select Your Mrsteam Model

    Wire Total Adj. Water Usage Shipping Model No. 240v/1PH)† Size‡ Room Vol. Gallons†† Dimensions* Wt. (lbs)** MS90E 0.67 14½"L x 14¾"H x 6¾"D 0-71 MS150E 0.80 14½"L x 14¾"H x 6¾"D 72-107 MS225E 14½"L x 14¾"H x 6¾"D 108-161 MS400E 162-257 14½"L x 14¾"H x 6¾"D...

  • Page 6: Before Installing

    mr . steam ® Installation, Operation & Maintenance Manual _________________________________________________________________________ BEFORE INSTALLING volume and construction. If any questions, please refer to MrSteam sizing and selection guide on page 3. Carefully inspect the Steam Generator and packaging for shipping damage. In the event of shipping damage, 3.

  • Page 7: Water Quality Information

    mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ RECOMMENDED FEEDWATER WATER QUALITY INFORMATION QUALITY or optimum results, the water supply should be tested prior to installation. If the Hardness, ppm 8 – 85 (~0.5 – 5 gpg) mineral content exceeds the following recommended limits, various external treat- P-Alkalinity, ppm 85 –...

  • Page 8: Typical Installation Instructions

    mr . steam ® Installation, Operation & Maintenance Manual _________________________________________________________________________ TYPICAL MrSteam INSTALLATION Drawings for illustrative purposes only. Consult with qualified designer, architect or contractor for steam room construction details. Provide unions as required The control features an to facilitate installation and integral temperature sensor.

  • Page 9: Typical Multi-Installation Instructions

    mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ TYPICAL MULTI-INSTALLATION INSTRUCTIONS (shown with optional AutoFlush) 1. Install each steam generator as in a single installation. Install generators as close as practical to each other, not exceeding 10 feet. The intercon- necting cable length is 12 feet.

  • Page 10: Installation: Plumbing, Water Supply, Drain, Steam Outlet Safety Valve, Condensation Pan, Aromasteam

    mr . steam ® Installation, Operation & Maintenance Manual _________________________________________________________________________ INSTALLATION AROMASTEAM INSTALLATION If the optional AromaSteam Electronic Oil Delivery System PLUMBING STEAM PIPING ( ⁄ " NPT) PLUMBING (PN: MS AROMA) is to be installed, a 90 degree T plumbing All plumbing shall be performed by a qualified licensed fitting must be installed at a designated location on the 1.

  • Page 11: Aromasteam Steamhead Installation

    mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ INSTALLING THE ROUND OR SQUARE 1/8" minimum clearance required ( 1 ⁄2" NPT) AROMASTEAM STEAMHEAD when Acrylic Shield is used. See installation instructions provided Use Teflon ® with the Acrylic Shield. equal sealant on ⁄...

  • Page 12: Steam Generator Dimensions

    Provide a minimum of (12) inches at both ends and top of the steam generator or as required for servicing. Alternately, provide unions as required to facilitate installation and dis- MS90E - 400E MSSuper1E-3E _______________________________________ connection of the steam generator.

  • Page 13: Electrical Specifications & Field Power Wiring

    Power Supply Field Knock-Out 4. All Drawings are for illustrative Liquid Wiring Level Probe purposes only. Consult with Models MS90E – MS400E qualified licensed electrician AutoFlush Plug and Play Connection Steam (single phase wiring shown) for electrical installation. Outlet (see page 16)
  • Page 14 . steam ® Installation, Operation & Maintenance Manual _________________________________________________________________________ SINGLE PHASE 208/240 VOLT WIRING DIAGRAMS POWER INPUT L E G E N D TRANSFORMER (All Diagrams) FIELD MODELS MS90E, MS150E, WIRING FACTORY MS225E, MS400E WIRING WATER FEED SOLENOID GROUND VALVE...

  • Page 15: Wiring Diagrams

    mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ MULTI-INSTALLATION INSTRUCTIONS 1. Install each unit as in a single installation. Install the two generators as close to each other as possible. Shock Hazard. Power must be disconnected at the main electrical supply before removing steam generator covers.

  • Page 16: Initial Start-Up & Checkout

    mr . steam ® Installation, Operation & Maintenance Manual _________________________________________________________________________ INITIAL START-UP AND CHECKOUT 1. Turn on control. Follow specific instructions provided with controls. 2. Steam will begin to appear in approximately 5 minutes (unless equipped with factory-installed Express Steam option) at the steam head. Steam will shut off when desired temperature is reached and will automatically resume when room temperature drops below set point.

  • Page 17: System Status Codes

    mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ SYSTEM STATUS CODES The control (either iSteam ® , AirTempo ® , iTempo or iTempo/Plus ) may display a status code if the steam generator is not functioning ® ® properly.

  • Page 18: Optional Autoflush System

    mr . steam ® Installation, Operation & Maintenance Manual _________________________________________________________________________ Steam Generator OPTIONAL AUTOFLUSH ® 3 Pin Connector Box Contents for AutoFlush AutoFlush Valve with Cord Installation Instructions. OPERATION The optional AutoFlush System feature automatically drains the MrSteam generator following each use. A time delay allows the water to cool down (about two hours) before it drains by AutoFlush Cord Connector...

  • Page 19: Optional Condensation Pan

    mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ OPTIONAL CONDENSATION PAN MrSteam strongly recommends the use of a conden- sation pan in the unlikely event of a plumbing leak. Locate the condensation pan on a solid level surface and place the steam generator inside the condensa- tion pan.

  • Page 20: Parts Identification Diagrams

    _________________________________________________________________________ PARTS IDENTIFICATION DIAGRAMS Contactor Liquid Level Liquid Control Board Level MS REGULAR MODELS: Probe Transformer Water Feed MS90E - MS400E Solenoid Power Supply (with AutoFlush ® Knock-Out shown with cover removed Water Inlet Plug and Play Connection (see pg. 16)

  • Page 21: Replacement Parts List

    MSTS Remote Temperature Probe (integral 30ft cable) All Models MSTS-60 Remote Temperature Probe (integral 60ft cable) All Models 100476-2 Contactor 50A 2-pole MS90E-400E, Single phase 99012 Contactor 50A 3-pole All 3-Phase Models 103453 Contactor 50A 4-pole MSSuper1E–3E 100471-2 Probe Assembly...

  • Page 22: Control Installation

    mr . steam ® Installation, Operation & Maintenance Manual _________________________________________________________________________ CONTROL INSTALLATION Refer to ontrol Manual for specific installation requirements BEFORE INSTALLING DO NOT route iSteam, AirTempo, iTempo/Plus, Turn power to the steam generator OFF before connecting the iTempo, HomeWizard or iGenie control wiring inside conduit control to the generator.

  • Page 23: Homeowner Section

    mr . steam ® Installation, Operation & Maintenance Manual mr . steam __________________________________________________________________________ ® Installation, Operation & Maintenance Manual __________________________________________________________________________ H O M E O W N E R S E C T I O N When using this steam bath equipment, basic safety precautions should always R E A D M E F I R S T ! be followed, including the following: As you follow these instruc-...

  • Page 24: Setting Steam Bath Temperature & Duration

    mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ CARE TIPS FOR ALL CONTROLS AND SETTING THE STEAM BATH TEMPERATURE AND DURATION STEAMHEADS 1. Use only mild soap and water on a soft cloth to clean Set the steam bathing temperature the control and steamhead.

  • Page 25: Using The Aromasteam Essential Oils

    mr . steam ® Installation, Operation & Maintenance Manual __________________________________________________________________________ USING MrSteam ESSENTIAL OILS njoy AromaSteam essential oils by placing a drop or two AromaSteam into an unheated AromaSteam steamhead as shown in the 10ml bottle with integrated illustration. Only use MrSteam AromaSteam essential oils in dropper the MrSteam AromaSteam steamhead.
  • Page 26 NOTES...
  • Page 27 NOTES...
  • Page 28 steam ® Feel Good Inc. ® www.mrsteam.com Products, information and specifications are subject to change without notice. Please call Sales & Support at 1.800.76.STEAM (East Coast) or 1.800.72.STEAM (West Coast) for more information. steam ® Sussman-Automatic Corporation ® I hello@mrsteam.com I www.mrsteam.com 43-20 34th Street, Long Island City, NY 11101 1 800 76 STEAM 9410 S.
