TECHNICAL DOCUMENTATION
ASSEMBLY INSTRUCTIONS
PRODUCT LINE
P R O D U K -
T R E I H E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the megaSun K7S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KBL megaSun K7S

Summary of Contents for KBL megaSun K7S

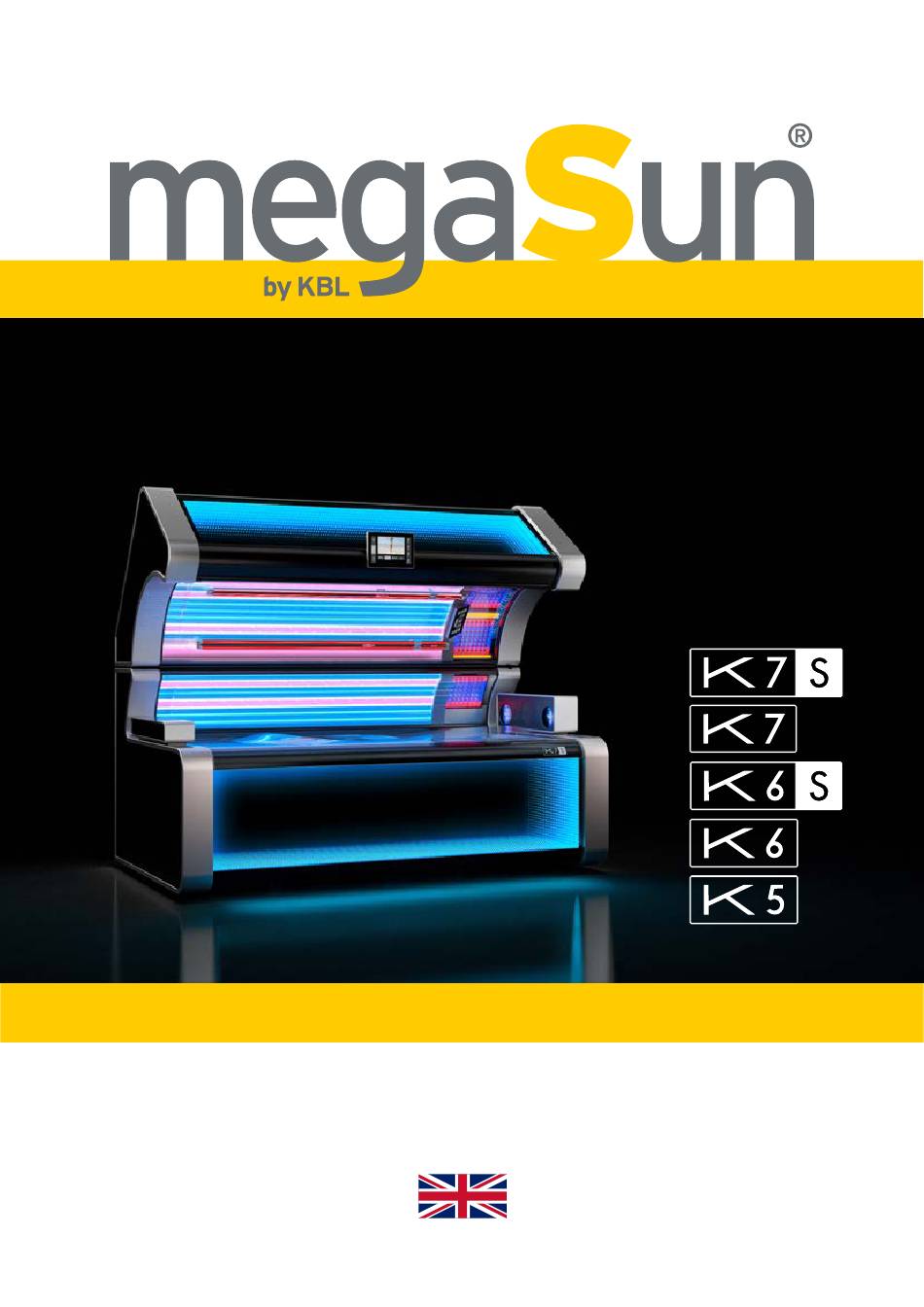

  • Page 1 PRODUCT LINE P R O D U K - T R E I H E TECHNICAL DOCUMENTATION ASSEMBLY INSTRUCTIONS...
  • Page 3 Technical equipment and versions of the devices are in accordance with the legal prescriptions of the respective country of destination. Export to the USA and Canada of the KBL products, listed in this guide, or operation of the systems in these countries, are not permitted. KBL does not accept any manufacturers liability in case this direc- tion is not adhered to.

  • Page 4: Table Of Contents

    Contents 1. General information .......... 5 1.1 About these instructions ........ 5 1.2 Safety signs ........... 5 1.3 Signal words ..........5 1.4 Definitions ............6 1.5 Transport ............6 2. Safety notes ............7 2.1 General safety advice ........7 3.

  • Page 5: General Information

    1. General information 1.1 About these instructions This symbol indicates that damages This manual is intended for use by may occur at the tanning device, at the • studio operator, material or at the environment. • qualified, trained and authorized service technicians. Danger due to leakages.

  • Page 6: Definitions

    During transport the tanning device may authorized by the manufacturer for the installation be damaged when using forklift forks and maintenance of KBL tanning devices. that are too short. • Use only...

  • Page 7: Safety Notes

    2. Safety notes 2.1 General safety advice • Before carrying out any work, the tanning device must be disconnected from the mains voltage. • This tanning device was designed exclusively for use in a commercial environment. DANGER • Follow all instructions given in this manual. In addi- Live parts tion, observe all relevant statutory provisions and Risk of death or fatal injury due to elec-...

  • Page 8: Installation Site & Dimensions

    3. Installation site & Dimensions DISTANCES n dry rooms (booths) with sufficient airing. • Even floor with sufficient load capacity • Relative humidity ≤ 70 % • Room temperature ≤ 30 • Minimal room height 2401 mm See also chapter technical data in the operating instructions.

  • Page 9: Disassembly

    4. Disassembly 4.1 Tools and aids Side cutter Cutter knife TORX wrench Allen wrench SW 6 SW 5 The disassembly and assembly steps of the tanning SW 4 device are described in the following chapters. Standard Phillips screwdriver The tools and hardware required to correctly and safely perform these steps are shown at the begin- Screwdriver ning of each chapter.

  • Page 10: Unpack Tanning Device And Accessories

    4.2 Unpack tanning device and accessories 4.2.1. UNPACK TANNING DEVICE Delivery The tanning device is delivered on a pallet. The display is not mounted and is located with the other accessories on or under the bench surface. 4.2.2 EXHAUST SHAFT AND CARTONS A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 11 4.2.3 OPEN BENCH 4.2.4 DISPLAY CARTON A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 12: Disassemble Shoulder Tanner & Air Intake

    4.3 Disassemble shoulder tanner & air intake 4.3.1 DISCONNECT PLUGS A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 13 4.3.2 REMOVE SHOULDER TANNER & AIR INTAKE A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 14: Remove The Ducting Pane And The Bench Pane

    4.4 Remove the ducting pane and the bench pane 4.4.1 OPEN BENCH PANE 4.4.2 REMOVE DUCTING PANE A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 15 4.4.3 REMOVE TELESCOPIC PROPS SW10 4.4.4 REMOVE BENCH PANE A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 16: Remove Front Panel

    4.5 Remove front panel 4.5.1 OPEN BENCH 4.5.2 REMOVE THE SCREWS A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 17 4.5.3 REMOVE FILTER ELEMENT 4.5.4 PULL PLUG A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 18 4.5.5 REMOVE FRONT PANEL A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 19: Remove Aqua/Aroma Unit

    4.6 Remove Aqua/Aroma unit 4.6.1 PULL PLUG 4.6.2 PULL OFF BOTH HOSES A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 20 4.6.3 REMOVE AQUA/AROMA UNIT A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 21: Remove Air Conditioner

    4.7 Remove air conditioner 4.7.1 PULL PLUG 4.7.2 REMOVE AIR CONDITIONER A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 22: Remove Bench

    4.8 Remove bench 4.8.1 PULL PLUGS 4.8.2 REMOVE BENCH DAMPERS Risk of tube breakage fluorescent tubes break due to shocks and defor- mation of the bench. • After removing the dampers, carefully place the bench on the electronic box. A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 23 4.8.3 REMOVE BENCH SW 6 A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 24: Remove Electronic Box

    4.9 Remove electronic box 4.9.1 PULL PLUGS A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 25 4.9.2 DISCONNECT GROUND CABLE 4.9.3 REMOVE THE COVER PLATE OF THE ELECTRONICS TRAY A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 26 4.9.4 DISCONNECT PATCH CABLE 4.9.5 DISCONNECT MAIN FAN PLUG A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 27 4.9.6 OPEN ELECTRONICS TRAY 4.9.7 DISCONNECT MAINS CABLE 3 mm A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 28 4.9.8 REMOVE ELECTRONIC BOX A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 29: Remove Rear Air Duct

    4.10 Remove rear air duct 4.10.1 PULL PLUGS 4.10.2 REMOVE AIR DUCT A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 30: Fold Down Canopy

    4.11 Fold down canopy 4.11.1 FOLD DOWN CANOPY A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 31: Remove Canopy

    4.12 Remove canopy 4.12.1 LOOSEN THE LOCKING SCREW AND LOCK THE HINGE ISK5 SW13 4.12.2 MARK POSITION OF THE PANE (OPTIONAL) A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 32 4.12.3 DISCONNECT THE PLUG AT THE BOTTOM RIGHT (OPTIONAL) 4.12.4 REMOVE INFINITY MIRROR (OPTIONAL) A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 33 4.12.5 REMOVE FRONT PLASTIC PANELS (OPTIONAL) 4.12.6 REMOVE UPPER PANELING (OPTONAL) A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 34 4.12.7 REMOVE SIDE PANELING (OPTIONAL) 4.12.8 UNSCREW INTAKE AIR BOOTS AND REMOVE CABLES AND HOSES A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 35 4.12.9 REMOVE CANOPY A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 36: Remove Feet

    4.13 Remove feet 4.13.1 DISCONNECT THE CONNECTOR LOCATED ON THE RIGHT SIDE 4.13.2 DISCONNECT THE CONNECTOR ON THE LEFT SIDE AND REMOVE THE PANELING A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 37 4.13.3 REMOVE FEET SW17 A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 38: Transport Rear Wall

    4.14 Transport rear wall 4.14.1 TRANSPORT REAR WALL A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 39: Assembly

    5. Assembly Assembly sequence Assembly is performed in reverse order to the dis- assembly instructions. Differences in the sequence are marked in red. Assembly steps Refer to chapter 4.13 Assemble the feet • Assemble the feet • Connect left side connector and install the paneling •...
  • Page 40 Assembly steps Refer to chapter Install bench 4.8.3 • Install bench 4.8.2 • Install bench dampers 4.8.1 • Connect plugs Install air conditioner 4.7.2 • Install air conditioner 4.7.1 • Connect plug Install Aqua/Aroma unit • Install Aqua/Aroma unit • Install both hoses •...

  • Page 41: Install Canopy

    5.1 Install Canopy 5.1.1 INSTALL CANOPY 5.1.2 LOOSEN THE HINGE AND TIGHTEN THE LOCKING SCREW ISK5 SW13 A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 42: Install Display

    5.2 Install display 5.2.1 CONNECT PLUGS 5.2.2 FIXING DISPLAY A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 43: Adjust The Feet And The Lock Of The Bench

    5.3 Adjust the feet and the lock of the bench 5.3.1 ADJUST FEET SW17 5.3.2 ADJUST THE LOCK OF THE BENCH SW17 Adjust the lock of the bench Adjust the end stop so that the bench can be opened and closed without any problems. A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 44: Install Ducting Pane

    5.4 Install ducting pane 5.4.1 INSTALL DUCTING PANE 5.5 Install front panel 5.5.1 INSTALL PANELS �� �� �� �� �� �� M4 knurled nuts included in the mounting material. (312.06-30109) A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...

  • Page 45: Connections & Initial Operation

    III. A residual current-operated circuit breaker (RCD) with short time delay is absolutely required. KBL recommends the following type: KBL 3200 0770 00 (type (Typ ABB F 204 A - 40//0,03 AP-R).

  • Page 46: Connecting An External Audio Source

    6.2 Connecting an external audio source When connecting an external audio source (studio music), pay attention to the correct polarity. Tanning Device CHANNEL BCD 0 BCD 1 BCD 2 External source 6.3 Connecting channel selection The following diagrams show the wiring of the chan- nel selection on the audio equipment’s side, for pulse coding as well as for BCD coding.

  • Page 47: Level Adjustment Studio Music Signal

    6.4 Level adjustment studio The level adjustment potentiometer is located on the level adjustment board. To avoid overdrive, select music signal the level adjustment accordingly. The level setting The components of the voice / audio system are installed depends on the strength of the external signal and in the canopy.

  • Page 48: Aqua Cool And Aroma Connections

    6.6 Aqua Cool and Aroma AROMA connections The Aroma box is attached within the Aqua Cool box and equipped with three hose connections, one for AQUACOOL ⑤ the compressed-air supply and two leading to the The Aqua Cool box is equipped with a liquid-level ⑥...
  • Page 49 A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 50 A s s e m b l y I n s t r u c t i o n s | megaSun K5 K6 K7...
  • Page 52 Ringstraße 24-26 56307 Dernbach / Germany fon: +49 (0) 26 89.94 26-0 fax: +49 (0) 26 89.94 26-66 mail: megaSun@kbl.de www.megaSun.de...
