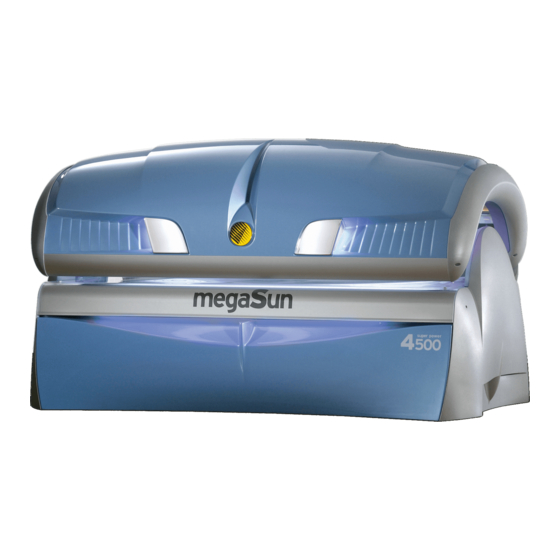

KBL megaSun 4500 Super Operation And Maintenance

Hide thumbs Also See for megaSun 4500 Super:
Table of Contents

Advertisement

Quick Links

Operation and
Maintenance
megaSun 4500
BA4500EN_C (0606)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the megaSun 4500 Super and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KBL megaSun 4500 Super

Summary of Contents for KBL megaSun 4500 Super

  • Page 1 Operation and Maintenance megaSun 4500 BA4500EN_C (0606)
  • Page 2 Copyright und Warenzeichen Printed in Germany © Copyright 2005 KBL-Solarien AG This documentation covers only products manufactured by KBL- Solarien AG. This documentation must not be duplicated, pho- tocopied, translated or stored on any electronic medium or in a machine-readable form, neither in whole or in part, without prior written consent by KBL-Solarien AG.

  • Page 3: Table Of Contents

    4500 Super, ind. / CPI, UV type 3 ...............48 8.3. megaSun 4500 Super Power, UV type 4 ................48 8.4. megaSun 4500 Super Power, ind. / CPI, UV type 3 ............49 8.5. megaSun 4500 Ultra Power, UV type 4 ................49 8.6.
  • Page 4 Operation and Service megaSun 4500...

  • Page 5: General Safety Information

    The tanning units may only be operated by a safety timer that Timer complies with any applicable standards. KBL-Solarien AG recommends the following timer model: megaTimer KBL article no. 9100025000 Before opening the unit switch off the fuses to disconnect the...

  • Page 6: Operating During The Tanning Session

    The facial tanners are always switched on after a certain delay. 2.1. Operating panel Fig. 2-1: Operation with processor KBL /5, which means the sunbed is inductively controlled an has no optional features ex- cept external music (with or without channel selection) Fig.
  • Page 7 A running text is displayed prior to starting the tanning program. Otherwise, the operating panel displays the symbols explained below. As soon as the unit has been enabled by the corresponding signal from the coin-operated studio control system, the tanning bed is ready to be operated by touching the respective sensor fi...

  • Page 8: Functions

    Channel selection with channel selection is provided with the system or if the next track of the MP3 player is to be chosen (KBL/4). In this case, the function can be found in the next menu level (double arrows). Volume You can adjust the volume of the music by touching the „+“...
  • Page 9 The power of the body fan can be increased or reduced step- Body fan wise (by 10 % each) by touching the „+“ or „–“ fi elds. The initial value after turning on the unit is set to 30%.When changing the value, the current setting is displayed as a two-digit number bet- ween „20“...
  • Page 10 The option „aroma“ is controlled by a clock relay. aroma with T on = 12 s clock relay T off = 60 s The time adjustment will be done at the relay (see pict. at the left hand side). On the upper counter, the scope is set for T on , here 6 ..

  • Page 11: Maintenance Of The Unit

    The cleaning and disinfecting agent “megaClean“, to be purcha- „megaClean“ sed from KBL, has specifi cally been developed for use on acry- lic surfaces and is regarded as safe. It is diluted in water at a ratio of 1:13.
  • Page 12 Step Procedure Reference Open the system by lifting up the canopy. Turn the right-hand / left-hand lock (with 8 mm hexagon so- Fig. 3-1 cket) carefully to the right / left and swing the front swivel Fig. 3-2 hinge profi le downwards. If necessary, pull a little bit in the middle.
  • Page 13 The following table describes the cleaning of the base pane and Base pane and the ducting pane. ducting pane The electronic parts installed underneath the bed must not get in contact with any moisture.Therefore, in order to clean the un- dersurface of the base pane and the inner base section, use a slightly damp cloth only.

  • Page 14: Filter Panes

    3.3. Filter panes The facial tanners are equipped with an additional safety func- Safety function tion. Behind each of the fi lter panes, there is a safety cutout switch that will switch off the burner in the case of a missing or broken pane.
  • Page 15 Filter panes with clamping springs Step Procedure Reference Undo the screw fastening the fi lter pane covering (1). Sw- Fig. 3-7 ing the covering towards yourself (2) and pull it out (3). Press carefully the fi lter pane downwards using both hands Fig.

  • Page 16: Tubes And Facial Tanners

    3.4. Tubes and facial tanners In order to be able to clean or replace the tubes or the facial Dismantling tanners, please carry out the procedure described below: Step Procedure Reference Dismantle the canopy pane and the base pane Section 3.2 : You will have to remove Section 3.3 For units equipped with burners...

  • Page 17: Removing The Burners

    Insert the burners straight into their sockets.After being inserted into the socket, the little metal shackle in the centre of the refl ector should face the refl ector. Abb. 3 11 Burner KBL 3230 355 00 Operation and Service megaSun 4500...

  • Page 18: Unit Lighting

    3.6. Unit lighting The coloured fi lter has to be replaced at the latest when repla- Coloured fi lter cing the tanning tubes. One tube (8 watts) each is installed in the side frames (see Fi- Replacing the gure 3-6-2), another tube (58 watts) is installed in the lower front lighting system in section (see Figure 3-6-3) and in the canopy‘s front there are the lateral part and...
  • Page 19 Fig. 3-6-3 Unit lighting in the lower base section, the starter at the left hand side Fig. 3-6-4 Chromed faceplate Fig. 3-6-5 Mounting plate Fig. 3-6-6 Mounting plate removed Fig. 3-6-7 Correct position of the connector Operation and Service megaSun 4500...

  • Page 20: Canopy Drive

    3.7. Canopy drive In order to ensure a trouble-free operation of the drive, check Regular mainte- and service it each time the tubes are replaced (see table be- nance low).If the canopy does not remain safely in the upper position any more, the spring must be re-tensioned.
  • Page 21 Figure 3-18 Canopy suspension, right-hand side and left-hand side Operation and Service megaSun 4500...

  • Page 22: Filter Mats

    3.8. Filter mats The cooling air is drawn in through two dust fi lters. Depending Cleaning interval on the installation site, clean the fi lter mats or, if necessary, replace them after approx. every 100 hours of use. To ensure trouble-free operation of the unit, exclusively use original spare fi...

  • Page 23: Cooling And Exhaust Air

    3.9. Cooling and exhaust air Unit cooling: The air for cooling the tubes and burners in the ca- nopy section is sucked in through the upper fi lter mat. Ambient air for cooling the tubes in the base section is sucked in through the front fi...

  • Page 24: Air-Conditioning Unit

    3.10. Air-conditioning unit air hose leading to bed outward condensate hose, guiding the condensate into a tank condensate pump condensate pan Check routine Check the heat exchangers of the air-conditioning unit for dirt particles each time a tube is replaced. Dirty heat exchangers reduce the capacity of the air-conditioning unit.Open the late- ral cover and vacuum-clean the heat exchangers, if necessary.

  • Page 25: Condensate Pump

    3.11. Condensate pump The condensate pump is controlled by the processor in such a Function way that, during the tanning session, it is switched on every 5 minutes for 20 seconds ( ) each. After the tanning session is over, this sequence is repeated 3 times. tanning session pump 5 min...

  • Page 26: Technical Data

    Technical data 4.1. Data that is common to all unit models A notice board bearing the following wording must be perma- nently fi xed at the cubicle wall near the tanning unit: Warning: UV radiation may cause damage to eyes and skin. Ask the operating staff for further information.

  • Page 27: Views

    Weight CPI (w. A/C) 450 (500) kg 4.2. Views Figure 4-1: side and front view 4.3. megaSun 4500 Super inductive Lamps megaSun 300 / 500 KBL 3230355000 pcs / power 3 x 300 W Filter panes T324, coated Tubes pcs / type...

  • Page 28: Megasun 4500 Super Power

    4.4. megaSun 4500 Super Power inductive Lamps megaSun 300 / 500 KBL 3230355000 pcs / power 3 x 400 W Filter panes T324, coated Tubes pcs / type Canopy 24 / megaSun Super R 24 / megaSun Ultra Power 160 W...

  • Page 29: Megasun 4500 Xxl Super Spaghetti

    4.6. megaSun 4500 XXL Super Spaghetti Tubes pcs / type Canopy 21 / megaSun XXL Super R 120 W 30 / megaSun Super R Pink 25 W Bench 16 / megaSun Super R 100 W Rated capacity W w. air-conditioner 7115 w/o air conditioner 6155...

  • Page 30: Wiring Diagrams

    „Technical data“. An FI protective switch (residual current- ted circuit breaker operated circuit breaker) is required in any case. KBL recom- (FI) mend the following type: KBL 3200 077000. Should any interference occur due to the operation of your tan- ning unit with the mains, e.g.

  • Page 31: External Audio Signal

    Audio signal For this application, a transformer 91000170 is required. The 100 V audio signal audio signal is connected at the terminals „IN“ Transformer KBL 9100 0170 00 Audio amplifi er 3220285000 E8: 6 5 ..2 1 Vol. Transformer megaSun 4000...

  • Page 32: Music Preselection

    Music Preselection The function P (=program) allows it to choose one out of three Preselection music sources - provided that they are confi gured in the service menu. Audio switch MP3 player Music amplifi er 3220 2885 00 3220 3233 50 music Preselection 3220 3222 90...

  • Page 33: External Timer

    Release signal Door contact Timer Wire Nr. gnge Cable* Ölfl ex 7 x 1 mm gnge Wire Nr. Control Start (230V/2A) megaSun 4500 * supplied by KBL Operation and Service megaSun 4500...

  • Page 34: Service Mode - Inductive

    The inductive controlled sunbeds are equipped with the KBL Differences processor /5 and the CPI controlled devices with the KBL pro- zessor /4. The processor /4 used a serial interface for software download. All functions (see chapter 7) are available in this sun- bed.

  • Page 35: Service Level I - Inductive

    6.1. Service level I - inductive The following menus are available on service level I; they may Menus be entered by keys 5 (forward) and 0 (back): — Unit operating hours — PIN II — Reset working hours of tubes —...

  • Page 36: Service Level Ii - Inductive

    Service Mode CPI The inductive controlled sunbeds are equipped with the KBL processor /5 and the CPI controlled devices with the KBL pro- zessor /4. Also, inductive controlled sunbeds with more features than external music are equipped with the KBL processor /4.
  • Page 37 Illustr. 7-1 Touch keys 1 ... 0 for service operations In order to get access to level I, fi rst enter the sequence 1 6 1 Service level I and then PIN 1 1 1 1. This level comprises service pages that may be used by techni- Service level II cal service staff only.Starting from level I, menu „PIN II“, you will get into level II by entering the correct PIN (not 1 1 1 1!)
  • Page 38 Service level I Operation-Info Working hours Tube hours Mode Ö / P / SP CPI RESET Air Condition Air Cond on/off Blower delay Blower start Timer A on Timer Monday MO Timer A off Tuesday TU Timer B on Sunday SU Timer B off Time/ Date Clock...
  • Page 39 Service level II Confi guration C M A B Adjust of the tube Zero or start value hours Timestamp Display clock 1st Llading Timestamp Display Date last loading Operation and Service megaSun 4500...

  • Page 40: Service Level I - Cpi

    7.3. Service level I - CPI In this menu, the service hours of the sunbed (WORK) and the Operation info burning time of the tubes (TUBE) are displayed. Display Selection You open this menu using START (here OPERATION-INFO). You go back to the next higher level menu using STOP (here OPERATION-INFO).
  • Page 41 This menu offers the following possibilities: Air-conditioning — The air-conditioning system can be switched on or off. When Ventilator the software has been loaded it is in the ON position. In this menu, it can be switched off or on. —...
  • Page 42 Weekday: Monday ... Sunday Selection Confi rmat..Switching time A/BON und A/BOF Hrs / Min Store This menu shows time and date. Both values can be changed. Time / Date Display Date Selection Change the time Selection Store Hrs.
  • Page 43 This menu has the following sub-menus: Audio • EXTERN: If the signal is ON, an external source sends the music signal, otherwise the internal MP3-player is used. • VOL. HOT: the volume of the music or of the user guidance system when the fan is running •...
  • Page 44 First, you set the active confi guration in the menu W P S. The W Wellness music „+“ keys above W, P or S stand for the option „on“. You can ac- P Pop music tivate all three sources at once if they are physically available. S Music from To deactivate an option press the „-“...

  • Page 45: Service Level Ii - Cpi

    7.4. Service level II - CPI This level contains the following menus: Overview Selection of the menus by pressing the keys 0 or 5 In this menu functions can be activated or inactivated. This Confi guration makes sense when the corresponding function is missing or menu temporarily not available (faded out).

  • Page 46: Error Messages

    Here you can store the time stamps of the fi rst and last down- Time stamps load of the software. he menus by pressing the Selection First Download Selection Last Download 7.5. Error messages The cause of the error message has to be removed by service Error messages staff.

  • Page 47: Tanning Instructions

    Tanning instructions 8.1. General tanning instructions Note The various skin types can tolerate exposure to sun and the duration of tanning sessions to different extents. Use the skin type table and the re- spective tanning program as guidelines. Once you have reached your fi nal tan, further tanning can only be achieved by considerably exceeding the recommended tanning times.

  • Page 48: Megasun 4500 Super, Ind. / Cpi, Uv Type 3

    8.2. megaSun 4500 Super, ind. / CPI, UV type 3 Tanning session Skin type II Skin type III Skin type IV Time in min The interval between two tanning sessions must be at least 48 hours. Max. number of tanning sessions per year @ 15 kJ/ m²...

  • Page 49: Megasun 4500 Super Power, Ind. / Cpi, Uv Type 3

    8.4. megaSun 4500 Super Power, ind. / CPI, UV type 3 Tanning session Skin type II Skin type III Skin type IV Time in min The interval between two tanning sessions must be at least 48 hours. Max. number of...

  • Page 50: Megasun 4500 Ultra Power, Ind. / Cpi, Uv Type 3

    8.6. megaSun 4500 Ultra Power, ind. / CPI, UV type 3 Tanning session Skin type II Skin type III Skin type IV Time in min The interval between two tanning sessions must be at least 48 hours. Max. number of tanning sessions per year @ 15 kJ/m²...

  • Page 51: Megasun 4500 Xxl Super Power Spaghetti, Uv Type 4

    8.8. megaSun 4500 XXL Super Power Spaghetti, UV type 4 Tanning session Skin type II Skin type III Skin type IV Time in min The interval between two tanning sessions must be at least 48 hours. Max. number of tanning sessions per year @ 15 kJ/m²...

  • Page 52: Index

    Index Symbole 100 V audio signal Mains voltage Menus inductive Air-conditioning unit 24 Air-conditioning Ventilator Air conditioner Operation Anschlussdiagramm Externer Timer aroma 10 Running time Audio 43 Operation menu Audio amplifi er Safety information Base pane and ducting pane Service level II - inductive Body fan Service levels CPI 36...

This manual is also suitable for:

Megasun 4500 seriesMegasun 4500 xxl super spaghettiMegasun 4500 xxl super power spaghettiMegasun 4500 xxl ultra power spaghettiMegasun 4500 ultra power
