KBL megaSun K11 Air Operating Instructions Manual

Hide thumbs Also See for megaSun K11 Air:

Advertisement

Quick Links

Download this manual
OPERATING INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the megaSun K11 Air and is the answer not in the manual?

Questions and answers

Related Manuals for KBL megaSun K11 Air

Summary of Contents for KBL megaSun K11 Air

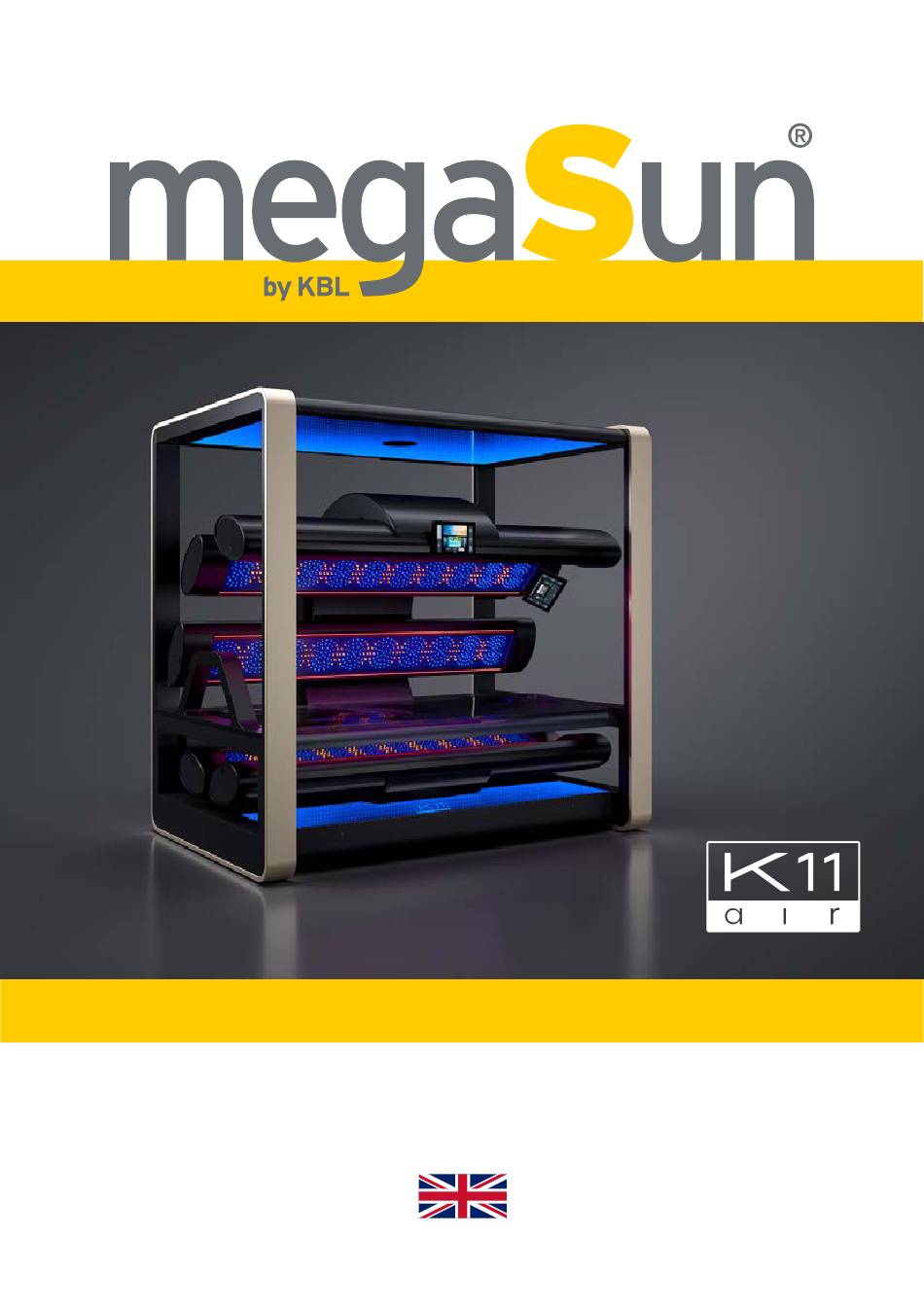

  • Page 1 OPERATING INSTRUCTIONS...
  • Page 3 The devices listed in these operating instructions may neither be exported to Canada or the USA nor be operated there. In such a case, KBL GmbH shall assume no manufacturer’s liability. It is expressly pointed out that high liability risks may arise for the exporter and/or operator in the event of infringe- ments.
  • Page 4 Content General ..............5 Standby mode ............30 About these instructions .......... 5 Service mode............30 Safety sign ............... 5 beautyBooster in standby mode ......30 Signal words ............5 Setting the decorative lighting ....... 30 Definitions ..............6 Standby functions ..........30 Transport ..............
  • Page 5 General About these instructions This symbol indicates that there is a risk to the health of persons due to trapping. These instructions are intended for When assembling heavy parts of the • the studio operator, device, you may trap your fingers or •...
  • Page 6 • Lift the load a few centimetres. have been trained and authorised by the manufac- • Carefully move the load to the installation site. turer for assembly and maintenance work on KBL tanning devices. OTHER TYPES OF TRANSPORT If transport by forklift is not possible, the tanning device must be unpacked and partially disassembled.
  • Page 7 Disposal of old equipment Ambient conditions This tanning device consists of Operation only in dry rooms with sufficient aeration components which must never be and ventilation. disposed of with household waste! Do not operate the tanning device in Make a valuable contribution to environmental pro- aggressive ambient conditions (e.g.
  • Page 8 Interruption of the booting OPERATION IN MOBILE FACILITIES Mobile facilities include among others water and rail process vehicles. Additional safety measures are required for operation on/in any type of carrier vehicle! If the boot process (start attempt) is interrupted several times, the software WARNING version is automatically reset to the pre- vious version.
  • Page 9 Safety instructions In this chapter you will find general information on Tanning must be done while lying down. The posi- the subject of safety and the handling of this tanning tion must be chosen so that the control panel can be device.
  • Page 10 The manufacturer accepts no liability for damage or injury resulting from improper handling or non-obser- vance of these operating instructions. Only use spare parts approved by KBL! Replace lamps only with those marked on the tanning device, otherwise the operating permit and warranty will...
  • Page 11 To maintain operational safety, the tanning device must be subjected to periodic inspections by KBL customer service or an approved specialist company every 12 months from the time of commissioning. Inspection and maintenance work must be entered in...
  • Page 12 The standards and directives applicable for the tan- External control panel ning device can be found in the CE declaration of Upper part tube with internal control panel conformity -> (https://media.kbl.de). and air vents Upper part tubes with audio system Assemblies...
  • Page 13 Device connections - audio LEVEL ADJUSTMENT You will find information on other device There is a rotary control for level adjustment on the connections in your installation instruc- level adjustment board. Select the level setting so tions in the chapter “ Connection & Com- missioning ”.
  • Page 14 Using different music sources Bluetooth connection ® The music source can be selected and changed at In order to connect external Bluetooth players (smart- any time on both control panels. The tanning device phones, etc.) wirelessly to the tanning device, a Blue- can be operated with the following music sources: tooth interface is optionally available.
  • Page 15 BLUETOOTH DEVICE COMPATIBILITY KBL GmbH attaches the greatest possible importance to hardware compatibility! Due to the large number of manufacturers of Bluetooth devices, compatibility cannot be 100% guaranteed. In rare cases, it may not be possible to establish a connection.
  • Page 16 Commissioning Operating modes Initial commissioning is carried out by the manu- facturer or by trained and authorised specialist per- STANDBY MODE sonnel. The tanning device is handed over ready for The tanning device is in standby mode; this means it operation.
  • Page 17 Tanning instructions As a rule, normally tanning skin will have achieved an • The unprotected eye can become inflamed on the even tan after three to five tanning sessions. These surface and in certain cases, e.g. after cataract sur- gery, excessive radiation can damage the retina. tanning sessions should be done every other day.
  • Page 18 Tanning times Please refer to the tables below for the tanning times that apply to you. If there is no tanning for four weeks, you must start again with the first tanning session. The time interval between two tanning sessions must be at least 48 hours.
  • Page 19 Tanning schedule - EU - UV type II (According to UV type II pursuant to EN 60335-2-27-2021) Skin types All types of devices 1. Tanning 5 min 5 min 5 min 5 min 5 min 2. Tanning 11 min 11 min 11 min 11 min 11 min...
  • Page 20 Tanning mode Depending on the equipment, different functions are WARNING available here with the help of which you can make a preselection. Overdosed UV radiation If tanning for an uncontrolled length of Your choice remains valid for 3 minutes! time, severe skin and eye damage will occur.
  • Page 21 SunControl - Stepless selection - Music Direkte Bräune Pigment Aufbau Sunset Sunrise Voice BAHAMAS SunControl - Direct selection - Sensitive Medium Intense Aqua Cool Direct selection of the tanning level PRESELECTION POSSIBILITIES SYMBOL STATUS (EXAMPLE) Active options. Sun - SUNFINITY settings Options not available with the device.
  • Page 22 SUN (SUNFINITY LED TECHNOLOGY) SunControl - location SunControl - variable Location-dependent direct selection. The composi- Stepless adjustment of the composition of the sun tion of the sunlight depends on the selected location. light via slider control. Variable between sunrise and sunset.
  • Page 23 AUDIO VOICE Voice Audio Studio Bluetooth Switch voice guidance (megaVoice) on or off. AIR CONDITIONING Music Relax Preselecting the music source You can make a preselection between three different music sources. During tanning, it is possible to change the music source at any time via the internal control panel.
  • Page 24 Level 1 Level 2 Level 3 LEVEL 1 - 2 - 3 Select ventilation level. Ventilation off. AQUA COOL Aqua Cool Level 1 Level 2 Level 3 LEVEL 1 - 2 - 3 Select the intensity of the Aqua Cool spray. Aqua Cool spray off.
  • Page 25 FUNCTIONS Music Sunrise Sunset BASIC FUNCTIONS Sun Face VENTILATION 10:26 START START FACE / BODY AQUA COOL Spray AIR CONDI- STOP Info line STOP KBL - Relax and rewind Comfort TIONING Music selection & volume Operating instructions | megaSun K11...
  • Page 26 Sunset CONTROL PANEL Sun Face 10:26 START max / on Spray STOP KBL - Relax and rewind Comfort min / off AQUA COOL - DIRECT Spray Manual start of an Aqua Cool spraying phase. SYMBOL STATUS (EXAMPLE) BODY FAN The body fan is automatically controlled by ACS.
  • Page 27 TANNING FUNCTIONS SUNFINITY - BODY TANNER Music Sun Body Sunrise Sunset Intensity Beauty Sun Face Sun Body START Sensitive Medium Intense STOP Comfort SUNCONTROL - VARIABLE SUNFINITY - FACIAL TANNER Sun Face Function analogous to the external control panel Press and hold for 2 sec. = off CHANGING THE TANNING LEVEL Sensitive Intensity...
  • Page 28 VENTILATION (AIR) FUNCTIONS COMFORT FUNCTIONS Aqua Cool Air conditioning Body Face Music Music Spray START START Breeze STOP STOP Comfort Comfort FAN LEVELS AQUA COOL on / off A spraying process in progress cannot Level 1 Level 2 Level 3 be stopped.
  • Page 29 SELECT MUSIC SOURCE AIR CONDITIONING It is possible to use either “Studio” or on / off “Web radio”. In order to use “Studio”, “Web radio” must be deactivated in the After switching off, a 3-minute switch lock service menu. takes effect for safety reasons. If the air Air conditioning conditioning is switched on during this time, this is noted.
  • Page 30 Standby mode Standby functions In standby mode, you can switch the music and the decorative lighting of the tanning device on and off Press the three dots on the external control panel or and trigger an Aqua Cool spray test (1 spraying pro- the STOP button on the internal control panel until the cess).
  • Page 31 STANDBY FUNCTIONS Switch the decorative lighting on / off. Decorative lighting Start Aqua Cool spray test. Aqua Cool spray test Switch standby music on / off. Standby music active Serial number 0301, version 423 / 02 Video function Videos and pictures can be displayed on the external device in standby mode.
  • Page 32 • Create a documentation system for your mainte- tanning device must be subjected to nance and service reports. periodic inspections by KBL customer service or an approved specialist • Ensure that all inspection and maintenance intervals company every 12 months from are fully observed and documented as described in the time of commissioning.
  • Page 33 Cleaning and disinfection Before carrying out maintenance work, disconnect the tanning device from the mains voltage and secure CAUTION it against being switched on again! Risk of infection ADDITIONAL SAFETY MEASURES Risk of infection from transmission To prevent serious accidents, be sure to attach an through skin contact! adhesive tape strip with the following wording to all •...
  • Page 34 CLEANING & DISINFECTION SCHEDULE ③ ① ② ⑥ ① ④ ⑤ ⑦ Component Application Description of the cleaning procedure Interval ① Lower acrylic pane & Directly on the • Use a suitable cleaning and disinfecting agent (e.g. handle surface megaClean plus) and dilute it according to the man- ②...
  • Page 35 Carrying out maintenance work Maintenance intervals Depending on the required level of knowledge, main- MAINTENANCE BY OPERATING PERSONNEL tenance work may be carried out by “operating per- sonnel” or exclusively by “trained and authorised spe- cialist personnel”! Component/ Activity wear part MAINTENANCE BY OPERATING PERSONNEL This maintenance work may be carried out by “oper- Replace as soon as the corre-...
  • Page 36 Inspection and maintenance work elements Replace must be entered in the inspection and oper- Check and replace ating logbook of the tanning device! (KBL if necessary item number: 1100117110). Contactors If the tanning device has been in use for...
  • Page 37 Maintenance by operating LED light sources personnel In case of a defect, the replacement can only be made by trained and authorised specialist personnel. Contact your service partner. This manual describes maintenance work for “operating personnel”! The Acrylic panes description of maintenance work that must be carried out by “qualified per- OPENING THE LOWER ACRYLIC PANE sonnel”...
  • Page 38 Filter cartridges Condensate tank The cooling air in the tanning device is filtered by means of permanent filters through filter cartridges in the end caps of the LED tubes. This eliminates the need to purchase and replace conventional filter mats. Depending on the local conditions, clean the filter cartridges after approx.
  • Page 39 Bacteria formation due to improper use can lead to skin rash and other allergic reactions! • Only use Aqua Cool from KBL. • Observe the expiry date and the infor- mation on transport and storage on the containers.
  • Page 40 ⑦ ⑧ Unscrew the lid with the hose from the con- ⑦ tainer. Put the end of the hose with the lid into a plas- tic bag while changing the container. ⑧ Replace the container. ⇒ Start Aqua Cool initialisation (service menu). Operating instructions | megaSun K11...
  • Page 41 System messages ERROR MESSAGES All error messages must be acknowledged with the OK button! Status text Description Remedy A deviation was detected in the mains Mains frequency off limit. Restart the control unit. Contact service after the third frequency. Device has been switched off Safety shutdown! unsuccessful restart.
  • Page 42 INFO MESSAGES All info messages must be acknowledged with the OK button! Status text Description Remedy Aqua Cool liquid container Replace the empty Aqua Cool canister with a full one. The content of the Aqua Cool canister is almost empty. Please Do not replace Aqua Cool with other liquids.
  • Page 43 Technical data Ambient conditions In dry rooms (cabins) with sufficient ventilation. • Relative humidity: max. 70% Installation site • Room temperature: max. 30°C • Minimum room height: K11 Air 2435 mm / K11 Air (LOFT) 2850 mm Dimensions and weights K11 Air K11 Air (LOFT) 1580 x 2300 x 1452 (closed)
  • Page 44 UV type 2 according to EN 60335-2-27-2021 (version according to type plate) Item number 44x SunFinity Body (UV-A) 3230355412 LED light source (body) 42x SunFinity Body (UV-B) 3230355413 6x SunFinity Facial (UV-A) 3230355414 LED light source (face) 3x SunFinity Facial (UV-B) 3230355415 With air conditioning: 6950W...
  • Page 45 UV type 3 according to EN 60335-2-27-2021 (version according to type plate) Item number 44x SunFinity Body (UV-A) 3230355412 LED light source (body) 42x SunFinity Body (UV-B) 3230355413 6x SunFinity Facial (UV-A) 3230355414 LED light source (face) 3x SunFinity Facial (UV-B) 3230355415 With air conditioning: 3950W...
  • Page 46 Dimensions & minimum distances K11 AIR 2300 mm 1411 mm 1452 mm Operating instructions | megaSun K11...
  • Page 47 K11 AIR LOFT 2300 mm 1510 mm Operating instructions | megaSun K11...
  • Page 48 Remarks Operating instructions | megaSun K11...
  • Page 49 Remarks Operating instructions | megaSun K11...
  • Page 50 Remarks Operating instructions | megaSun K11...
  • Page 52 Ringstraße 24-26 56307 Dernbach / Germany Phone: +49 (0) 26 89.94 26-0 Fax: +49 (0) 26 89.94 26-66 mail: megaSun@kbl.de www.megaSun.de...
