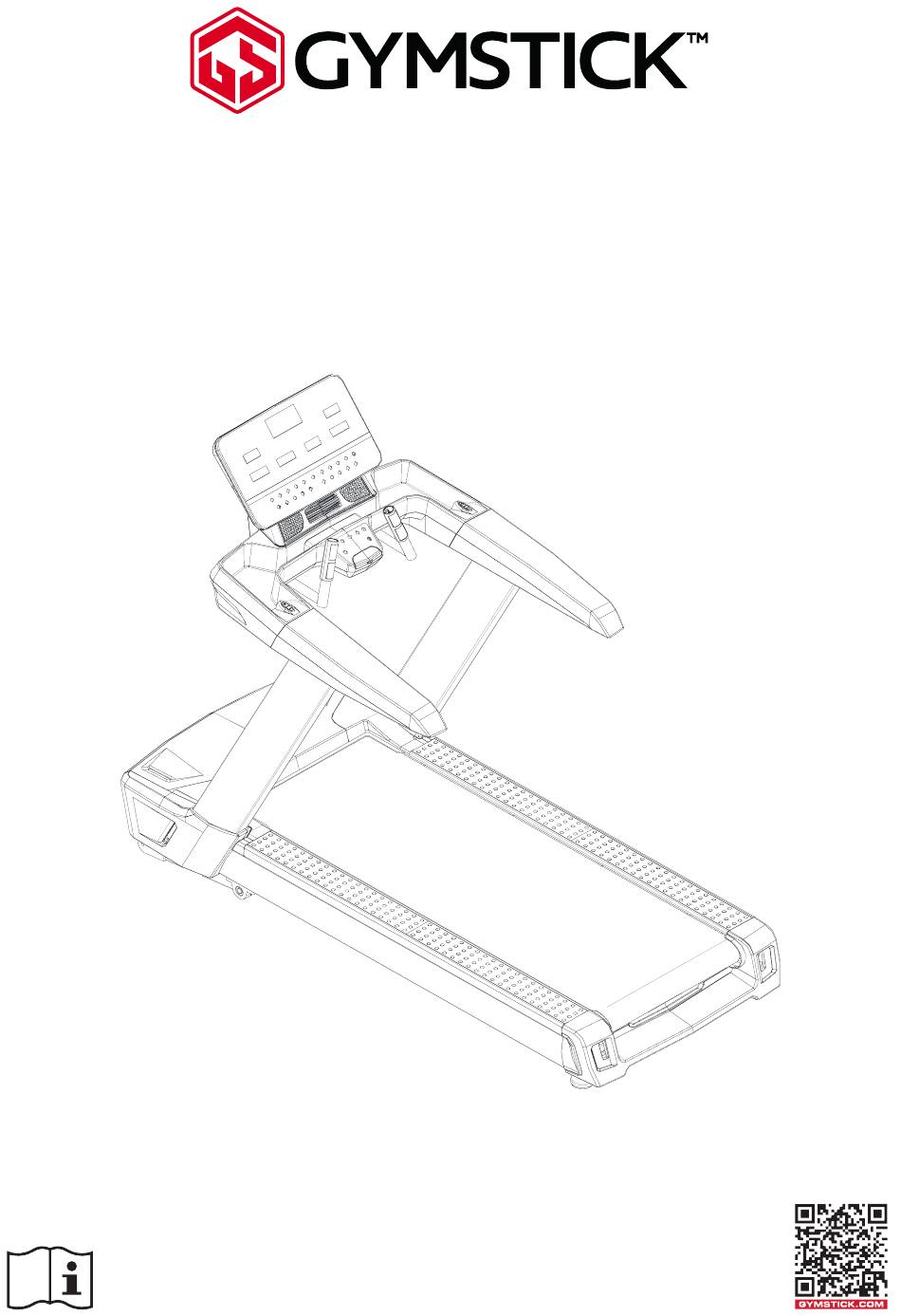

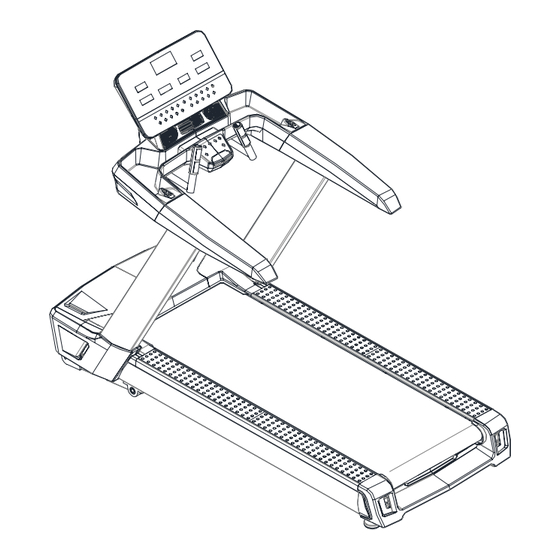

PRO20.0 TREADMILL
USER MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this owner's manual for future
reference. The specifications of this product may vary from this photo, subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO20.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gymstick PRO20.0

Summary of Contents for Gymstick PRO20.0

  • Page 1 PRO20.0 TREADMILL USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice.

  • Page 2: Table Of Contents

    BEFORE YOU BEGIN Thank you for choosing the Gymstick PRO20.0 Treadmill. We take great pride in producing this quality product and hope it will provide many hours of effective exercise to make you feel better, look better and enjoy life to its fullest.

  • Page 3: Safety Instructions

    • The maximum weight capacity for this product is 160kgs. WARNING! BEFORE BEGINNING THIS OR ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN FIRST. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. PRO20.0 TREADMILL...

  • Page 4: Exploded Drawing

    EXPLODED DRAWING PRO20.0 TREADMILL...

  • Page 5: Parts List

    　 upright post cover right 　 Rear cover 855×163×195 Rear cover accessory left 78×34×155 Rear cover accessory right 78×34×155 Item Description Specification foot pad Φ74×86×M12 PU hand bar left 　 PU hand bar right 　 PRO20.0 TREADMILL...
  • Page 6 M8×80 allen cylinder full thread screw M8×10 allen c.k.s full thread screw M8×20 allen cylinder full thread screw M8×15 Item Description Specification allen cylinder full thread screw M8×55 flat washer Φ8 spring washer Φ10 flat washer Φ10 PRO20.0 TREADMILL...
  • Page 7 5552EA/L-900mm communication wire 5552EA/L-1200mm communication wire 5552EA/L-800mm power connection wire L-800mm/1.5mm2/ red power connection wire L-800mm/1.5mm2/black wire (earth) L-200mm/1.5mm2 serrated lock washers Φ5 filter 10A(F7252) magnet ring φ35×φ22×t15.0 power connection wire L-450mm/1.5mm2/black power connection wire L-450mm/1.5mm2/red PRO20.0 TREADMILL...

  • Page 8: Assembly Instructions

    ● Check the following items are present. If any of the parts are missing, contact with the dealer. PACKAGE CONTENTS Platform frame Console frame LED-panel Console rear cover Upright posts Left upright post cover Right upright post cover PRO20.0 TREADMILL...
  • Page 9 ASSEMBLY INSTRUCTIONS PACKAGE CONTENTS PRO20.0 TREADMILL USER MANUAL M8X15 IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future Hardware bag User manual Silicone oil MAIN PARTS Motor cover Rear cover Motor Running belt Running board...
  • Page 10 ASSEMBLY INSTRUCTIONS HARDWARE BAG Philips C.K.S self-tapping screw Philips C.K.S full thread screw (ST4*15) 10 pcs (ST4*16) 4pcs Allen C.K.S. half thread screw Allen socket full thread screw (M8*20) 8pcs (M8*80) 8pcs T-shaped wrench L-shaped spanner Cross open wrench PRO20.0 TREADMILL...
  • Page 11 Handle bar Console Motor cover Upright post Running belt Side rail Rear cover Foldable Dimensions 2145*930*1680mm Running Area 1580*600mm Speed 1.0 - 25.0km/h Incline 0 - 15% Note: We reserve the right to amend the product without prior notice. PRO20.0 TREADMILL...
  • Page 12 Connect well the communication wire before upright post assembly. STEP 2 Connect communication wires (on the right) well with right upright post. Put the console onside the upright post and fix it with 4 pcs of M8*20 screws. PRO20.0 TREADMILL...
  • Page 13 Fix left upright post cover onto base frame with 2 pcs of M4 *15 screws and then connect to the motor cover with 2 pcs of St4*15 screws. It’s the same way to assembly right upright post cover. Fix the console back cover with 4 pcs of ST4*15 screws. Assembly is done. PRO20.0 TREADMILL...

  • Page 14: Moving The Treadmill

    After specifying the above points, grasp the end of the platform with both hands and lift the mach- ine up. Stand up straight and move the machine forward or backward slowly. After moving to the right place, allow deck to begin slowly dropping before releasing hands. PRO20.0 TREADMILL...

  • Page 15: Console Instructions

    “SPEED” window: display the value of speed. “TIME” window: display the value of time. “DISTANCE” window: display the value of distance and steps. “CALORIES” window: display the value of calories. “PULSE” window: display the value of pulse. “INCLINE”window: display the value of incline. PRO20.0 TREADMILL...
  • Page 16 2 seconds. All counters and setting value will be reset to original state. The treadmill is in positive timing mode of the manual program P0. 3. Press PROGRAM key to select program P0~P36/ U1~U3/ HRC1~HRC3/ FAT circularly. PRO20.0 TREADMILL...
  • Page 17 3.4 When the motor is in running state, press STOP button to stop the motor slowly till it stops smoothly. All settings will return to the default state. 3.5 In any state, the motor will stop urgently when the safety key is pulled out and E-07 display in the window with a buzzer sound. PRO20.0 TREADMILL...
  • Page 18 Only wear the headphone can hear the music.The USB interface beside the headphone jack is used to play music. The system will play music by reading data automaticlly after Inserting the multimedia product that’s with USB port. PRO20.0 TREADMILL...
  • Page 19 6. Incline won’t be controlled by the heart rate but by manual. The treadmill won’t be controlled by heartbeat for 1 minute before starting running, and only starts running according to the built-in formula after running for 1 minute. PRO20.0 TREADMILL...

  • Page 20: Program Speed/Incline Table

    PROGRAM SPEED/INCLINE TABLE (KMH) PRO20.0 TREADMILL...

  • Page 21: How To Use

    ”speed” - ”” key to run slowly. 5. During the running time, press the speed shortcut keys, you can quickly enter the running speed you need. 6. Press ”Stop” key to stop the motor at any time during running. PRO20.0 TREADMILL...
  • Page 22 This console has a built-in USB Port which enables charging many USB Devices. Please note! charging increases the power consumption and the power supplied from the USB port may not be enough to operate the device and charge it at the same time. Use supplied adapter (9V 1.3A). PRO20.0 TREADMILL...

  • Page 23: Important Electrical Information

    2. NEVER operate the treadmill using a generator or UPS power supply. 3. NEVER remove any cover without first disconnecting power. 4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for use outdoors, near pools or in any other high humidity environment PRO20.0 TREADMILL...

  • Page 24: Centering The Running Belt

    Continue this process until belt is at the correct tension. Make sure to adjust both sides equally to ensure correct belt alignment. Refer to figure C. PRO20.0 TREADMILL...

  • Page 25: Lubricating The Treadmill

    3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done on a regular basis. The following time table is recommended: Light user less than 3 hours/week every six months Medium user 3-5 hours/week every three months Heavy user more than 5 hours/week every two months PRO20.0 TREADMILL...

  • Page 26: Maintenance And Care

    Please keep the treadmill, especially the computer console, out of direct sunlight to prevent damage to the screen. STORAGE: Store the treadmill in a clean and dry indoor environment. Never leave or use the unit outdoors. Ensure the master power switch is off and the power cord is un-plugged from wall outlet. PRO20.0 TREADMILL...

  • Page 27: Troubleshooting

    PCB is loose tight well the screw Console short of display console defected change the console change the inverter or find inverter trip out at low voltage technician change the inverter or find heat sensor abnormal technician PRO20.0 TREADMILL...
  • Page 28 PRO20.0 TREADMILL...

  • Page 29: Implied Warranty

    • Normal wear and tear of the wear parts The device is intended for professional use. Manufactured for: Gymstick International Oy Ratavartijankatu 11 15170 Lahti, FINLAND Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuab- le materials which can be recycled.
