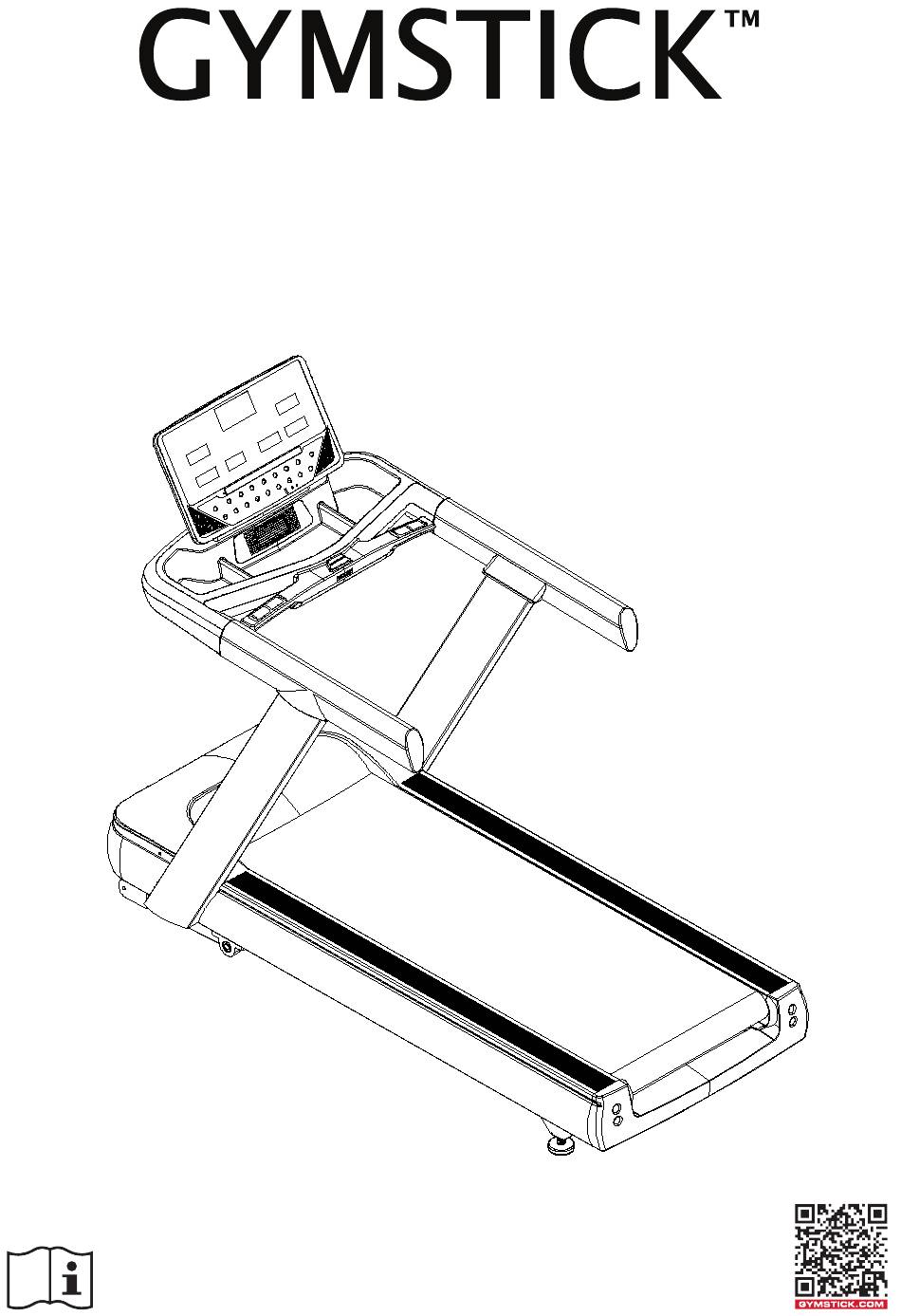

PRO10.0 TREADMILL
USER MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this owner's manual for future
reference. The specifications of this product may vary from this photo, subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO10.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Gymstick PRO10.0

Summary of Contents for Gymstick PRO10.0

  • Page 1 PRO10.0 TREADMILL USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice.

  • Page 2: Table Of Contents

    BEFORE YOU BEGIN Thank you for choosing the Gymstick PRO10.0 Treadmill. We take great pride in producing this quality product and hope it will provide many hours of effective exercise to make you feel better, look better and enjoy life to its fullest.

  • Page 3: Safety Instructions

    • The maximum weight capacity for this product is 150kgs. WARNING! BEFORE BEGINNING THIS OR ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN FIRST. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. PRO10.0 TREADMILL...

  • Page 4: Exploded Drawing

    EXPLODED DRAWING PRO10.0 TREADMILL...

  • Page 5: Parts List

    Allen C.K.S. halfthread screw M12×80×20 Flat washer Φ12 Hex self-locking nut M12 Powder metallurgy set Φ35×Φ30×Φ20×27 Allen socket full thread screw M10×35( Grade 8.8) Spring washer Φ10 Allen socket full thread screw M10×80 Falt washer Φ10 Allen C.K.S. full thread screw M10×40×20 PRO10.0 TREADMILL...
  • Page 6 Philips self-tapping screw ST4×15 Philips full thread screw M4×10(Steel nail) Allen C.K.S. full thread screw M8×25 Power connection wire L-450mm/1.5mm2/ Power connection wire L-450mm/1.5mm2/ Wire(ground) L-200mm/1.5mm Magnetic ring φ35×φ22×t15.0(Nickel) Flat washer Φ4.5×12×t1.0 Setting bolt spring Allen socket full thread screw M8×10 PRO10.0 TREADMILL...

  • Page 7: Assembly Instructions

    ●Check the following items are present. If any of the parts are missing, contact with the dealer. MAIN PARTS Platform frame Console Console center parts Hardware bag Left upright post Right upright post 说明书 User manual Left clamp ring Right clamp ring PRO10.0 TREADMILL...
  • Page 8 Side rail Front roller Rear roller Motor cover Running belt Running deck Rear cover Motor Motor belt Incline motor Silicone oil PRO10.0 TREADMILL...
  • Page 9 ASSEMBLY INSTRUCTIONS HARDWARE BAG Allen C.K.S. Full thread screw Allen C.K.S. Full thread screw M8*15 M8*25 T-shaped wrench L-Allen wrench L-Allen wrench 8x75 6x35x80 5x35x85 PRO10.0 TREADMILL...
  • Page 10 ASSEMBLY INSTRUCTIONS TREADMILL INTRODUCTION Console Handle bar Upright post Side rail Motor cover Running belt Incline frame Rear cover Feet pad Working voltage AC220V 50Hz Dimensions 2015*915*1595mm Running surface 1560*580mm Speed range 1.0－22.0Km/h PRO10.0 TREADMILL...
  • Page 11 ASSEMBLY INSTRUCTIONS TECHNICAL INFORMATION *WE RESERVE THE RIGHT TO AMEND THE PRODUCT WITHOUT PRIOR NOTICE. PRO10.0 TREADMILL...
  • Page 12 Insert the upright post into the both sides of the main frame with Allen C.K.S. half thread screws M8*20 and Allen C.K.S. full thread screw M8*20 (without lock now). Connect the signal wires of the upright posts and of the platform frame. (As shown) PRO10.0 TREADMILL...
  • Page 13 M8*20 and screws M8*20. Draw out the signal wire when install the clamp ring of the right upright post (with lock now). STEP 4 Put the handle bar in a horizontal line (as the direction of the figures), then connect the console and upright posts with 4 pcs of M8*20. (without lock now) PRO10.0 TREADMILL...
  • Page 14 M8*25 to tighten the console. (with lock now) STEP 6 Install the motor cover on the main frame with 4 pces of screws Fix the screws M4*16. Fix the sc- rews by tools, and then you are finished. PRO10.0 TREADMILL...

  • Page 15: Moving The Treadmill

    After specifying the above points, grasp the end of the platform with both hands and lift the mach- ine up. Stand up straight and move the machine forward or backward slowly. After moving to the right place, allow deck to begin slowly dropping before releasing hands. PRO10.0 TREADMILL...

  • Page 16: Console Instructions

    “Incline + ” key: Increase the incline by pressing this key. 2.9. “Incline –” key: Decrease the incline by pressing this key. 2.10. “QUICK INCLINE” key: In the running state, increase the incline directly by pressing the quick incline key 6, 9, 12. PRO10.0 TREADMILL...
  • Page 17 5.6. In any state, pull off the safety key and the screen shows “ E - 0 7 ” with promote sound. The treadmill stops running. 5.7. The controller always under the inspection. Treadmill will stop once the abnormal case happens. Window will show the ERR message and sound. PRO10.0 TREADMILL...
  • Page 18 1.0km / h, it will be 1.0 km / h when you decrease speed from 1.6 km /h to 1.0 km / h. 1.6. The inclination isn’t controlled by the heart rate, it can be adjusted manually. The initial speed is 1.0km/h, it can’t be adjusted speed by heat rate before one minute you are running. PRO10.0 TREADMILL...

  • Page 19: Troubleshoot

    Change the converter or ask profes- Low-voltage display sional repairman for help Change the converter or ask profes- Emergency shutdown display sional repairman for help Overload protection of motor Change the motor or converter PRO10.0 TREADMILL...

  • Page 20: Program Speed Table

    11.0 11.0 11.0 INCLINE SPEED INCLINE SPEED 12.0 12.0 12.0 12.0 12.0 12.0 12.0 12.0 INCLINE SPEED 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 INCLINE SPEED 11.0 11.0 11.0 11.0 INCLINE SPEED 11.0 11.0 11.0 11.0 INCLINE PRO10.0 TREADMILL...
  • Page 21 13.0 13.0 13.0 13.0 INCLINE SPEED 14.0 14.0 14.0 14.0 14.0 14.0 14.0 14.0 INCLINE SPEED 12.0 12.0 12.0 12.0 INCLINE SPEED 12.0 12.0 12.0 12.0 INCLINE SPEED 12.0 12.0 12.0 INCLINE SPEED 12.0 12.0 12.0 12.0 INCLINE PRO10.0 TREADMILL...

  • Page 22: Important Electrical Information

    2. NEVER operate the treadmill using a generator or UPS power supply. 3. NEVER remove any cover without first disconnecting power. 4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for use outdoors, near pools or in any other high humidity environment PRO10.0 TREADMILL...

  • Page 23: How To Use

    • A loose Running Belt will result in the runner sliding off when running, while too tight of a Running Belt will result in decrease to the motors performance and also create more friction between the roller and running belts. The most suitable tightness for the belts is pulled out 50-75mm from the Running Board. PRO10.0 TREADMILL...
  • Page 24 Continue this process until belt is at the correct tension. Make sure to adjust both sides equally to ensure correct belt alignment. Refer to figure C. PRO10.0 TREADMILL...

  • Page 25: Lubricating The Treadmill

    3-5 hours/week every three months Heavy user more than 5 hours/week every two months STORAGE Store you treadmill in a clean and dry environment. Ensure the master power switch is off and is un-plugged from the electrical wall outlet. PRO10.0 TREADMILL...

  • Page 26: Implied Warranty

    • Normal wear and tear of the wear parts The device is intended for professional and home use. Manufactured for: Gymstick International Oy Ratavartijankatu 11 15170 Lahti, FINLAND Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuab- le materials which can be recycled.
