Gymstick Walkingpad TM-WPAD Manual

Product Specifications

Product and Accessories

Please carefully check whether the contents of the package are complete and intact. If there is any missing or damaged, please contact the seller.

Function schematic diagram

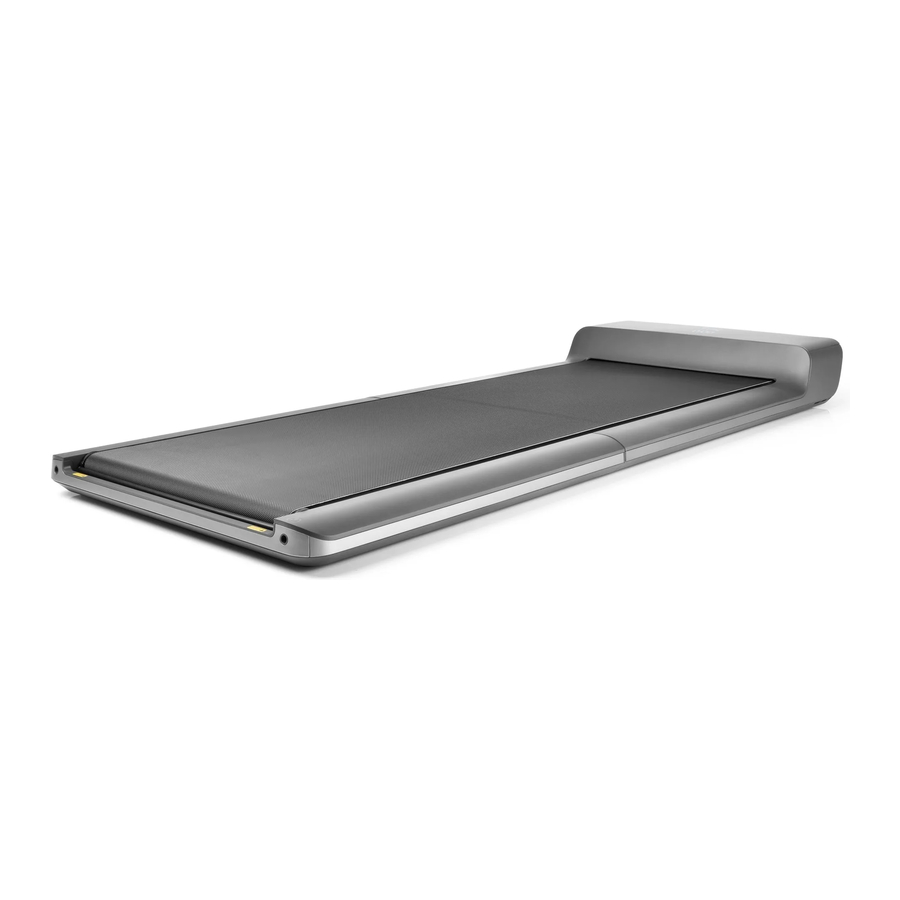

Product main body

Introduction of the function of the indicator panel

Walkingpad remote control

Guide for initial operation

1. Choose flat ground to place the WalkingPad. It is forbidden to place it on thick and soft cushion. Please note: Don't connect the power before the WalkingPadis fully unfolded.

2. Unfold the walkingpad slowly and press it down to completely flat.

3. Check and adjust the walking belt to make sure it's centered.

4. Connect the power cord and press the button to switch on.

5. Search ''Walkingpad" App from Apple Store or Google Play and complete installation.

6. Open the App, follow the prompts to set up the device.


7. Open the App, follow the prompts to set up the device.

8. Complete Novice Guide to unlock all Functions ( maximum speed 6 km/hr ). Otherwise the speed limit remains at 3 km/hr.

9. Start to use the WalkingPad.

10. If the belt deviates from the orbit in use, please adjust properly.
    SEE: Maintenance and service.

11. Short press: return to the previous mode. Long press: switch to Standby mode.


Learn to use WalkingPad

Mode instruction

Standby Mode
Light of the Standby mode is on; Motor and sensor stop responding.

Manual Mode
Light of the manual mode is on; Control the speed through the remote control or APP.

Automatic Mode
Light of the automatic mode is on; Speed is automatically controlled by intelligent algorithm.
It follows the speed of walking.

Instructions of the standby mode control

Standby Mode
The motor and sensor stop responding in this mode to prevent nonusers from accidentally triggering the WalkingPad.

Mode Switch
Short press: return to the previous mode.

Instructions of manual mode control (primary mode)

Manual Mode

In this mode, the speed of the WalkingPad can be controlled by the remote control. It is recommended that beginners use the manual mode first and then use the automatic mode after being skilled in using the WalkingPad. The manual mode is controlled by remote control by default, that is, the START/STOP button of the remote control is used to start or stop the WalkingPad, which can be modified in the client "Personalized".

Description of automatic mode control (advance mode)

Automatic mode

This is a challenging and higher-class mode, User can walk on the Walkingpad completely out of remote controller. We only recommend those who have good sports skills or walking-device experience to take the challenge.

Remote Controller Notice

If the remote controller has no response or you change a new one, the remote controller and walking device need to re-establish communication.

Remote control pairing method:
Restart the WalkingPad, press and hold down the mode switch button on the remote control immediately, hearing the sound of "Beep" indicates the success of pairing. Note: During the operation, the remote control should be close to the LED display panel of WalkingPad.

Error Warning Light

Error Warning Light on the display panel is off when Walkingpad works well. When error occurs, Error warning light turns on and shows its error code.

E01: Drive communication fault;
E02: Motor abnormalities;
E05: Overcurrent protection;
E06: Motor Protection;
E08: Sensor Fault;
E10: High temperature protection, automatic recovery after the end of countdown;
E11: Overload protection, please add lubricating oil, and resume automatically after countdown.

Maintenance and Service

Clean the walking machine

• Turn off the machine and unplug the power cord.
• Add several drops of detergent on cotton rag or towel. Don't pour the detergent on the belt directly, and don't use acid or corrosive cleaners.
• Wipe off dust and stains on the frame, front panel and belt. Do not wipe backside of the belt.
• After using for a period, dust and stains may appear on the back part, that is normal situation, and just clean them up.

Adjust the belt

• Press and hold both Mode Switch Button and Acceleration Button on the remote control over 3 seconds.
• Front panel shows "CALI" and the speed is 4 km/hr ( 2.5 mi/hr ).
• If belt deviates to the left: Turn the left adjusting screw for a half-circle clockwise.
• If belt deviates to the right: Turn the right adjusting screw for a half-circle clockwise.
• If belt is slipping: Turn both left and right adjusting screw for a half-circle clockwise at same time.
• Keep the machine running for 1-2 minutes and check whether it needs to readjust.

Lubricate the Belt

• Turn off the machine and unplug the power cord.
• Lift up the belt and apply silicone oil on the backside of the belt.
• Turn on the machine again
• Keep the machine running under 4 km/hr ( 2.5 mi/hr ) for 10-20 20 seconds.
• Only apply 5 ml ~ 10 ml lubricant oil each time, too much lubricant oil makes the belt become slipping.
• Apply for silicone oil once every 3 months.

Safety Notice

• To reduce the risk of personal injury, read and understand all the instructions before using this product.
• Electric shock hazard, where the appliance is used without the earth connection.
• Never leave the treadmill unattended. Unplug the unit from the power outlet when it is not in use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• This equipment is for household and office use only. Do not use the equipment outdoors.
• If you feel any chest pains, nausea, dizziness, or short of breath, you should stop exercising immediately and consult your physician before continuing.

Please keep a rear distance of 1000 mm or more.

Please choose sport shoes.

Please do not stand up on the walking machine when it is under auto calibration situation.

Please keep a distance of 500 mm or more for both sides.

Using on uneven ground is prohibited.

It is strictly prohibited to walk up and down the walking machine when running.

Anti-pinch.

Turn the power off before fold up the WalkingPad.

Prohibition of vertical placement.

Anti-involved, please do not trample.

Please pull out the plug when you are not using it.

Prohibition of lateral placement.

Please keep your sight horizontal to avoid dizziness.

More than one person on the Walkingpad is prohibited.

Using machine with pet is prohibited

Trampling the machine head is prohibited.

Children should be supervised to ensure that they do not play with the Walkingpad.

Walking sideways on the machine is prohibited.

Walking backwards on the machine is prohibited.

Please do not use the walking machine if you are aged people or pregnant women.
